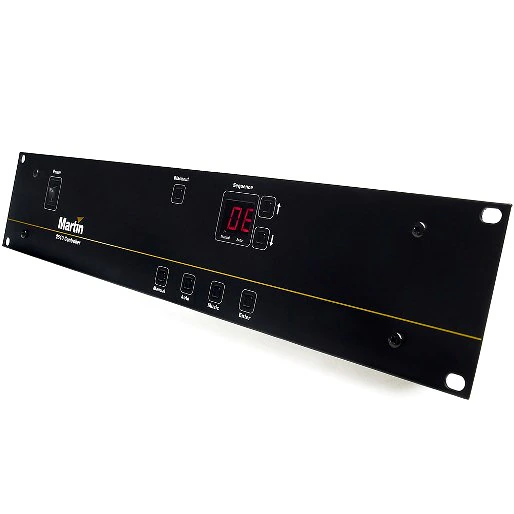

Powerful Playback Controller for an easy and inexpensive hardware based control solution.
- Record up to 512 DMX channels from LightJockey
- Easy playback with manual selection of sequences
- Up to 10 sub-lists of sequences
Gambar Lebih Besar
Fitur
- Blackout function
- Easy playback with manual selection of sequences
- Music input for triggering scenes
- Record up to 512 DMX channels from LightJockey
- Up to 10 sub-lists of sequences
Keterangan Lebih Lanjut
Physical
Length: 483 mm (19.1 in.)
Width: 65 mm 2.6 in.)
Height: 89 mm (3.5 in.)
Weight: 1.0 kg (2.2 lbs.)
Control/User Interface
Two-digit LED display
Menu up/down plus direct access function keys
Construction
Housing: Steel and aluminum
Finish: Electrostatic powder-coated
Installation
19-inch rackmount (2U)
Connections
AC power input: 1.5 m cable tail w/o power plug
Data input: RS-232 via DB9 connector
Data output: RS-485 via 3-pin XLR, polarity-reversing adapter required to convert to compliant DMX
Electrical
AC power: US model 100-120 V nominal, 50/60 Hz, EU model 208-240 V nominal, 50/60 Hz
Typical Power and Current
120 V, 60 Hz: 3 W, 0.1 A
230 V, 50 Hz: 3 W, 0.1 A
Approvals
EU safety: EN 60950
EU EMC: EN 55103-1, EN 55103-2
Ordering Information
2510 Controller, 512 DMX, 100-130 V: P/N 90716100
2510 Controller, 512 DMX, 220-240 V: P/N 90716000
Unduhan
Manuals
| Ukuran | |
MAC 600 E NT, MAC 2000 Performance, 2510 Controller- Manuel d'utilisation
versi C,
diperbarui: Okt 2020
|
843 KB |
|
|
162 KB |
|
|
154 KB |
|
|
223 KB |
versi C,
diperbarui: Okt 2020
Illustrations
| Ukuran | |
|
|
29,2 KB |
| 32 KB |
Compliances
| Ukuran | |
| 711 KB |
versi A,
diperbarui: Okt 2020
Software
| Ukuran | |
|
|
8,5 KB |
Service Notes
| Ukuran | |
|
|
22,5 KB |
|
|
2,41 MB |
Hints and Tips
| Ukuran | |
Error Codes Revealed
versi A,
diperbarui: Mei 2018
|
|
|
RS232 cable pinout
versi A,
diperbarui: Mei 2018
|
