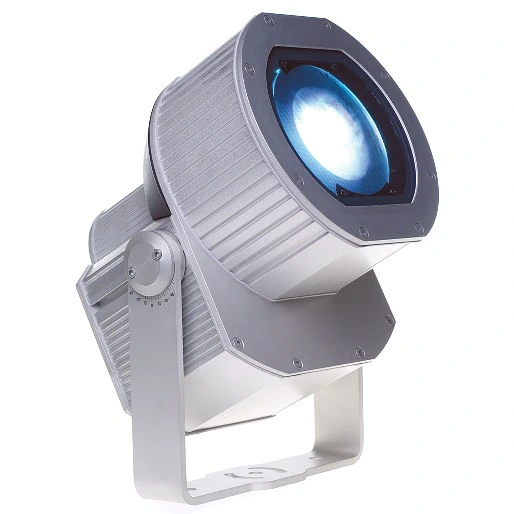

La serie Exterior 200 è una gamma di apparecchi illuminanti programmabili da 150 W, impermeabilizzati per l'illuminazione dinamica di facciate, strutture, specchi d'acqua e monumenti.
Immagini più grandi
Caratteristiche
- 150 W metal halide lamp
- CMY color mixing system
- Choice of optical systems: very narrow, narrow, medium, wide or very wide
- 0-100% intensity control
- High optical performance: uniform distribution of light and color
- Extensive range of optical accessories
- Ellipsoidal beam shaping options
- DMX, stand-alone, synchronized (host/client)
- On-board light sensor
- Weatherproof rating: IP65
Ulteriori dettagli
Physical Length: 301 mm Width: 310 mm Height: 402 mm Weight: 15 kg Length (VN and N models): 431 mm Width (VN and N models): 310 mm Height (VN and N models): 402 mm Weight (VN and N models): 16.6 kg
Dynamic Effects Color mixing: CMY Cyan: 0 - 100% Magenta: 0 - 100% Yellow: 0 - 100% Dimmer: 0 - 100%
Control and Programming Control options: DMX, stand-alone, synchronized (host/client) DMX channels: 7 Stand-alone trigger options: Internal timer and/or ambient light level Stand-alone memory: 20 scenes DMX address setting: Martin MUM™ application running on Windows PC Stand-alone and host/client programming: Martin MUM™ application running on Windows PC Protocol: USITT DMX512/1990 Receiver: RS-485
Lamp Type: 150 W metal halide Approved lamps: Philips CDM-SA/T 150, GE CMH 150, Osram HSD 150/70 Socket: G12 Control: Automatic and/or remote on/off
Construction Housing: Aluminum Finish: Clear anodized Mounting bracket: 8 mm anodized aluminum Front glass: 6 mm anti-reflection coated Protection rating: IP65
Installation Orientation: Any Mounting: Flat surface at any angle, pedestal or other suitable support Horizontal aiming: 90° Vertical aiming: 330° Minimum distance to combustible materials: 1 m Minimum distance to illuminated surfaces: 0.5 m
Connections Power cable entry: IP68 cable gland Power connection: 1.8 m cable tail Data cable entry: IP68 cable gland Data connection: 1.8 m cable tail with 3-pin XLR connectors
Electrical AC power: 208 V, 60 Hz / 230 V, 50 Hz / 245 V, 50 Hz / 277 V, 60 Hz Standby power: 27 W
Typical Power and Current 208 V, 60 Hz: 219 W, 1.1 A 230 V, 50 Hz: 200 W, 1.0 A 245 V, 50 Hz: 200 W, 0.9 A 277 V, 60 Hz: 200 W, 0.8 A Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Thermal Maximum ambient temperature (Ta max.): 40° C Minimum ambient temperature (Ta min.): -20° C, power must be maintained below 0° C Maximum surface temperature, steady state, Ta=40° C: 90° C Cooling: Convection
Typical Heat Output (calculated) 208 V, 60 Hz: 747 BTU/hr. 230 V, 50 Hz: 682 BTU/hr. 245 V, 50 Hz: 682 BTU/hr. 277 V, 60 Hz: 682 BTU/hr.
Approvals EU EMC: EN 55 015, EN 55 103-1, EN 61 547 EU safety: EN 60598-2-3, EN 60598-2-5 US safety: UL 1573, 4th Edition Canadian safety: CSA C22.2 No. 166
Included Items Philips CDM-SA/T 150 W lamp: 97010111
Accessories Elliptical beamshaper lens (gives 41° x 46° half-peak angle): 91610023 Snoot/barndoor kit: 91611031 Snoot/barndoor extensions kit: 91611032 Safety eyebolt: 91611239
Related Items Martin DABS1™ USB interface box incl. cables: 90758090
Spare Parts Philips CDM-SA/T 150 W lamp: 97010111 Fresnel Lens kit (contains optical components from Medium models): 91610022 Micro lens diffuser (contains optical components from Wide models): 91610024
Ordering Information Exterior 200 CMY, VN, 208 V, 60 Hz: 90509024 Exterior 200 CMY, VN, 230 V, 50 Hz: 90509020 Exterior 200 CMY, VN, 245 V, 50 Hz: 90509022 Exterior 200 CMY, VN, 277 V, 60 Hz: 90509026 Exterior 200 CMY, N, 208 V, 60 Hz: 90509044 Exterior 200 CMY, N, 230 V, 50 Hz: 90509040 Exterior 200 CMY, N, 245 V, 50 Hz: 90509042 Exterior 200 CMY, N, 277 V, 60 Hz: 90509046 Exterior 200 CMY, M, 208 V, 60 Hz: 90509048 Exterior 200 CMY, M, 230 V, 50 Hz: 90509045 Exterior 200 CMY, M, 245 V, 50 Hz: 90509047 Exterior 200 CMY, M, 277 V, 60 Hz: 90509043 Exterior 200 CMY, W 38°, 208 V, 60 Hz: 90509004 Exterior 200 CMY, W 38°, 230 V, 50 Hz: 90509000 Exterior 200 CMY, W 38°, 245 V, 50 Hz: 90509002 Exterior 200 CMY, W 38°, 277 V, 60 Hz: 90509005 Exterior 200 CMY, W 42°, 208 V, 60 Hz : 90509011 Exterior 200 CMY, W 42°, 230 V, 50 Hz: 90509009 Exterior 200 CMY, W 42°, 245 V, 50 Hz: 90509010 Exterior 200 CMY, W 42°, 277 V, 60 Hz: 90509003 Exterior 200 CMY, VW, 208 V, 60 Hz: 90509084 Exterior 200 CMY, VW, 230 V, 50 Hz: 90509080 Exterior 200 CMY, VW, 245 V, 50 Hz: 90509082 Exterior 200 CMY, VW, 277 V, 60 Hz: 90509086 VN = Very Narrow (Long Barrel), N = Narrow (Long Barrel), M = Medium, W = Wide, VW = Very Wide:
