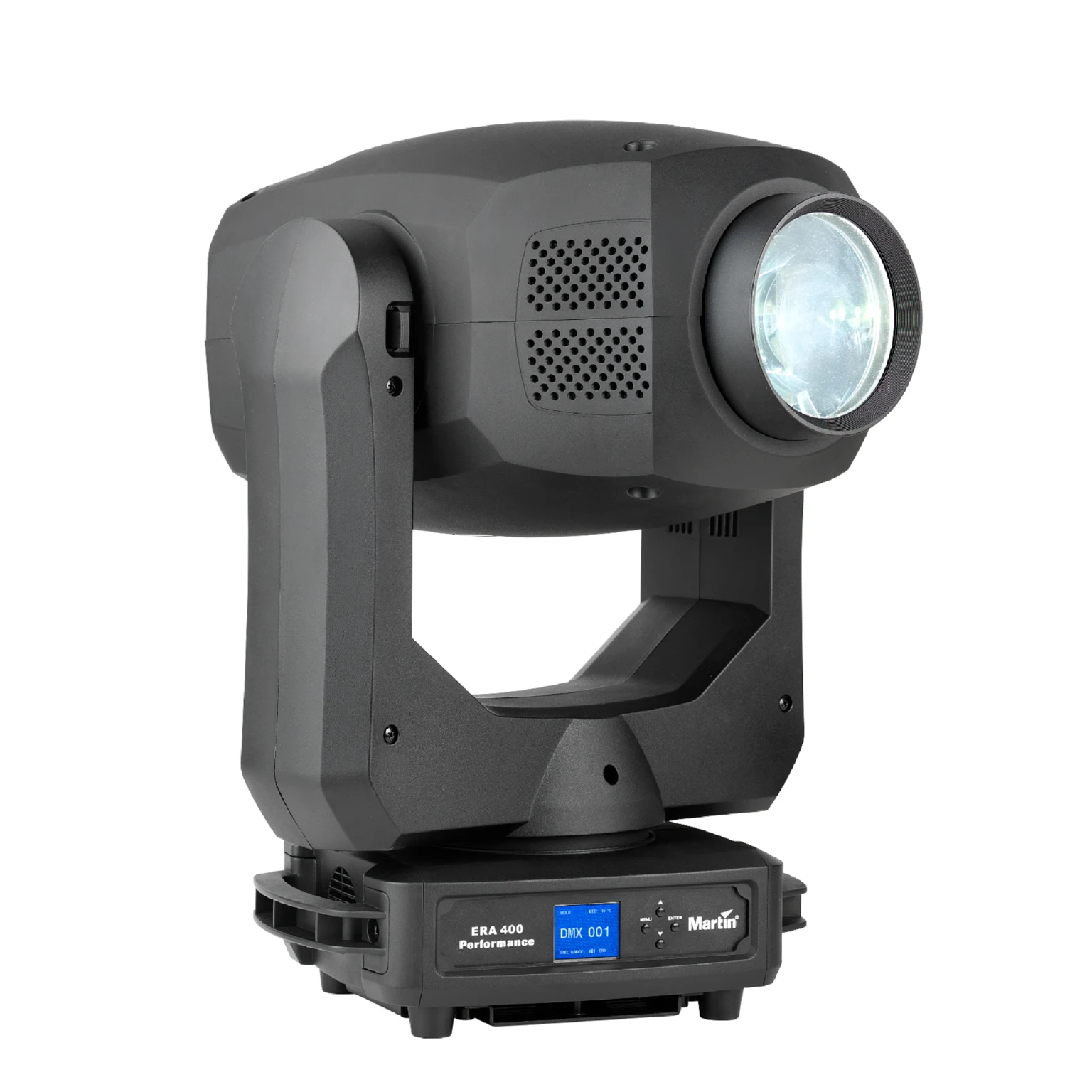

• Physical Length: 379 mm (14.9 in.) Width: 237 mm (9.3 in.) Height: 632 mm (24.9 in) Weight: 22.5 kg (49.6lbs)
  Dynamic Effects Color mixing: CMY, independently variable 0-100% Color wheel: 9 color filters plus open Rotating gobo wheel: 7 gobos plus open, wheel rotation, gobo rotation, indexing and shake Static gobo wheel: 9 gobos plus open, wheel indexing, rotation and shake Iris: 0-100% Zoom: Motorized Framing: Rotatable framing module, +/- 45°, with 4 individually controllable full framing blades with variable angle and position. Prism: Rotating/indexing three-facet prism Electronic dimming: 0 - 100%, four dimming curve options Electronic shutter effect: Strobe effect, pulse effects, instant open and blackout Pan: 540°, coarse & fine control and speed Tilt: 260°, coarse & fine control and speed Focus: Motorized
  Control and Programming Control options: DMX Setting and addressing: Control panel with backlit LCD display 16-bit control: Dimming, pan and tilt DMX channels: 30 DMX compliance: USITT DMX512/1990 RDM compliance: ANSI/ESTA E1.20 Transceiver: Opto-isolated RS-485
  Optics Front lens diameter: 110 mm Zoom range: 10° - 30° Light source: 300W LED engine Minimum LED lifetime: 20000 hours (to >70% luminous output)* Binning: Tight color and flux binning *Manufacturer´s figure obtained under manufacturer´s test conditions
  Photometric Data Light engine luminous output: 26500 lumens Fixture luminous output: 10000 lumens CRI (Color Rendering Index) : >70 Color Temperature: 6,500 K LED refresh rate : 1200 Hz

  * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

  Construction Housing: High-impact flame-retardant thermoplastic Color: Black Protection rating: IP 20
  Gobos Gobo diameter: 26.8 mm +/- 0.2 mm (1.1 in. +/- 0.008 in.) Maximum image diameter: 19.0 mm (0.75 in.) Gobo thickness, maximum: 1.1mm borosilicate glass
  Installation Mounting points: Two quarter-turn brackets for rigging Orientation: Any
• Connections AC power input: Neutrik powerCON TRUE1 DMX data in/out: 3-pin & 5-pin locking XLR
  Electrical

  AC power: 100-240 V AC nominal, 50/60 Hz
  Power supply unit: Auto-ranging electronic switch mode
  Typical half-cycle RMS inrush current at 230 V, 50 Hz: 6.0 A
  Power Factor: 0.99 @ 120 V , 0.97 @ 230 V
  Typical current draw: 3.8 A @ 120 V , 2.0 A @ 230 V *
  Power Consumption
  Typical: 455 W *
  Idle: 44 W *
  * Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
  Typical: full output white, no effects moving, regulated fan speed.
  Idle: no output, no effects moving, regulated fan speed.



  Thermal Cooling: Forced air (temperature regulated, low noise) Maximum ambient temperature (Ta max.): 40° C Minimum ambient temperature (Ta min.): 0° C Maximum surface temperature, steady state, at 40° C ambient: 70° C (158° F) Total heat dissipation (calculated, +/- 10%): 1550 BTU/hr.
  Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant Efficacy (max output): 23.4 lm/W LWR*: 444 lm/kg (202 lm/lb)

  LWR = Lumen-to-Weight Ratio

  Approvals Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1) EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55015; EN 55032; EN 55035; EN 61000-3-2,-3; EN 61547 US safety: UL 1573 US EMC: FCC Part 15 Class B Canadian safety: CSA C22.2 No. 166 Canadian EMC: ICES-003 Class B, ICES-005 Class B Australia/NZ: RCM
  Included Items 2 x Omega brackets for rigging clamp attachment
  Related Items Martin Companion Cable: P/N 91616091 Martin Companion Software Suite (including firmware uploader): .
  Accessories Cables, 16 A, for connection to power in chains:

  Power input cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797
  Power input cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786
  Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173
  Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174

  Cables, 16 A, for relaying power in chains:

  Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
  Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
  Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611786
  Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
  Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
  Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172

  Connectors:

  Power connector, cable mount, Neutrik TRUE1 NAC3FX-W (female): P/N 91611789
  Power connector, cable mount, Neutrik TRUE1 NAC3MX-W (male): P/N 91611788

  Installation hardware:

  G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
  Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
  Half-coupler Clamp: P/N 91602005
  Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
  Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

  Ordering Information Flightcase, two unit for ERA 400: P/N 91511217 Martin ERA 400 Performance CLD in cardboard box: P/N 9025121796
