THRILL Mini Profile
단종

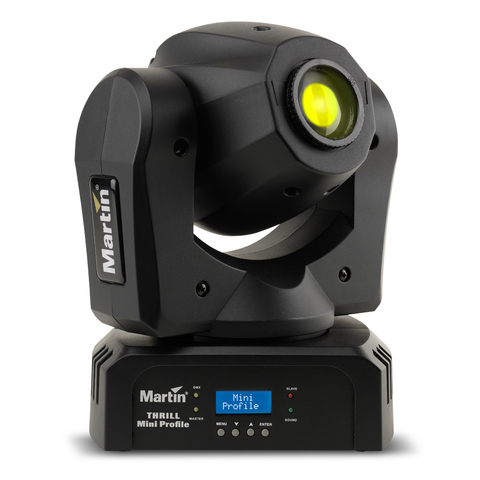

THRILL Mini Profile
큰 이미지

Imagine having the ability to integrate the moving beams of light, shine spotlights when and where you need them, or add the dramatic effect of colors and “gobos” flying around the audience during your live shows. Now you can with the THRILL Mini Profile, Martin professional’s smallest and most affordable moving head to date. THRILL Mini Profile has been designed to help DJs, musicians and entertainers take their performances to the next level–whether they’re in lounge bar or pub, to a wedding or high-energy dance floor.

The THRILL Mini Profile delivers super-sharp optics with over 800 lumens of output via an 18 watt white LED engine. Eight varied gobos and eight vibrant colors are available, with electronic strobe/dimming, manual focus and high-speed pan and tilt. The eye-catching effects can be synchronized to a music beat via audio trigger or run from the four pre-programmed shows. For more custom control options, it can also be operated via DMX.

Despite performing above its class, this ultra-compact fixture weighs only 4.3 kg (9.5 lb.), so it’s easy to transport and set up. Its lightweight design, rugged exterior, and compact form factor make THRILL Mini Profile the perfect fit for on-the-go entertainers, DJs, venues and home enthusiasts that require professional, lighting within their reach.

  • Portable, lightweight and easy to control
  • Profile-style fixture for gobo projection
  • Super sharp optics and powerful LED engine punch above its class
  • THE MOST VERSATILE LIGHT FOR THE MONEY

    Nothing says excitement to an audience more than a synchronized light show, and the THRILL Mini Profile is one of the most powerful and versatile light fixtures that you can find. From moving beams of light, to color washes, to strobe effects, you get it all with eight choices of color and eight different gobos to choose from. Shine a spotlight and so much more on your star performance with the THRILL Mini Profile.

  • LET THE MUSIC DO THE TALKING

    THRILL Mini Profile is a perfect fit for musicians, DJs and home enthusiasts who want to spend their time focused on entertaining, rather than setting up and controlling complex equipment. For a literal plug and play experience, THRILL Mini Profile features a built-in microphone—simply turn on the sound trigger and let the beat of your music THRILL your audience. In addition, the fixture has four, professionally-programmed shows that can be run either standalone or with daisy-chained units—no lighting experience required.

  • PORTABLE AND LIGHTWEIGHT

    Its portable and lightweight design makes it ideal for on-the-go entertainers and small venues working with limited stage footprints. It’s also perfect for rental companies who want to supply lighting solutions for smaller setups that do not have the budget for professional lighting operators.

  • EASY SETUP AND CONTROL

    The THRILL Mini Profile is easy to setup and control. Use it as a standalone unit for a dramatic moving head lighting effect or layout and daisy-chain together up to 32 fixtures together. Thrill the crowd with any of the 4 pre-programmed shows or get hands on and create your own custom light shows by integrating THRILL Mini Profile into a complete DMX system that includes a controller such as a Martin M-Touch, or our free M-PC control software.

featured content

THE MOST VERSATILE LIGHT FOR THE MONEY

Nothing says excitement to an audience more than a synchronized light show, and the THRILL Mini Profile is one of the most powerful and versatile light fixtures that you can find. From moving beams of light, to color washes, to strobe effects, you get it all with eight choices of color and eight different gobos to choose from. Shine a spotlight and so much more on your star performance with the THRILL Mini Profile.

featured content

LET THE MUSIC DO THE TALKING

THRILL Mini Profile is a perfect fit for musicians, DJs and home enthusiasts who want to spend their time focused on entertaining, rather than setting up and controlling complex equipment. For a literal plug and play experience, THRILL Mini Profile features a built-in microphone—simply turn on the sound trigger and let the beat of your music THRILL your audience. In addition, the fixture has four, professionally-programmed shows that can be run either standalone or with daisy-chained units—no lighting experience required.

featured content

PORTABLE AND LIGHTWEIGHT

Its portable and lightweight design makes it ideal for on-the-go entertainers and small venues working with limited stage footprints. It’s also perfect for rental companies who want to supply lighting solutions for smaller setups that do not have the budget for professional lighting operators.

featured content

EASY SETUP AND CONTROL

The THRILL Mini Profile is easy to setup and control. Use it as a standalone unit for a dramatic moving head lighting effect or layout and daisy-chain together up to 32 fixtures together. Thrill the crowd with any of the 4 pre-programmed shows or get hands on and create your own custom light shows by integrating THRILL Mini Profile into a complete DMX system that includes a controller such as a Martin M-Touch, or our free M-PC control software.

특징

  • 18 W, white LED engine
  • Dynamic effects include electronic dimming and strobe
  • 8 static gobos for mid-air break-ups and projections
  • 8 vibrant dichroic color filters
  • Ultra-smooth and fast pan/tilt
  • Easy to operate standalone sound-activated and master/client control methods
  • 4 professionally pre-programmed shows
  • DMX operable for individualized control and design
  • Includes bracket for hanging or surface mount
  • Common IEC power mains inlet - mains cable included

사양

  • Physical Length: 237 mm (9.3 in.) Width: 155 mm (6.1 in.) Height: 338 mm (13.3 in.) Height with hanging bracket: 362 mm (14.25 in.) Weight: 4.3 kg (9.5 lbs.)
    Dynamic Effects Strobe: Variable from 3 - 20 Hz, pulse effects and random strobe Color wheel: 8 colors plus open, variable and random rotation Static gobo wheel: 8 static gobos plus open, variable and random rotation (stamped) Electronic dimming: 0 - 100%, four dimming curve options Pan: 540° Tilt: 230°
    Control and Programming User interface: Control panel with backlit LCD display Control options: DMX, 4 stand-alone shows, master/client DMX channels: 10 Standalone trigger options: Sound-trigger, auto-run DMX compliance: ANSI E1.11 - USITT DMX512-A
    Optics Light source: 18 W white LED engine Minimum LED lifetime: 50,000 hours (to >70% luminous output)* Beam angle: 14° Focus : Manual *Figure obtained under manufacturer's test conditions.
    Construction Housing: High-impact flame-retardant thermoplastic on metal frame Color: Black Protection rating: IP20
    Installation Mounting points: Bracket for single rigging clamp, M12 or ½” Location: Dry location only Orientation: Standing or hanging Minimum distance to combustible materials: 100 mm (4 in.) Minimum distance to illuminated surfaces: 200 mm (8 in.) Minimum clearance around fan and air vents: 100 mm (4 in.)
    Connections AC power input: IEC male inlet, C14 DMX data in/out: 3-pin and 5-pin locking XLR
  • Electrical AC power: 100-240 V nominal, 50/60 Hz Fuse: T 2.0 A, 250 V Typical half-cycle RMS inrush current: 6.4 A
    Typical Power and Current 120 V, 60 Hz: 52 W, 0.9 A 230 V, 50 Hz: 50 W, 0.4 A Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
    Thermal Cooling: Forced air (temperature-regulated, low noise) Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 0° C (32° F) Total heat dissipation (calculated, +/- 10%): 180 BTU/hr. (at full intensity, full white)
    Approvals EU safety: EN 60598-2-17, EN 61000-3-3, EN 62471, EN 62493 EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61547 US safety: UL 1573 US EMC: CFR Title 47 Part 15 Class A Canadian safety: CSA C22.2 No. 166 Canadian EMC: ICES-003 Class A Australia/NZ: RCM (pending)
    Included Items

    Power cable, EU, IEC C13 female, molded Schuko, 1.9 m (6.3 ft.)
    Power cable, US, IEC C13 female, molded NEMA 5-15P, 1.9 m (6.3 ft.)
    Bracket and hardware for rigging clamp attachment

    Related Items RUSH® Software Uploader 1: P/N 91611399 Martin® M-Touch: P/N 90737040 Martin® M-Play: P/N 90737030
    Accessories Installation hardware:

    Super lightweight half coupler, black: P/N 91602018
    Safety cable, SWL 60 kg (132 lb.), BGV C1/ DGUV 17, black: P/N 91604006

    Ordering Information THRILL Mini Profile: P/N 90240090
