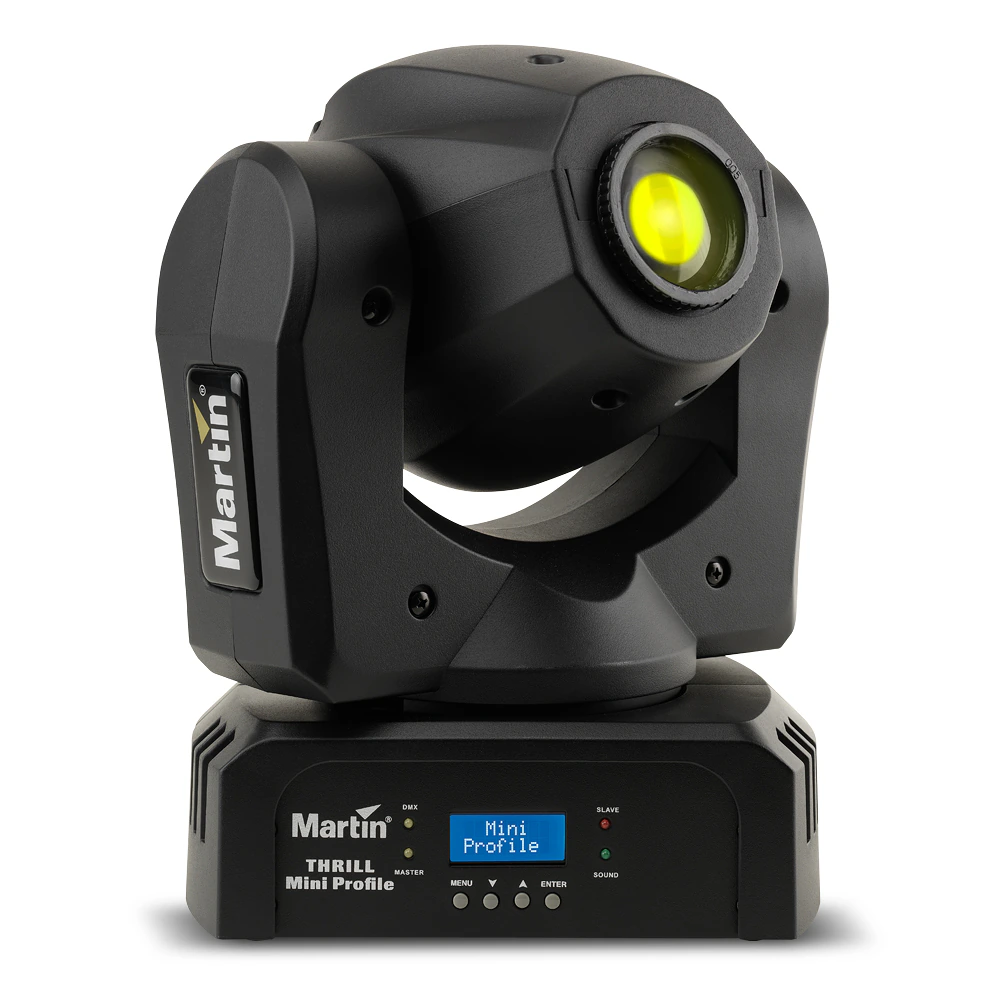

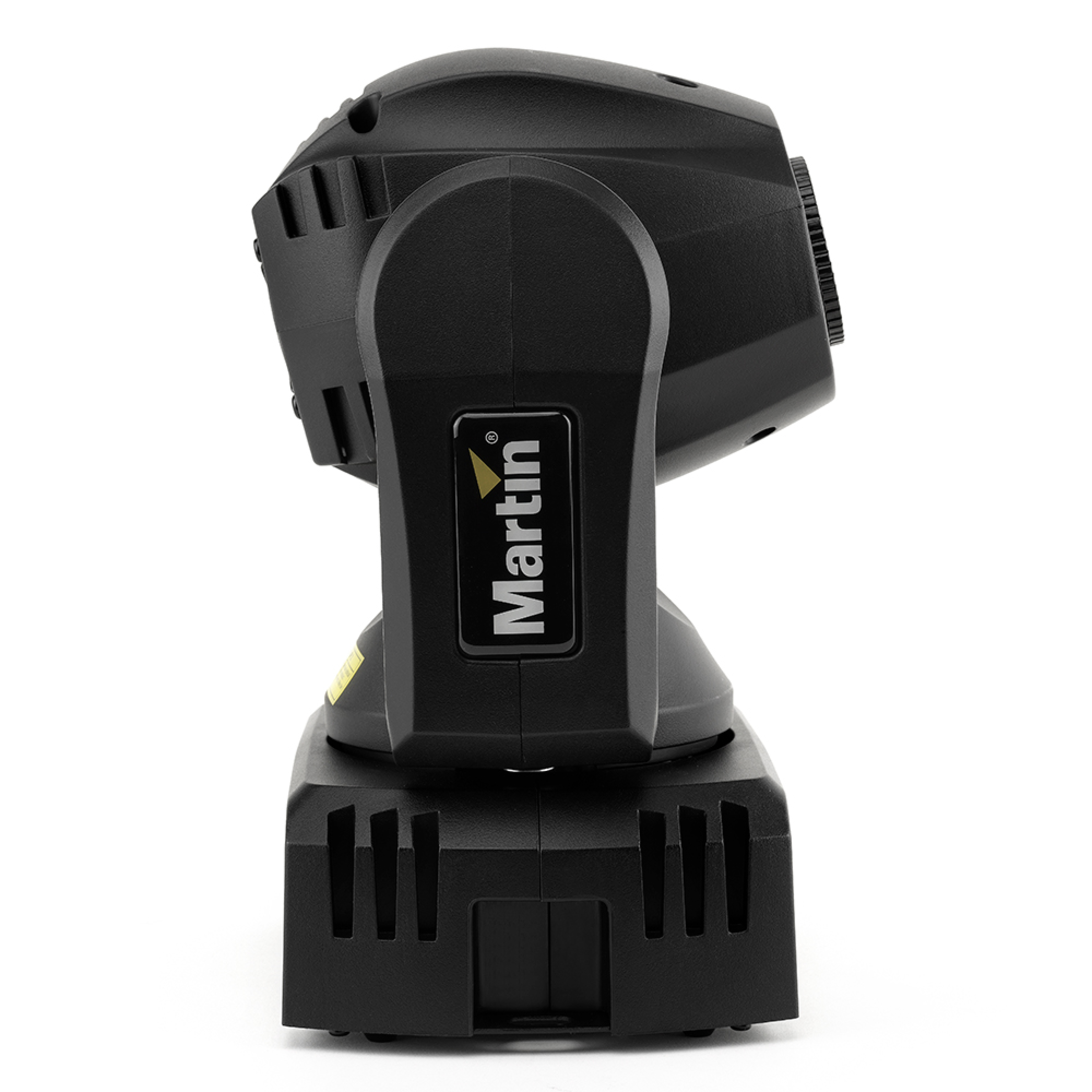

THRILL Mini Profile

Thrillminiprofile 2b clip 1000x1000 vert medium
Larger Images

Imagine having the ability to integrate the moving beams of light, shine spotlights when and where you need them, or add the dramatic effect of colors and “gobos” flying around the audience during your live shows. Now you can with the THRILL Mini Profile, Martin professional’s smallest and most affordable moving head to date. THRILL Mini Profile has been designed to help DJs, musicians and entertainers take their performances to the next level–whether they’re in lounge bar or pub, to a wedding or high-energy dance floor.

The THRILL Mini Profile delivers super-sharp optics with over 800 lumens of output via an 18 watt white LED engine. Eight varied gobos and eight vibrant colors are available, with electronic strobe/dimming, manual focus and high-speed pan and tilt. The eye-catching effects can be synchronized to a music beat via audio trigger or run from the four pre-programmed shows. For more custom control options, it can also be operated via DMX.

Despite performing above its class, this ultra-compact fixture weighs only 4.3 kg (9.5 lb.), so it’s easy to transport and set up. Its lightweight design, rugged exterior, and compact form factor make THRILL Mini Profile the perfect fit for on-the-go entertainers, DJs, venues and home enthusiasts that require professional, lighting within their reach.

  • Portable, lightweight and easy to control
  • Profile-style fixture for gobo projection
  • Super sharp optics and powerful LED engine punch above its class
  • THE MOST VERSATILE LIGHT FOR THE MONEY

    Nothing says excitement to an audience more than a synchronized light show, and the THRILL Mini Profile is one of the most powerful and versatile light fixtures that you can find. From moving beams of light, to color washes, to strobe effects, you get it all with eight choices of color and eight different gobos to choose from. Shine a spotlight and so much more on your star performance with the THRILL Mini Profile.

  • LET THE MUSIC DO THE TALKING

    THRILL Mini Profile is a perfect fit for musicians, DJs and home enthusiasts who want to spend their time focused on entertaining, rather than setting up and controlling complex equipment. For a literal plug and play experience, THRILL Mini Profile features a built-in microphone—simply turn on the sound trigger and let the beat of your music THRILL your audience. In addition, the fixture has four, professionally-programmed shows that can be run either standalone or with daisy-chained units—no lighting experience required.

  • PORTABLE AND LIGHTWEIGHT

    Its portable and lightweight design makes it ideal for on-the-go entertainers and small venues working with limited stage footprints. It’s also perfect for rental companies who want to supply lighting solutions for smaller setups that do not have the budget for professional lighting operators.

  • EASY SETUP AND CONTROL

    The THRILL Mini Profile is easy to setup and control. Use it as a standalone unit for a dramatic moving head lighting effect or layout and daisy-chain together up to 32 fixtures together. Thrill the crowd with any of the 4 pre-programmed shows or get hands on and create your own custom light shows by integrating THRILL Mini Profile into a complete DMX system that includes a controller such as a Martin M-Touch, or our free M-PC control software.

Videos

Features

  • 18 W, white LED engine
  • Dynamic effects include electronic dimming and strobe
  • 8 static gobos for mid-air break-ups and projections
  • 8 vibrant dichroic color filters
  • Ultra-smooth and fast pan/tilt
  • Easy to operate standalone sound-activated and master/slave control methods
  • 4 professionally pre-programmed shows
  • DMX operable for individualized control and design
  • Includes bracket for hanging or surface mount
  • Common IEC power mains inlet - mains cable included

Tech Specs

PhysicalLength: 237 mm (9.3 in.)Width: 155 mm (6.1 in.)Height: 338 mm (13.3 in.)Height with hanging bracket: 362 mm (14.25 in.)Weight: 4.3 kg (9.5 lbs.)
Dynamic EffectsColor wheel: 8 colors plus open, variable and random rotationStatic gobo wheel (stamped): 8 static gobos plus open, variable and random rotationStrobe: Variable from 3 - 20 Hz, pulse effects and random strobeElectronic dimming: 0 - 100%, four dimming curve optionsPan: 540°Tilt: 230°
Control and ProgrammingControl options: DMX, 4 stand-alone shows, master/slaveDMX channels: 10Stand-alone trigger: Sound-trigger, auto-runUser Interface: Control panel with backlit LCD displayDMX compliance: ANSI E1.11 - USITT DMX512-A
OpticsLight source: 18 W white LED engineMinimum LED lifetime: 50 000 hours (to >70% luminous output)*Beam angle: 14°Focus: Manual*Figure obtained under manufacturer's test conditions
ConstructionColor: BlackHousing: High-impact flame-retardant thermoplastic on metal frameIP rating: IP 20
InstallationOrientation: Standing or hangingMounting points: Bracket for single rigging clamp, M12 or ½”Location: Dry location onlyMinimum distance to illuminated surfaces: 200 mm (8 in.)Minimum distance to combustible materials: 100 mm (4 in.)Minimum clearance around fans and vents: 100 mm (4 in.)
ConnectionsAC power input: IEC male inlet, C14DMX data in/out: 3-pin and 5-pin locking XLR
ElectricalAC power: 100-240 V nominal, 50/60 HzFuse: Fuse: T 2.0 A, 250 V
Typical Power and Current120 V, 60 Hz: 52 W, 0.9 A230 V, 50 Hz: 50 W, 0.4 ATypical half-cycle RMS inrush current: 6.4 AMeasurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
ThermalCooling: Forced air (temperature-regulated, low noise)Maximum ambient temperature (Ta max.): 40° C (104° F)Minimum ambient temperature (Ta min.): 0° C (32° F)Total heat dissipation (calculated, +/- 10%, at full intensity, full white): 180 BTU/hr.
ApprovalsEU safety: EN 60598-2-17, EN 61000-3-3, EN 62471, EN 62493EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61547US safety: UL 1573US EMC: CFR Title 47 Part 15 Class ACanadian safety: CSA C22.2 No. 166Canadian EMC: ICES-003 Class AAustralia/NZ (pending): RCM

Included ItemsPower cable, EU, IEC C13 female, molded Schuko, 1.9 m (6.3 ft.)Power cable, US, IEC C13 female, molded NEMA 5-15P, 1.9 m (6.3 ft.)Bracket and hardware for rigging clamp attachment
AccessoriesInstallation hardwareSuper lightweight half coupler, black: P/N 91602018Safety cable, SWL 60 kg (132 lb.), BGV C1/ DGUV 17, black: P/N 91604006
Related ItemsRUSH® Software Uploader 1: P/N 91611399Martin® M-Touch: P/N 90737040Martin® M-Play: P/N 90737030
Ordering InformationTHRILL Mini Profile: P/N 90240090
