Length: 169 mm (6.8 in.) including cable glandWidth: 307 mm (12.1 in.)Height: 401 mm (16.8 in.)Weight: 7.6 kg (16.8 lbs.) including bracket
Dimming: 0 - 100% continuousColor fine-tuning: Continuously variable
Control options: DMX, stand-alone, synchronized (master/client)DMX channels: 1 or 3 depending on modeDMX address setting: PC with Martin MUM™ software and DABS1™ hardware interfaceStand-alone trigger options: Internal timer and/or ambient light levelStand-alone and master/client programming: PC with Martin MUM™ software and DABS1™ hardware interface26-bit control (internal): Single color intensityProtocol: USITT DMX512-AReceiver: RS-485Firmware update: Serial upload via DMX link
Light source: Cree XP-E high power emittersMinimum LED lifetime: 50 000 hours (to >70% luminous output)*Very Narrow (no diffuser), Narrow, Medium and Wide beam angles available
Color: Clear anodized, black or whiteHousing: Anodized aluminumMounting bracket: 8 mm (0.32 in.) anodized aluminumFront glass: 6 mm (0.24 in.) anti-reflection coatedProtection rating: IP65
Orientation: AnyMounting: Flat surface at any angle, pedestal or other suitable supportVertical aiming: 330°Minimum distance to illuminated surfaces: 0.1 m (0.33 ft.)
Power cable entry: IP68 cable glandPower connection: 1.8 m (5.9 ft.) cable tailData cable entry: IP68 cable glandData connection: 1.8 m (5.9 ft.) combined input + output cable tail
AC power: 100-240 V nominal, 50/60 HzStandby power: 13 WPower supply unit: Integrated, auto-sensing multi-voltageMain fuse: 2.5 AT (slow blow)
100 V, 50 Hz: 139 W, 1.4 A, PF 0.990100 V, 60 Hz: 139 W, 1.4 A, PF 0.989110 V, 60 Hz: 137 W, 1.3 A, PF 0.988120 V, 60 Hz: 136 W, 1.2 A, PF 0.986208 V, 60 Hz: 133 W, 0.7 A, PF 0.932230 V, 50 Hz: 132 W, 0.7 A, PF 0.925240 V, 50 Hz: 131 W, 0.7 A, PF 0.886
Cooling: ConvectionMaximum ambient temperature (Ta max.): 45° C (113° F)Minimum ambient temperature (Ta min.): -30° C (-22° F), power must be maintained below 0° C (33° F)Maximum surface temperature, steady state, at 40° C ambient:90° C (194° F)Total heat dissipation (calculated, +/- 10%): 480 BTU/hr.
EU safety: EN 60598-2-5 (EN 60598-1), IEC/EN 60825-1EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3US safety (US model): UL 1598Canadian safety (US model): CAN/CSA C.22.2 No. 250
Adjustable mounting yokeNarrow, Medium and Wide diffusersHard-wired 1.8 m (5.9 ft.) power and data in/out cable tails without connectorsUser manual
Diffuser, Exterior 400 Series, Narrow: P/N 41600122Diffuser, Exterior 400 Series, Medium: P/N 41600123Diffuser, Exterior 400 Series, Wide: P/N 41600124Diffuser, Exterior 400 Series, Narrow, Directional 15°x1°: P/N 41600156Diffuser, Exterior 400 Series, Medium, Directional 30°x3°: P/N 41600157Diffuser, Exterior 400 Series, Wide, Directional 60°x1°: P/N 41600158Diffuser, Exterior 400 Series, Wide, Directional 60°x10°: P/N 41600159Exterior 200 floor stand: P/N 91611305Safety eyebolt: P/N 916112393-pin male XLR connector, cable-type, IP65: P/N 916113063-pin female XLR connector, cable-type, IP65: P/N 91611307
Martin DABS1™ USB interface box incl. cables: P/N 90758090
2.5 AT main fuse: P/N 05020010

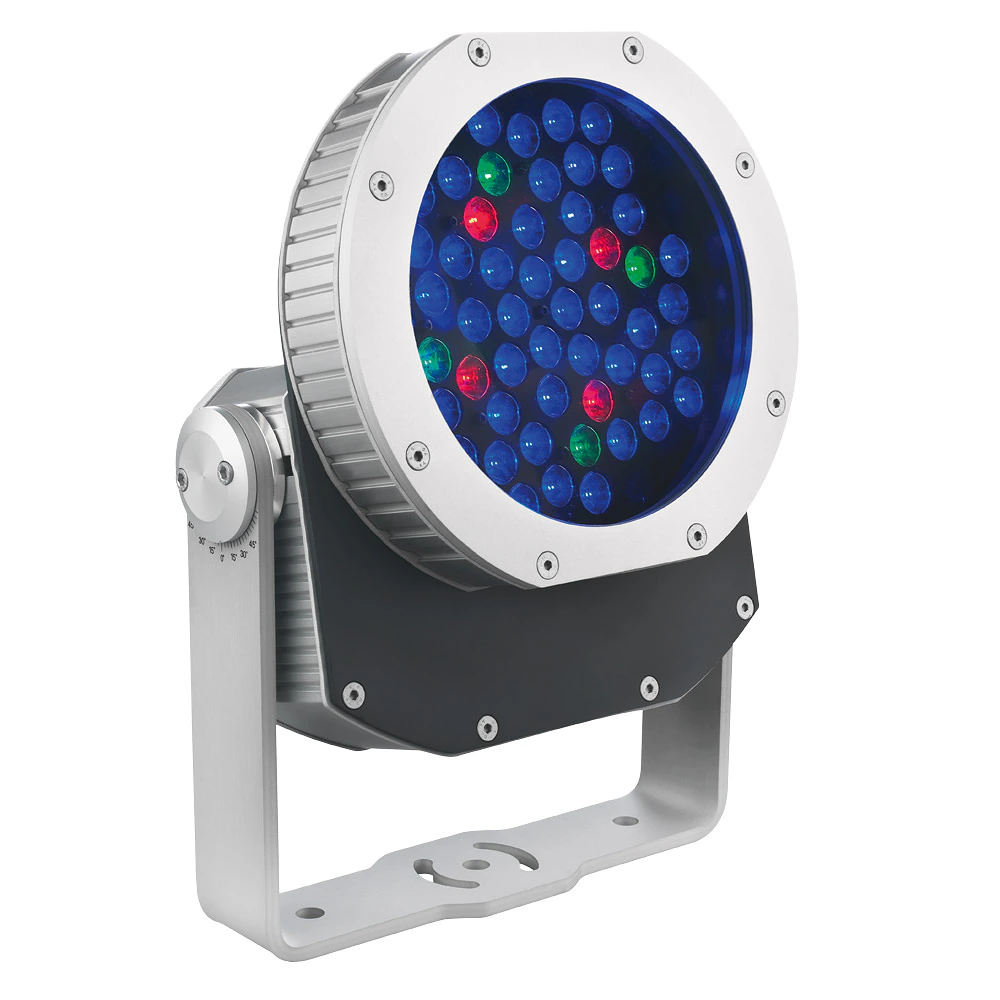

Exterior 430 Blue, EU Model, Aluminum: P/N 90545055
