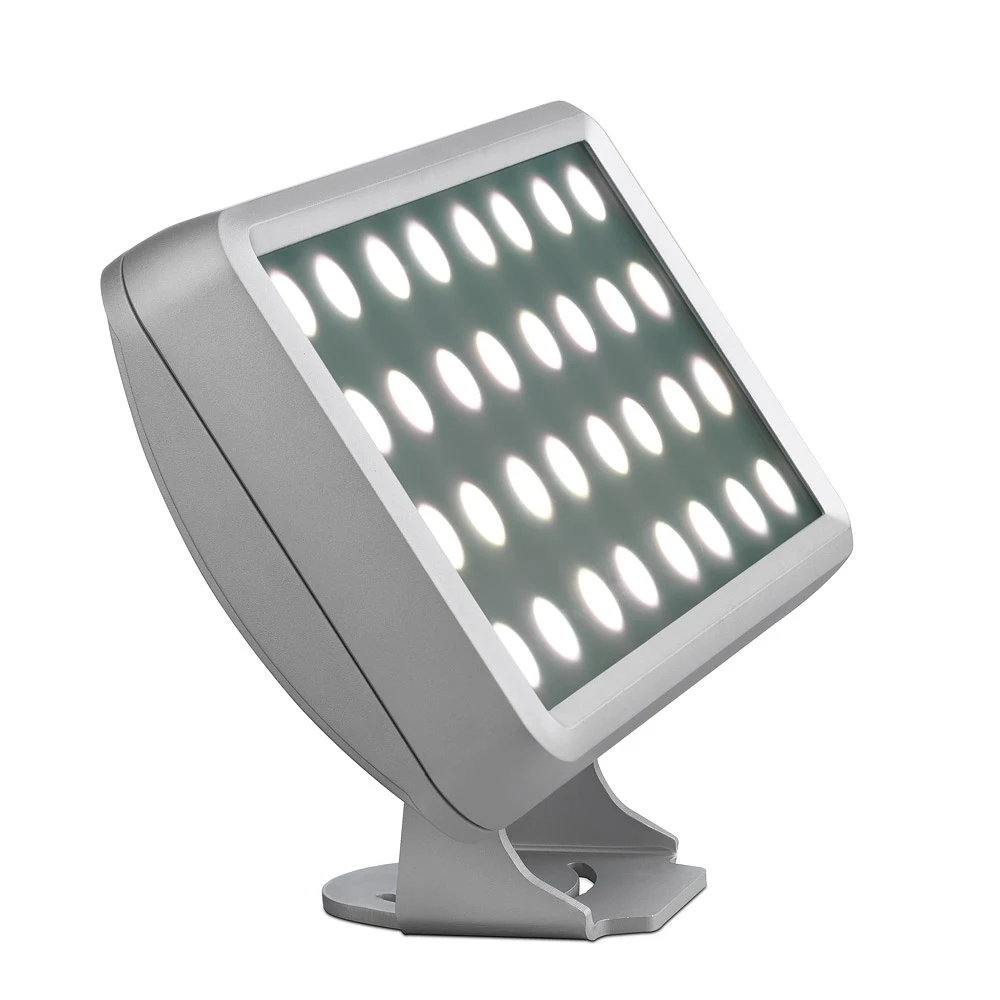

Tripix™ Wash fixtureWidth: 335 mm (13.2 in.)Height: 213 mm (8.4 in.) including mounting bracketDepth: 66 mm (2.6 in.) including mounting bracketWeight: 4.4 kg (9.7 lbs.)Martin™ IP66 PSU 240 W (replaces Tripix™ Power IP66)Length: 314 mm (12.4 in.)Width: 68 mm (2.7 in.)Height: 39 mm (1.6 in.)Weight: 1.5 kg (3.3 lbs.)
Color mixing: RGBRed: 0 - 100%Green: 0 - 100%Blue: 0 - 100%Color temperature control: 2 000 - 10 000 K continuous mixing
Color control modes: RGB (raw and calibrated), HSI (calibrated) HSIC (uncalibrated)Control options: DMX, stand-alone, synchronized (master/client)DMX channels: 3 or 4 depending on modeGrouped pixel control options: 1-, 2- and 4-pixel modesDMX address setting: Martin MUM™ application running on Windows PCDMX compliance: USITT DMX512-AReceiver: RS-485Firmware update: Serial upload via DMX link
Light source: RGB 3-in-1 LEDTotal LED power: 72 WBeam angle: Very narrow (no diffuser), narrow, medium and wide availableMinimum LED lifetime: 46 000 hours (to >70% luminous output)*
Housing: AluminumFinish: GreyFront cover: Toughened glassProtection rating: IP66
Orientation: AnyVertical aiming: 22° down, 141° upHorizontal aiming: +/- 90°
Tripix™ Power IP66 power input: Hard-wired (terminal block) via cable glandFixture-to-fixture power and data: IP66 13-pin DIN cable tail system
AC power: 100-240 V nominal, 50/60 Hz (input to Martin IP66 PSU 240 W)Power output: 48 V DC (output from Martin IP66 PSU 240 W)Standby power: <10 W
Cooling: ConvectionMaximum ambient temperature (Ta max.): 45° CMinimum ambient temperature (Ta min.): -30° CMaximum surface temperature, steady state, at 45° C ambient: Fixtures: 65° C, Tripix™ Power IP66: 80° C
Tripix Wash fixtureEU safety: EN 60598-1, EN 60598-2-1LED Safety: IEC 60825-1, IEC 62471EU EMC: EN 55 015, EN 55 103, EN 61 000-3US safety: UL 1598Canadian safety: CAN/CSA C.22.2 No. 250Martin IP66 PSU 240 W (replaces Tripix Power IP66)EU safety: EN 60598-2-6, EN 61347-2-13EU EMC: EN 55015, EN 61000-3-2, EN 61000-3-3, EN 61547US safety: UL 1012Canadian safety: CSA C22.2 No.107
Tripix™ Wash fixtureNarrow diffuser (installed)Safety leaflet
Martin™ IP66 PSU to Tripix™ System Power and Data Inserter Y-Cable: P/N 91611339Tripix™ DMX Input Adapter Cable, backwards compatible*:P/N 11880021Tripix™ DMX Output Adapter: P/N 91611338Tripix™ DMX Termination Plug: P/N 91611336Set of 4 Tripix™ Wash Diffusers, Narrow: P/N 91610038Set of 4 Tripix™ Wash Diffusers, Medium: P/N 91610036Set of 4 Tripix™ Wash Diffusers, Wide: P/N 91610037Tripix™ Cable Adapter extension connector set: P/N 916113230.5 m Tripix™ Extension Cable: P/N 916113351 m Tripix™ Extension Cable: P/N 916113345 m Tripix™ Extension Cable: P/N 91611333
Martin DABS1™ USB interface box incl. cables: P/N 90758090Martin Light Fox™ Controller: P/N 90734540Martin USB Tools™ Windows software package*
Tripix™ Wash front cover: P/N 41700031
Tripix™ Wash: P/N 90354540Martin™ IP66 PSU 240 W (replaces Tripix™ Power IP66):P/N 90760330
