Tripix Wash (discontinued)

Larger Images

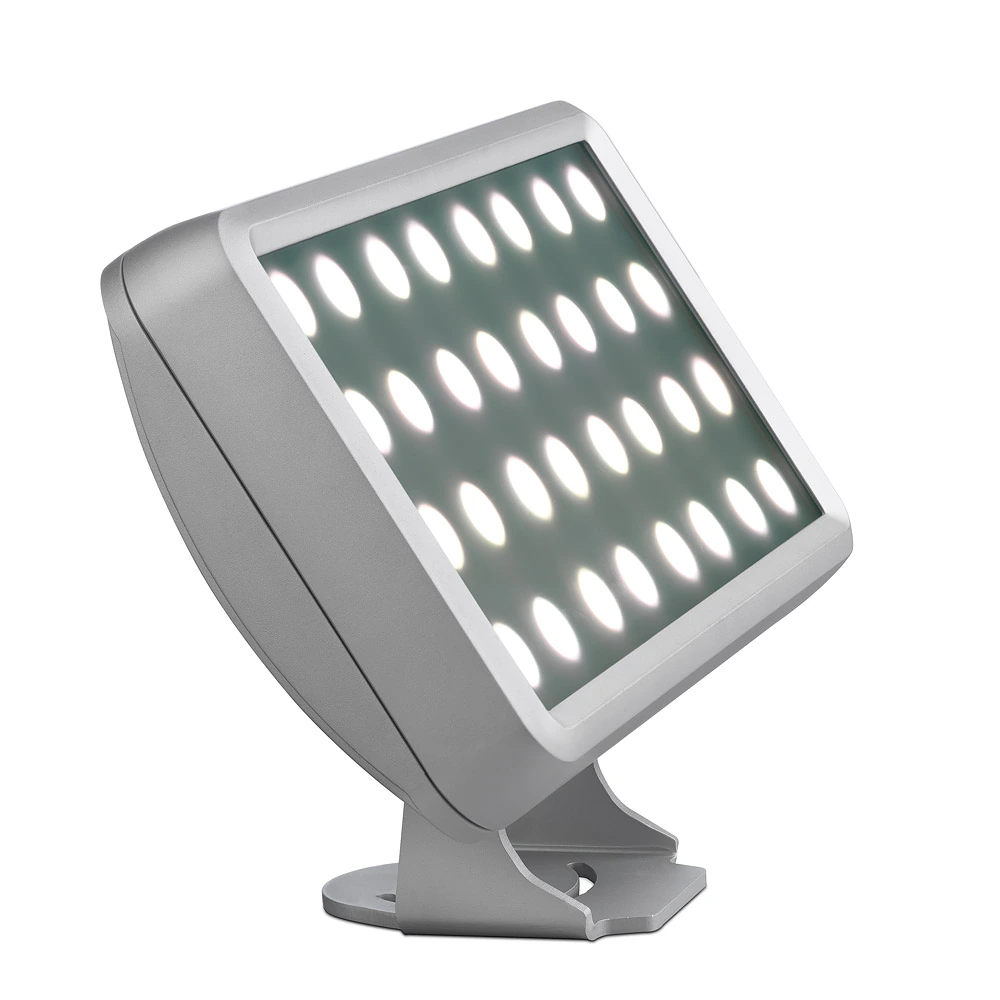

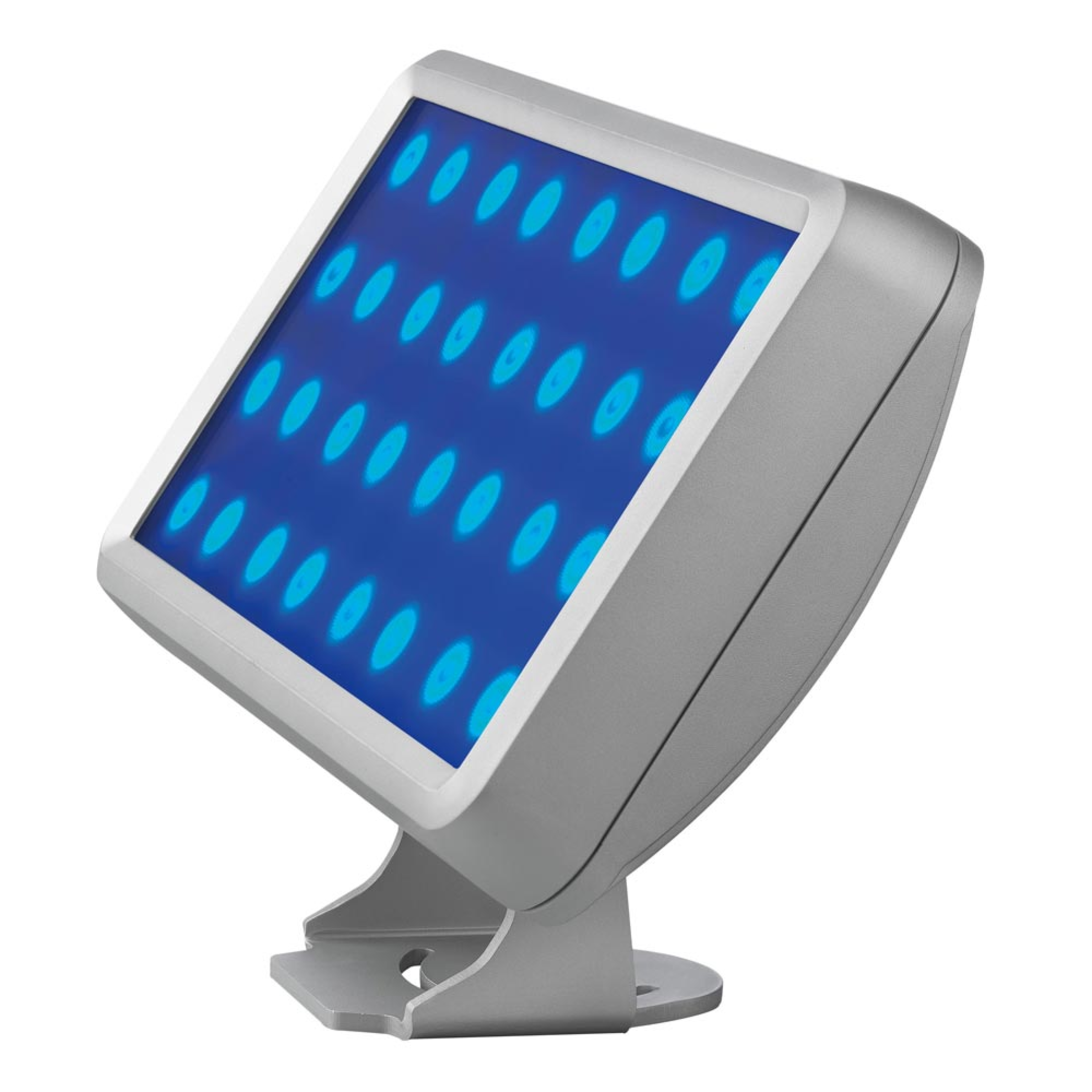

The Tripix Wash™ is an attractively designed IP66 rated fixture using tricolor LEDs for superior color mixing directly at the lens. The result is an absence of color shadows and a broad color palette, including stunning whites, subtle pastels and vibrant saturated colors.
The Tripix Range™ can be used in a variety of indoor and outdoor applications and installs in minutes using a slim IP66 cable connector.

  • Compact lighting fixture with full color mixing
  • No color separation or shadows due to use of premixed LED
  • Easy installation with cable daisy chain to IP rated power supply

Videos



Features

  • Uniform color mixing using powerful tricolor LEDs
  • No color separation or shadows
  • Easy to control: 64 built-in programs and auto addressing
  • Quick installation using IP66 cabling system
  • Very Narrow, Narrow, Medium and Wide beam angles

Specifications

PhysicalTripix™ Wash fixtureWidth: 335 mm (13.2 in.)Height: 213 mm (8.4 in.) including mounting bracketDepth: 66 mm (2.6 in.) including mounting bracketWeight: 4.4 kg (9.7 lbs.)Martin™ IP66 PSU 240 W (replaces Tripix™ Power IP66)Length: 314 mm (12.4 in.)Width: 68 mm (2.7 in.)Height: 39 mm (1.6 in.)Weight: 1.5 kg (3.3 lbs.)
Dynamic EffectsColor mixing: RGBRed: 0 - 100%Green: 0 - 100%Blue: 0 - 100%Color temperature control: 2 000 - 10 000 K continuous mixing
Control and ProgrammingColor control modes: RGB (raw and calibrated), HSI (calibrated) HSIC (uncalibrated)Control options: DMX, stand-alone, synchronized (master/client)DMX channels: 3 or 4 depending on modeGrouped pixel control options: 1-, 2- and 4-pixel modesDMX address setting: Martin MUM™ application running on Windows PCDMX compliance: USITT DMX512-AReceiver: RS-485Firmware update: Serial upload via DMX link
OpticsLight source: RGB 3-in-1 LEDTotal LED power: 72 WBeam angle: Very narrow (no diffuser), narrow, medium and wide availableMinimum LED lifetime: 46 000 hours (to >70% luminous output)**Figure obtained under manufacturer´s test conditions
ConstructionHousing: AluminumFinish: GreyFront cover: Toughened glassProtection rating: IP66
InstallationOrientation: AnyVertical aiming: 22° down, 141° upHorizontal aiming: +/- 90°
ConnectionsTripix™ Power IP66 power input: Hard-wired (terminal block) via cable glandFixture-to-fixture power and data: IP66 13-pin DIN cable tail system
ElectricalAC power: 100-240 V nominal, 50/60 Hz (input to Martin IP66 PSU 240 W)Power output: 48 V DC (output from Martin IP66 PSU 240 W)Standby power: <10 W
ThermalCooling: ConvectionMaximum ambient temperature (Ta max.): 45° CMinimum ambient temperature (Ta min.): -30° CMaximum surface temperature, steady state, at 45° C ambient: Fixtures: 65° C, Tripix™ Power IP66: 80° C
ApprovalsTripix Wash fixtureEU safety: EN 60598-1, EN 60598-2-1LED Safety: IEC 60825-1, IEC 62471EU EMC: EN 55 015, EN 55 103, EN 61 000-3US safety: UL 1598Canadian safety: CAN/CSA C.22.2 No. 250Martin IP66 PSU 240 W (replaces Tripix Power IP66)EU safety: EN 60598-2-6, EN 61347-2-13EU EMC: EN 55015, EN 61000-3-2, EN 61000-3-3, EN 61547US safety: UL 1012Canadian safety: CSA C22.2 No.107

Included ItemsTripix™ Wash fixtureNarrow diffuser (installed)Safety leaflet
AccessoriesMartin™ IP66 PSU to Tripix™ System Power and Data Inserter Y-Cable: P/N 91611339Tripix™ DMX Input Adapter Cable, backwards compatible*:P/N 11880021Tripix™ DMX Output Adapter: P/N 91611338Tripix™ DMX Termination Plug: P/N 91611336Set of 4 Tripix™ Wash Diffusers, Narrow: P/N 91610038Set of 4 Tripix™ Wash Diffusers, Medium: P/N 91610036Set of 4 Tripix™ Wash Diffusers, Wide: P/N 91610037Tripix™ Cable Adapter extension connector set: P/N 916113230.5 m Tripix™ Extension Cable: P/N 916113351 m Tripix™ Extension Cable: P/N 916113345 m Tripix™ Extension Cable: P/N 91611333*Introduced January 2013, replaces P/N 91611337
Related ItemsMartin DABS1™ USB interface box incl. cables: P/N 90758090Martin Light Fox™ Controller: P/N 90734540Martin USB Tools™ Windows software package**Available for download free of charge at www.martin.com
Spare PartsTripix™ Wash front cover: P/N 41700031
Ordering InformationTripix™ Wash: P/N 90354540Martin™ IP66 PSU 240 W (replaces Tripix™ Power IP66):P/N 90760330Custom colors available by special order - please contact your Martin distributor for details
