Martin Exterior Dot-HP Pro

Imagens Grandes

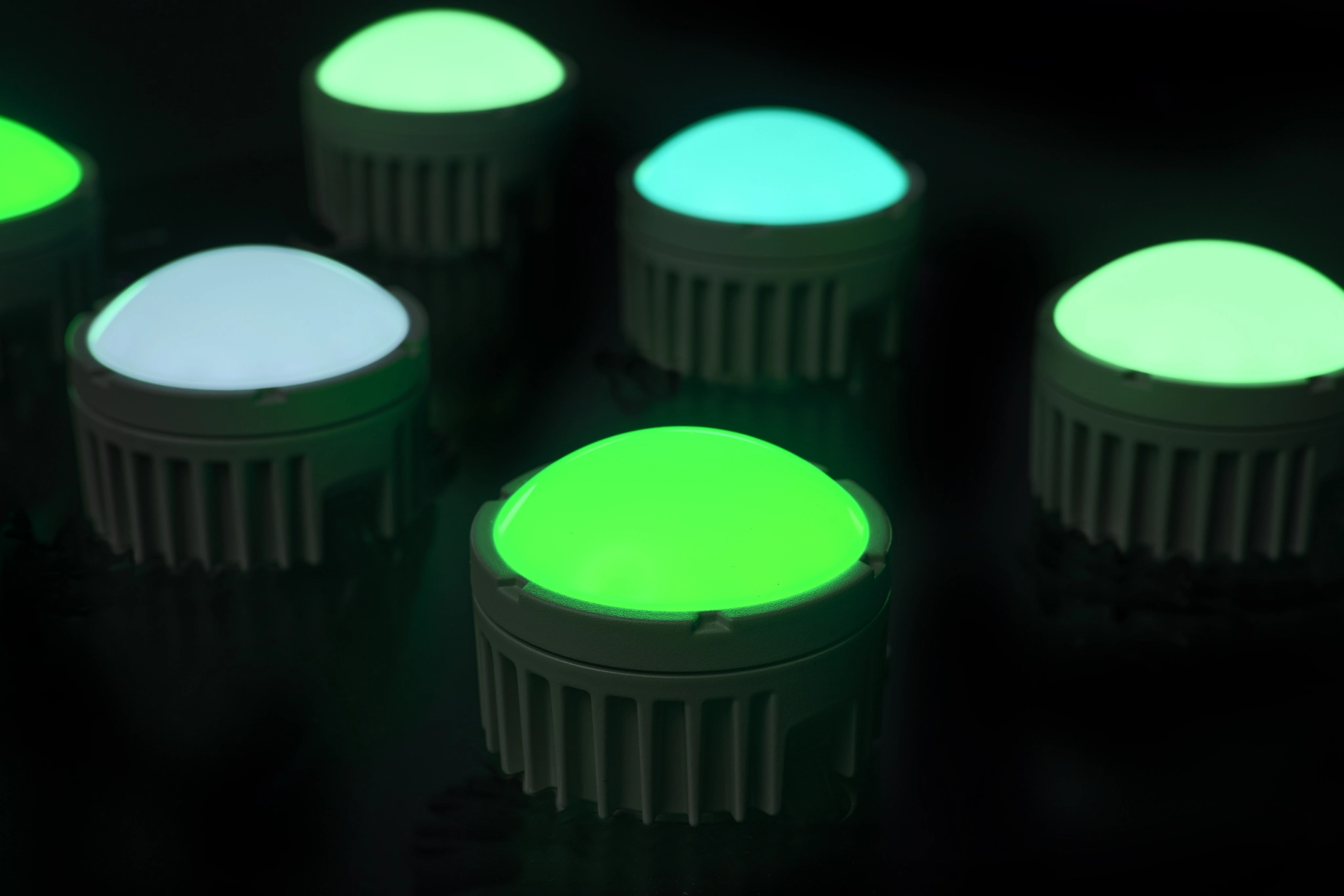

The Martin Exterior Dot-HP Pro is a bright, outdoor-rated RGBW Dot, designed to create media facades or perimeter lighting on large buildings and structures for long-distance viewing. Each Exterior Dot-HP Pro is color- and brightness-calibrated for superior visual consistency across the entire installation. Exterior Dot-HP Pro is controllable via Martin P3 System Controllers or any sACN or Art-Net-based controller.

It is the perfect solution for integrating LED video technology into façades, landmarks, architectural elements or any other structure, indoors or out. The Exterior Dot-HP Pro comes with hybrid In/Out connectors for easy and versatile installations options.

Mapping video onto Exterior Dot-HP Pro is quick and intuitive via the P3 System Controller, eliminating the need for complex setups and time-consuming addressing. Each Exterior Dot-HP Pro includes 16 RGBW LEDs with a total luminous intensity of 90 candela.

Unifying unparalleled performance, adaptability, and intuitive operation, the Exterior Dot Pro family doesn’t just enable lighting designers and professionals to surpass the limitations of traditional systems, it inspires them to redefine the boundaries of creative video design.

Vídeos

Recursos

Powerful, connector-based, direct-view LED lighting
Powered directly from Martin P3 PowerPort or third-party 48 VDC PSU
Large footprint of 78 mm diameter with clear front or diffused dome.
Perfect for façade or stage integration
Fully-weatherized housing (IP67, IK08 and C-5 High corrosion rating)
Martin P3/Art-Net/sACN compatible (automatic protocol detection)
Setup and Addressing via RDM over Art-Net or Martin P3
Real-time status feedback via RDM over Art-Net and Martin P3
Individually-controllable RGBW Dots
Color boost for bright, saturated, and mixed colors
Dedicated color temperature control channel
In-built Effect Macros (FX) for easy creation of stunning looks
Up to 68 Exterior Dot-HP Pro units can be daisy-chained
Reduced power mode for longer cable runs and fixture counts
Combined power/data input over single cable (hot-pluggable)
Superior color and brightness consistency based on factory calibration
Stand-alone programming with up to 20 scenes
Intuitive mapping and addressing via P3 System Controller family
Shipped in FSC-certified carboard packaging
5-year warranty

Especificações

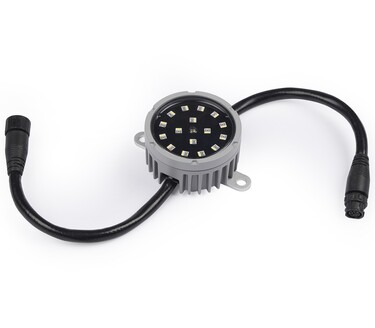

Physical Diameter: 78 mm (3.1 in.) Peso: 395 g (0.86 lbs.) Height with clear front: 43 mm (1.7 in.) Height with dome front: 58 mm (2.3 in.)

Control and Programming Control resolution: 16-bit (P3) or 8-bit (DMX) control of each color Control Protocols: Martin P3, Art-Net or sACN Protocol detection: Automatic Setting and addressing: Martin P3 System controller or RDM (over Art-Net)-compliant controller RDM: ANSI/ESTA E1.20 DMX Modes: Standard, Extended, Raw, RGB or PixelMap DMX channels: 6, 12, 4, 3, 48 Fixture Identification: User-settable ID number Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net sACN Compliance: ANSI E1.31 – 2016 Martin P3 Compliance: P3 System Controller Software 6.1.0 or newer Ethernet Transceiver: 10/100Mbit Firmware update: Via Ethernet using Martin Companion / P3 System Controller

Optics Light source: 16 x RGBW LEDs Minimum LED lifetime: 100,000 hours (to >70% luminous output)* LED manufacturer: LumiLeds Binning: Tight color and flux binning Calibration: Full Gamut Color Calibration
*Figure obtained under manufacturer's test conditions at Ta 25°C

Photometric Data CRI (Color Rendering Index) : > 70 Color resolution: 16 bits per color (64 bit per pixel) Dot pitch: 78 mm - 500 mm (fixture to fixture) Color Temperature: 2,000 – 12,000 K Viewing angle: (clear front) 150°, (diffused dome) 180°
* Dot pitch can be extended using hybrid DCE cables.

LUMINOUS INTENSITY Full@6500K: 106 cd (clear front), 56 cd (diffused dome)

LUMINOUS OUTPUT* Full@6500K: 295 lm (clear front), 190 lm (diffused dome) Red: 80 lm (clear front), 50 lm (diffused dome) Green: 255 lm (clear front), 170 lm (diffused dome) Blue: 45 lm (clear front), 30 lm (diffused dome)
* Dot pitch can be extended using hybrid DCE cables
** All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient

Construction Cor: Traffic Grey RAL 7042 (custom colors available on request) Surface treatment: Anodized and electrostatic powder- coated Base: Cast aluminum Protection rating: IP67 Effective Projected Area (EPA): 0.007 m² Impact resistance: IK08 Corrosion resistance: C5 High (ISO 12944-6) Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6), 0,7g RMS Random (IEC 60068-2-64), 3.0g (ANSI C136-31)

Installation Mounting points: Direct surface mount or accessory mounting plate Orientation: Any
Connections Input: DCE connector cable tail for Power & data input, IP67 Output: DCE connector cable tail for Power & data thru, IP67 Conexão: Hot-pluggable Max. daisy-chain (Full Mode) : 68 fixtures including 50 m cable Max. daisy-chain (Reduced power mode): 125 fixtures including 50 m cable
* Refer to system diagram for details on fixture run limitations.

Electrical Nominal input voltage: 48 VDC +/- 4% Power supply options: Martin P3 PowerPort 2000, P3 PowerPort 500 IP Install, P3 PowerPort 500 IP Rental, Martin DCE PSU 240 IP or generic 48 VDC PSU Surge protection: 4 KV

Power Consumption Maximum Power Consumption: 5.7 W in full power mode, 3.2 W in reduced power mode Idle: 1.8 W Hibernation: 1.5 W
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%. Idle: zero intensity. Hibernation: zero intensity, wake-up procedure to re-use fixture.

Thermal Cooling: Convection Total heat dissipation (calculated): 17 BTU/hr. Maximum ambient temperature (Ta max.): 55° C (131° F)* Minimum ambient temperature (Ta min.): -30° C (-22° F)
*Above 45°C, the fixture starts regulating output to protect from overheating.

Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant Packaging: FSC certified cardboard inlay and outer box Efficacy (max output): 50 lm/W LWR = Lumen-to-Weight Ratio: 630 lm/kg (290 lm/lb)

Approvals Global CB Certification/IECEE: EC 62368-1 EU safety: EN 62368-1, EMC: EN55035 EN 55032, EN 61000 3-2, EN 61000-3-3 US safety: UL 62368-1, EMC: FCC Part 15 Class B Canadian safety: CSA C22.2 No.62368-1, EMC: ICES-003 Class B Australia/NZ: RCM - Pending United Kingdom: UKCA India: BIS IS 10322(Part5/section7) - Pending

Related Items
P3-175 System Controller: P/N MAR-90721100
P3-275 System Controller: P/N MAR-90721101
P3-PC System Controller: Free download from www.martin.com
Martin Companion Free download from www.martin.com

Accessories

Power and Data Supply Units
P3 PowerPort 2000: P/N MAR-90721200
P3 PowerPort 500 IP Rental: P/N MAR-90721201
P3 PowerPort 500 IP Install: P/N MAR-90721202
DCE PSU 240 IP: P/N MAR-90721203

Data Splitter & Booster for Split or Extended Cable Runs
DCE DataSplitterBooster IP: P/N MAR-90721204

Pre-Assembled Hybrid DCE Cables
DC + Ethernet Cable DCE-DCE 1m: P/N MAR-91700100
DC + Ethernet Cable DCE-DCE 2.5m: P/N MAR-91700101
DC + Ethernet Cable DCE-DCE 5m: P/N MAR-91700102
DC + Ethernet Cable DCE-DCE 10m: P/N MAR-91700103
DC + Ethernet Cable DCE-DCE 25m: P/N MAR-91700104

Bulk Hybrid DCE Cables
DC + Ethernet Cable 100m: P/N MAR-91700105
DC + Ethernet Cable LSZH 100m: P/N MAR-91700106

Field-Installable DCE Connectors
Field-installable Connector DCE Male: P/N MAR-91700107
Field-installable Connector DCE Female: P/N MAR-91700108

Closing Caps for DCE Connectors
Closing Cap Male DCE Connector: P/N MAR-91700109
Closing Cap Female DCE Connector: P/N MAR-91700110

Hybrid DCE Adapters
DC + Ethernet Adapter DCE Male-Male: P/N MAR-91700111
DC + Ethernet Adapter DCE Female-Female: P/N MAR-91700112
DC + Ethernet Adapter EtherCON+Wires to DCE: P/N MAR-91700113
DC + Ethernet Adapter DCE to EtherCON: P/N MAR-91700114

Installation accessories
Dot-HP Pro Flange Bracket, 10 pcs: P/N MAR-90581012
Mounting Profile Kit, Dot-HP Pro: P/N 91606021

Tools
Exterior Multitool : P/N MAR-90590025

Ordering Information Exterior Dot-HP Pro V2 clear front, grey in cardboard box: P/N MAR-90581020 Exterior Dot-HP Pro V2 diffused dome, grey in cardboard box: P/N MAR-90581021
