Exterior Dot-HP Pro

Εξωτερικής Κατηγορίας, Υψηλής Ισχύος RGBW LED Δοχείο βάσης Σύνδεσμου

Exterior Dot-HP Pro
Μεγαλύτερες εικόνες

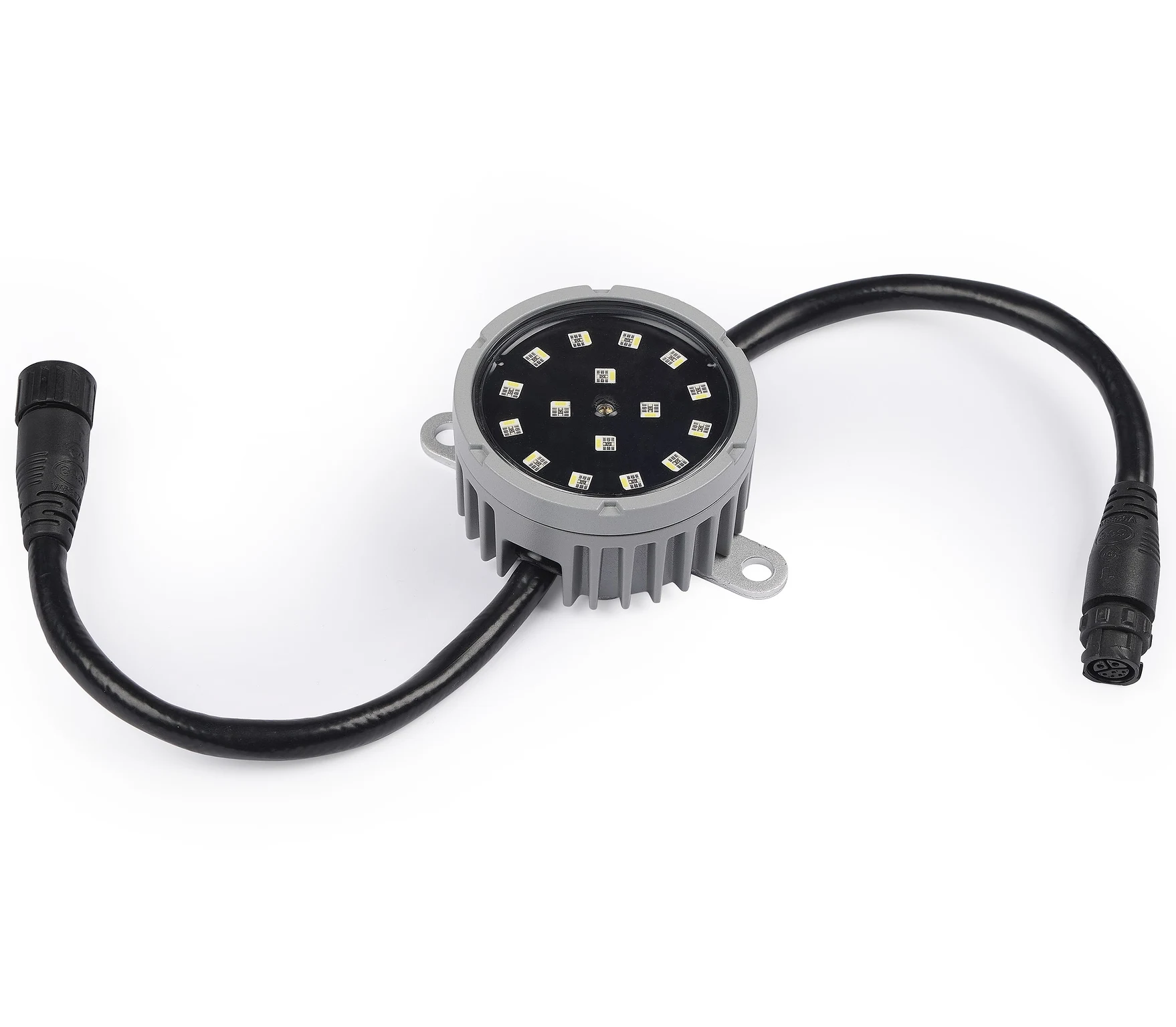

Το Martin Exterior Dot-HP Pro είναι ένα φωτεινό, εξωτερικό RGBW Dot, σχεδιασμένο για τη δημιουργία μέσων προσόψεων ή φωτισμού περιμέτρου σε μεγάλα κτίρια και κατασκευές για θέαση μεγάλης απόστασης. Κάθε Exterior Dot-HP Pro είναι χρωματικά και φωτεινά βαθμονομημένο για ανώτερη οπτική συνέπεια σε ολόκληρη την εγκατάσταση. Το Exterior Dot-HP Pro ελέγχεται μέσω Martin P3 System Controllers ή οποιουδήποτε ελεγκτή βασισμένου σε sACN ή Art-Net.

Είναι η τέλεια λύση για την ενσωμάτωση τεχνολογίας LED video σε προσόψεις, ορόσημα, αρχιτεκτονικά στοιχεία ή οποιαδήποτε άλλη κατασκευή, εσωτερικά ή εξωτερικά. Το Exterior Dot-HP Pro έρχεται με υβριδικούς συνδέσμους In/Out για εύκολες και ευέλικτες επιλογές εγκατάστασης.

Η αντιστοίχιση video στο Exterior Dot-HP Pro είναι γρήγορη και διαισθητική μέσω του P3 System Controller, εξαλείφοντας την ανάγκη για σύνθετες ρυθμίσεις και χρονοβόρες διευθυνσιοδοτήσεις. Κάθε Exterior Dot-HP Pro περιλαμβάνει 16 RGBW LED με συνολική φωτεινή ένταση 90 candela.

Συνδυάζοντας άνισο επίδοση, προσαρμοστικότητα και διαισθητική λειτουργία, η οικογένεια Exterior Dot Pro δεν απλώς ενεργοποιεί τους σχεδιαστές και τους επαγγελματίες φωτισμού να ξεperάσουν τους περιορισμούς των παραδοσιακών συστημάτων, αλλά τους εμπνέει να αναοριστούν τα όρια της δημιουργικής σχεδίασης video.

Βίντεο





Χαρακτηριστικά

  • Ισχυρός, βασισμένος σε συνδέσμους, φωτισμός LED με άμεση προβολή
  • Τροφοδοσία απευθείας από Martin P3 PowerPort ή τρίτης εταιρείας 48 VDC PSU
  • Μεγάλο μέγεθος διαμέτρου 78 mm με διαφανό ή διάχυτο θόλο.
  • Ιδανικό για ενσωμάτωση προσόψεως ή σκηνής
  • Πλήρως αδιάβροχη κατασκευή (IP67, IK08 και C-5 Υψηλή αντίσταση στη διάβρωση)
  • Συμβατό με Martin P3/Art-Net/sACN (αυτόματη ανίχνευση πρωτοκόλλου)
  • Ρύθμιση και αναφορά διευθύνσεων μέσω RDM σε Art-Net ή Martin P3
  • Ανάδραση κατάστασης σε πραγματικό χρόνο μέσω RDM σε Art-Net και Martin P3
  • Ξεχωριστά ελεγχόμενα RGBW Dots
  • Ενίσχυση χρώματος για φωτεινά, κορεσμένα και μικτά χρώματα
  • Αποκλειστικό κανάλι ελέγχου θερμοκρασίας χρώματος
  • Ενσωματωμένα Effect Macros (FX) για εύκολη δημιουργία εντυπωσιακών εμφανίσεων
  • Έως 68 μονάδες Exterior Dot-HP Pro μπορούν να συνδεθούν σε σειρά
  • Λειτουργία μειωμένης ισχύος για μεγαλύτερα μήκη καλωδίων και αριθμό φωτιστικών
  • Συνδυασμένη είσοδος ισχύος/δεδομένων σε ένα μόνο καλώδιο (hot-pluggable)
  • Ανώτερη συνέπεια χρώματος και φωτεινότητας βάσει βαθμονόμησης εργοστασίου
  • Ανεξάρτητος προγραμματισμός με έως 20 σκηνές
  • Διαισθητική χαρτογραφία και διευθυνσιοδότηση μέσω της οικογένειας P3 System Controller
  • Παράδοση σε χάρτινη συσκευασία πιστοποιημένη FSC
  • Εγγύηση 5 ετών

Προδιαγραφές

  • Physical Diameter: 78 mm (3.1 in.) Weight: 395 g (0.86 lbs.) Height with clear front: 43 mm (1.7 in.) Height with dome front: 58 mm (2.3 in.)
    Control and Programming Control resolution: 16-bit (P3) or 8-bit (DMX) control of each color Control Protocols: Martin P3, Art-Net or sACN Protocol detection: Automatic Setting and addressing: Martin P3 System controller or RDM (over Art-Net)-compliant controller RDM: ANSI/ESTA E1.20 DMX Modes: Standard, Extended, Raw, RGB or PixelMap DMX channels: 6, 12, 4, 3, 48 Fixture Identification: User-settable ID number Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net sACN Compliance: ANSI E1.31 – 2016 Martin P3 Compliance: P3 System Controller Software 6.1.0 or newer Ethernet Transceiver: 10/100Mbit Firmware update: Via Ethernet using Martin Companion / P3 System Controller
    Optics Light source: 16 x RGBW LEDs Minimum LED lifetime: 100,000 hours (to >70% luminous output)* LED manufacturer: LumiLeds Binning: Tight color and flux binning Calibration: Full Gamut Color Calibration

    *Figure obtained under manufacturer's test conditions at Ta 25°C

    Photometric Data CRI (Color Rendering Index) : > 70 Color resolution: 16 bits per color (64 bit per pixel) Dot pitch: 78 mm - 500 mm (fixture to fixture) Color Temperature: 2,000 – 12,000 K Viewing angle: (clear front) 150°, (diffused dome) 180°

    * Dot pitch can be extended using hybrid DCE cables.

    LUMINOUS INTENSITY Full@6500K: 106 cd (clear front), 56 cd (diffused dome)
    LUMINOUS OUTPUT* Full@6500K: 295 lm (clear front), 190 lm (diffused dome) Red: 80 lm (clear front), 50 lm (diffused dome) Green: 255 lm (clear front), 170 lm (diffused dome) Blue: 45 lm (clear front), 30 lm (diffused dome)

    * Dot pitch can be extended using hybrid DCE cables

    ** All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient

    Construction Color: Traffic Grey RAL 7042 (custom colors available on request) Surface treatment: Anodized and electrostatic powder- coated Base: Cast aluminum Protection rating: IP67 Effective Projected Area (EPA): 0.007 m² Impact resistance: IK08 Corrosion resistance: C5 High (ISO 12944-6) Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6), 0,7g RMS Random (IEC 60068-2-64), 3.0g (ANSI C136-31)
    Installation Mounting points: Direct surface mount or accessory mounting plate Orientation: Any
  • Connections Input: DCE connector cable tail for Power & data input, IP67 Output: DCE connector cable tail for Power & data thru, IP67 Connection: Hot-pluggable Max. daisy-chain (Full Mode) : 68 fixtures including 50 m cable Max. daisy-chain (Reduced power mode): 125 fixtures including 50 m cable

    * Refer to system diagram for details on fixture run limitations.

    Electrical Nominal input voltage: 48 VDC +/- 4% Power supply options: Martin P3 PowerPort 2000, P3 PowerPort 500 IP Install, P3 PowerPort 500 IP Rental, Martin DCE PSU 240 IP or generic 48 VDC PSU Surge protection: 4 KV
    Power Consumption Maximum Power Consumption: 5.7 W in full power mode, 3.2 W in reduced power mode Idle: 1.8 W Hibernation: 1.5 W

    * Measurements made at nominal voltage. Allow for a deviation of +/- 10%. Idle: zero intensity. Hibernation: zero intensity, wake-up procedure to re-use fixture.

    Thermal Cooling: Convection Total heat dissipation (calculated): 17 BTU/hr. Maximum ambient temperature (Ta max.): 55° C (131° F)* Minimum ambient temperature (Ta min.): -30° C (-22° F)

    *Above 45°C, the fixture starts regulating output to protect from overheating.

    Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant Packaging: FSC certified cardboard inlay and outer box Efficacy (max output): 50 lm/W LWR = Lumen-to-Weight Ratio: 630 lm/kg (290 lm/lb)
    Approvals Global CB Certification/IECEE: EC 62368-1 EU safety: EN 62368-1, EMC: EN55035 EN 55032, EN 61000 3-2, EN 61000-3-3 US safety: UL 62368-1, EMC: FCC Part 15 Class B Canadian safety: CSA C22.2 No.62368-1, EMC: ICES-003 Class B Australia/NZ: RCM - Pending United Kingdom: UKCA India: BIS IS 10322(Part5/section7) - Pending
    Related Items

    P3-175 System Controller: P/N MAR-90721100
    P3-275 System Controller: P/N MAR-90721101
    P3-PC System Controller: Free download from www.martin.com
    Martin Companion Free download from www.martin.com

    Accessories

    Power and Data Supply Units
    P3 PowerPort 2000: P/N MAR-90721200
    P3 PowerPort 500 IP Rental: P/N MAR-90721201
    P3 PowerPort 500 IP Install: P/N MAR-90721202
    DCE PSU 240 IP: P/N MAR-90721203

    Data Splitter & Booster for Split or Extended Cable Runs
    DCE DataSplitterBooster IP: P/N MAR-90721204

    Pre-Assembled Hybrid DCE Cables
    DC + Ethernet Cable DCE-DCE 1m: P/N MAR-91700100
    DC + Ethernet Cable DCE-DCE 2.5m: P/N MAR-91700101
    DC + Ethernet Cable DCE-DCE 5m: P/N MAR-91700102
    DC + Ethernet Cable DCE-DCE 10m: P/N MAR-91700103
    DC + Ethernet Cable DCE-DCE 25m: P/N MAR-91700104

    Bulk Hybrid DCE Cables
    DC + Ethernet Cable 100m: P/N MAR-91700105
    DC + Ethernet Cable LSZH 100m: P/N MAR-91700106

    Field-Installable DCE Connectors
    Field-installable Connector DCE Male: P/N MAR-91700107
    Field-installable Connector DCE Female: P/N MAR-91700108

    Closing Caps for DCE Connectors
    Closing Cap Male DCE Connector: P/N MAR-91700109
    Closing Cap Female DCE Connector: P/N MAR-91700110

    Hybrid DCE Adapters
    DC + Ethernet Adapter DCE Male-Male: P/N MAR-91700111
    DC + Ethernet Adapter DCE Female-Female: P/N MAR-91700112
    DC + Ethernet Adapter EtherCON+Wires to DCE: P/N MAR-91700113
    DC + Ethernet Adapter DCE to EtherCON: P/N MAR-91700114
    DC + Ethernet Adapter Bare Wires to DCE: P/N MAR-91700115

    Installation accessories
    Dot-HP Pro Flange Bracket, 10 pcs: P/N MAR-90581012
    Mounting Profile Kit, Dot-HP Pro: P/N 91606021

    Tools
    Exterior Multitool : P/N MAR-90590025

    Ordering Information Exterior Dot-HP Pro V2 clear front, grey in cardboard box: P/N MAR-90581020 Exterior Dot-HP Pro V2 diffused dome, grey in cardboard box: P/N MAR-90581021
