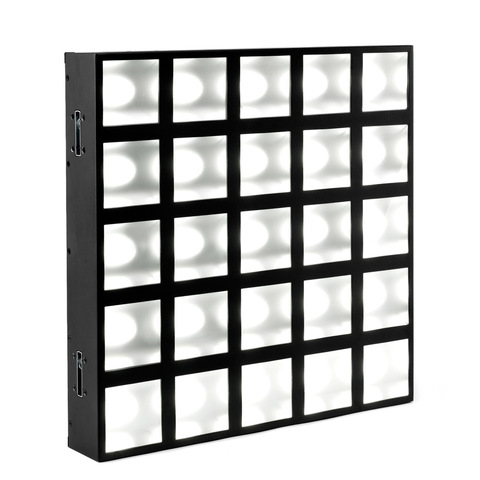

This white strobe/blinder is a 5 x 5 LED matrix panel with individually-controllable LEDs. Controllable via multiple DMX options or sound activated, it includes preprogrammed effect, letter and number macros for easy-to-produce graphics and messaging. Panels link via an integrated horizontal and vertical locking mechanism.
Imagens Grandes
Vídeos
Recursos
- White LED strobe/blinder
- 5 x 5 matrix panel
- Individually controllable LEDs
- Preprogrammed macros (effects, letters, numbers, etc.)
- Linkable - integrated horizontal and vertical locking
- DMX or sound activated
- Multiple DMX control options
- 3 & 5 pin XLR
Mais detalhes
PhysicalLength: 500 mm (19.7 in.)Width: 101 mm (4.0 in.)Height: 500 mm (19.7 in.)Weight: 9.5 kg (20.9 lbs.)
Dynamic EffectsStrobe effect: Electronic, with regular and random pulse, burst and strobe effectsPre-programmed effects: Effect, letter and number display macrosElectronic dimming: 0 - 100% continuous, individually dimmable pixelsEffects orientation: Standard or inverted 180°
Control and ProgrammingControl options: DMX, stand-aloneDMX channels: 4/25/29Stand-alone trigger options: Music trig, auto trigStand-alone sequences: 8 pre-programmed shows or random showStand-alone memory: 20 scenesSetting and addressing: Control panel with LED displayDMX compliance: USITT DMX512/1990
OpticsLight source: 25 x 5 W Cree cool white LEDsColor temperature: 6000 - 6500 KMinimum LED lifetime: 50 000 hours (to >70% luminous output)**Figure obtained under manufacturer´s test conditions
ConstructionColor: BlackHousing: SteelProtection rating: IP20
InstallationLocation: Indoor use only, must be fastened to surface or structureMounting points: Integral hanging brackets (removable), side-by side mounting locksOrientation: Any
ConnectionsAC power in/thru: Neutrik PowerConDMX data in/out: 3-pin and 5-pin locking XLR
ElectricalAC power: 100-240 V nominal, 50/60 HzTypical total power consumption: 148 WPower consumption figures are typical, not maximum. Allow for +/-10% variation.
Typical Power and Current110 V, 60 Hz: 2.0 A, 148 W230 V, 50 Hz: 1.2 A, 146 WMeasurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
ThermalCooling: Forced air (temperature-regulated, low noise)Maximum ambient temperature (Ta max.): 40° C (104° F)Minimum ambient temperature (Ta min.): 0° C (32° F)Total heat dissipation (calculated, +/- 10%): 510 BTU/hr.
ApprovalsEU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547US EMC: 47 CFR Part 15 Class ACanadian EMC: ICES-003 Class AAustralia/NZ: C-TICK N4241
Included ItemsPower cable 1.5 mMounting brackets incl. screws
AccessoriesCables, 16 A, for connection to power in chainsPower input cable, 14 AWG, UL, SJT, 1.5 mm2 , H05VV-F, with PowerCon input connector, 3 m (9.8 ft.): P/N 11541508Power relay cable, 14 AWG, UL, SJT, 1.5 mm2 , H05VV-F, with PowerCon connectors, 1.4 m (4.6 ft.): P/N 11541509Power relay cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon connectors, 2.25 m (7.4 ft.): P/N 11541510Power relay cable, 14 AWG, UL, SJT, 1.5 mm2 , H05VV-F, with PowerCon connectors, 3.25 m (10.7 ft.): P/N 11541511Power connectorsNeutrik PowerCon NAC3FCA power input connector, cable mount, blue: P/N 05342804Neutrik PowerCon NAC3FCB power output connector, cable mount, light grey: P/N 05342805
Related ItemsRUSH™ Software Uploader 1: P/N 91611399
Ordering InformationRUSH Strobe 1 5x5™ in cardboard box: P/N 90480020
