M-Series Submaster Module
Imagens maiores

Effective 14 March, 2018, Elation Professional has acquired the M-Series range of lighting controllers and software from HARMAN Professional and will now be providing sales and product support. View the announcement from Elation Professional.

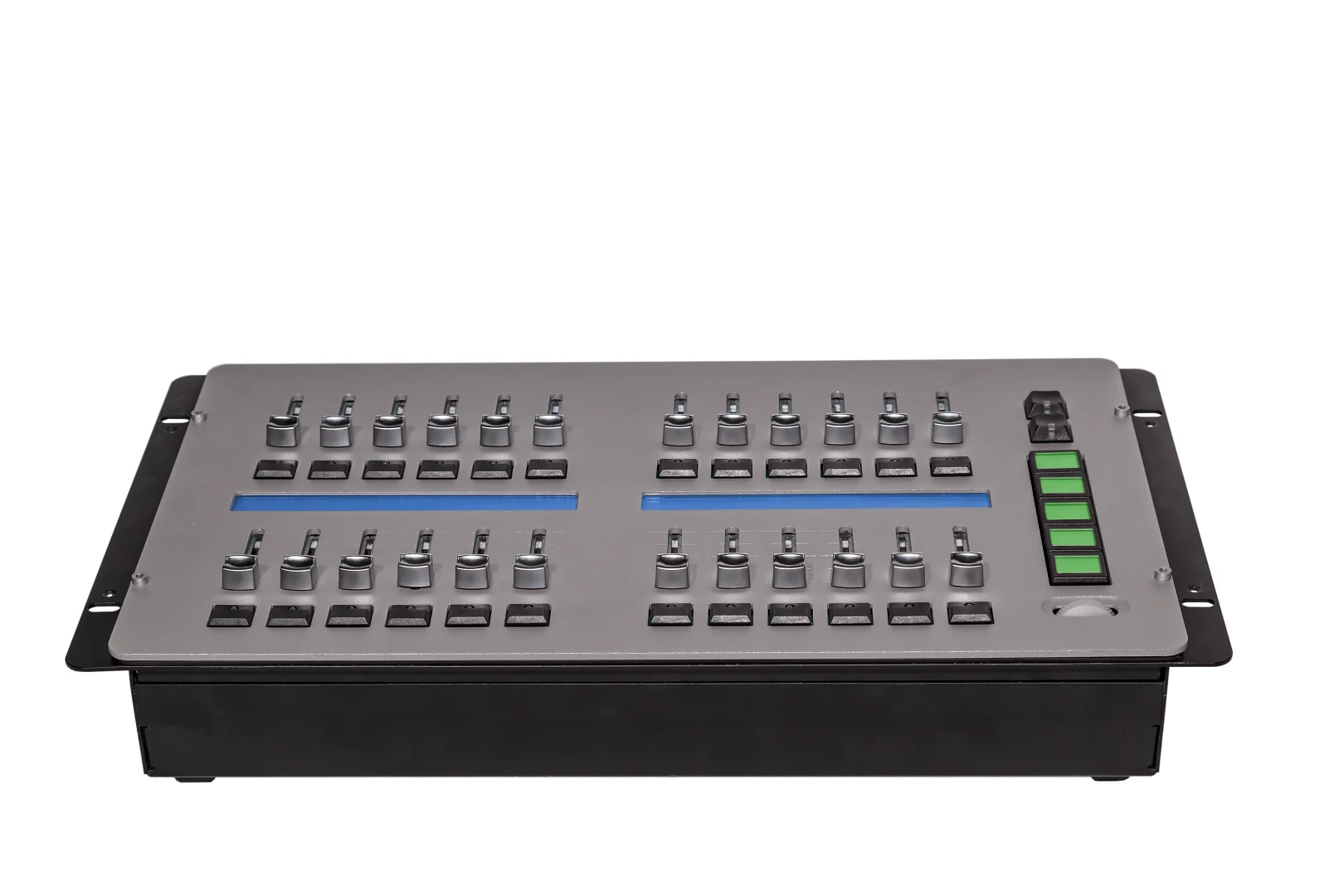

The M-Series Submaster Module provides the user with an additional 24 handles of controls for cuelists, channels, submasters or inhibitives. Combined with any M-Series consoles or the Martin M-PC, the Submaster Module makes it easy and relatively inexpensive to build a 24, 48 or even 96 fader desk - the perfect startup theater or busking console.

  • 24 x playback faders with single-function button
  • 5 x LCD navigation buttons with scroll wheel
  • 2 x 40-character display for labeling

Características

  • 24 x faders with single-function button (every cuelist type supported)
  • 2 x 40-character display for labeling
  • 5 x LCD navigation buttons with scroll wheel
  • Direct access Up Down buttons for bank change
  • Tabletop and 19” rackmount format

Mais detalhes

PhysicalLength: 275 mm (10.9 in.)Width: 483 mm (19.1 in.)Height: 128 mm (5.1 in.)Weight: 4.6 kg (10.2 lbs.)
Control/User Interface24 x non-motorized faders with single function button (every cuelist type supported)40-character display for labeling5 x LCD navigation buttons with scroll wheel
ConnectionsM-Series™ Module link USB: Neutrik locking RJ45 Ethercon socketsUSB input: USB device socketUSB devices: USB host socketDesk lamp: 2.5 mm DC bayonetAC power input: 3-pin IEC male socketAC power throughput: 3-pin IEC female socket
ElectricalAC power: 100-240 V nominal, 50/60 HzPower supply unit: Auto-ranging electronic switch-modeMain fuse: 2 AT (slow blow)Desk lamp output: 12 VAC power output: Unswitched, unfused, max. 6 A
ApprovalsEU safety: EN 60950EU EMC: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3US safety (pending): ANSI/UL 60950-1Canadian safety (pending): CSA C22.2 No. 60950-1
Included Items1.5 m power cable, 3-pin IEC: P/N 11501012Ethercon patch cable: P/N 11840144USB cable: P/N 11840066
AccessoriesM-Series™ Empty Frame in Flightcase: P/N 90732120
Ordering InformationM-Series™ Submaster Module (complete): P/N 90732170

Descarregamentos

Specifications
  Idioma Tamanho Carregado
en  700 KB out 2020
Compliances
  Versão Tamanho Carregado
300 KB mai 2018
Software
  Versão Idioma Tamanho Carregado
file type icon Firmware Update Package
en versão C, atualizado: out 2020
en  400 MB out 2020
file type icon Martin Submaster Module firmware for release version
en versão 3.70.885, atualizado: mai 2018
3.70.885  en  200 KB mai 2018
file type icon M-Series Software
versão 3.70.885, atualizado: jun 2018
3.70.885    jun 2018
