M Series Top Submaster Narrow Module
Descontinuado

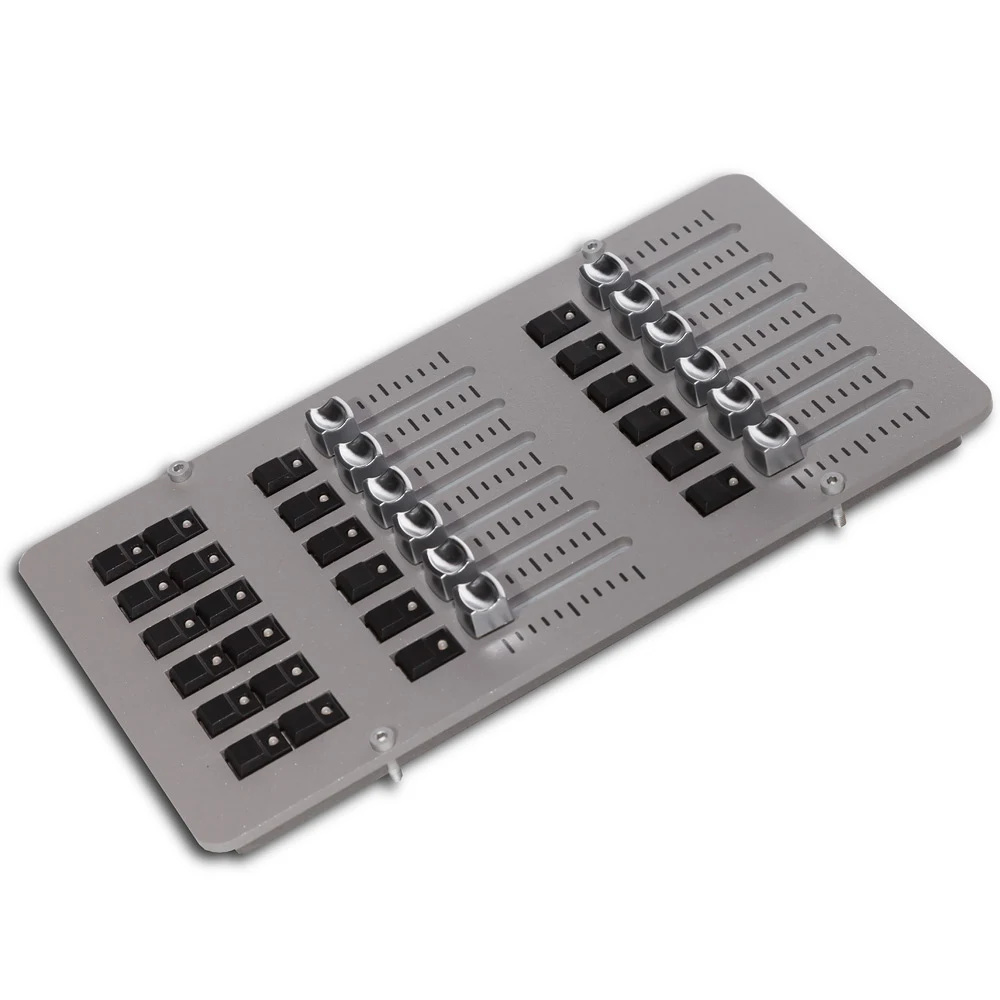

M Series Top Submaster Narrow Module
Imagens maiores

The Narrow Submaster Module provides the user with 24 additional playbacks inside the M6 frame for cuelists, channels, submasters or inhibitives. It can be mounted in six different positions, allowing an optimized layout for any task.

  • 12 x 40 mm playback faders with single function button
  • 12 x button playbacks
  • Dual-color LED feedback

Características

  • 12 x 40 mm faders with single function button (every cuelist type supported)
  • 12 x button playbacks
  • Dual-color LED feedback
  • Rugged industrial design

Mais detalhes

Physical Width: 144 mm (5.7 in.) Height: 275 mm (10.9 in.) Depth: 30 mm (1.2 in.) Weight: 0.7 kg (1.6 lbs.)
Control/User Interface 24 x non-motorized faders with single function button (every cuelist type supported) 12 x button playbacks Dual-color LED feedback
Connections M6™ link: RJ-45 socket DC power input: 8-pin Molex
Electrical DC power: 12 V
Approvals EU safety: EN 60950 EU EMC: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3 US safety (pending): ANSI/UL 60950-1 Canadian safety (pending): CSA C22.2 No. 60950-1
CE
Ordering Information M-Series™ Top Submaster Narrow Module: P/N 91613105
