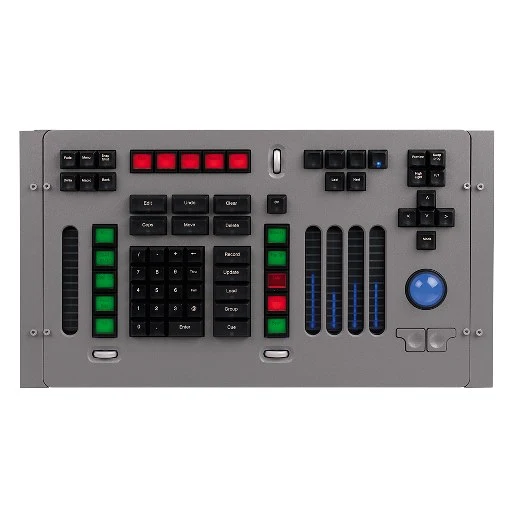

Martin MaxModule Programmer

Hình ảnh lớn hơn

The Programmer module is the main control unit of the M-Series system. This module can be used with the Cerebrum or with the M-PC V3 software and it allows the user to be quick and efficient while programming a show - the perfect startup M-Series Console.

Tính năng

4 x digital fader belts for fixture parameter control
Trackball with pan/tilt control switch
Blind/preview button
Customizable highlight/lowlight function
Next/last fixtures/groups
Left/right mouse button
Customizable LCD function keys for function shortcuts
M-PC V3 key built-in
Built-in M-PC V3 dongle and 2 built-in DMX ports

Thêm Chi tiết

Physical Length: 275 mm Width: 483 mm Height: 128 mm Weight: 5 kg

Control/User Interface 4 x digital fader belts for fixture parameter control: Trackball with pan/tilt control switch: Blind/preview button: Customizable highlight/lowlight function: Next/last fixtures/groups: Left/right mouse button: Customizable LCD function keys for function shortcuts:

Connections Maxxyz/Maxedia multiple controller link USB: Neutrik locking RJ45 Ethercon sockets DMX out: 2 x 5-pin female locking XLR USB input: USB device socket USB devices: USB host socket Desk lamp: 2.5 mm DC bayonet AC power input: 3-pin IEC male socket AC power throughput: 3-pin IEC female socket

Electrical AC power: 100-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch-mode Main fuse: 2 AT (slow blow) Desk lamp output: 12 V AC power output: Unswitched, unfused, max. 6 A

Approvals EU safety: EN 60950 EU EMC: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3 US safety (pending): ANSI/UL 60950-1 Canadian safety (pending): CSA C22.2 No. 60950-1

Included Items Maxxyz PC key (without 3D Visualizer) installed internally: 1.5 m power cable, 3-pin IEC: 11501012 Ethercon patch cable: 11840144 USB cable: 11840066 User manual: 35000223 DVD with Maxxyz PC and Maxxyz Manager software:

Ordering Information MaxModule Programmer: 90732150 M-Series™ Empty Frame in Flightcase: 90732120 M-Series™ Empty Frame in Cardboard Box: 90732130

Tải xuống

Manuals

	Phiên bản	Ngôn ngữ	Kích thước	Đã tải lên
Maxxyz Modules user manual phiên bản B, cập nhật: Thg 10 2020	B		1 MB	Thg 10 2020

Compliances

	Phiên bản	Ngôn ngữ	Kích thước	Đã tải lên
Maxxyz, Maxxyz Compact, MaxModule Playback, Max Module Submaster, Max Module Button, MaxModule Programmer, MaxModule Cerebrum, M1- ETL Authorization To Mark phiên bản B, cập nhật: Thg 5 2018	B		30 KB	Thg 5 2018

Software

	Phiên bản	Ngôn ngữ	Kích thước	Đã tải lên
Martin Programmer Module firmware for release version phiên bản 3.70.885, cập nhật: Thg 10 2020	3.70.885		200 KB	Thg 10 2020
