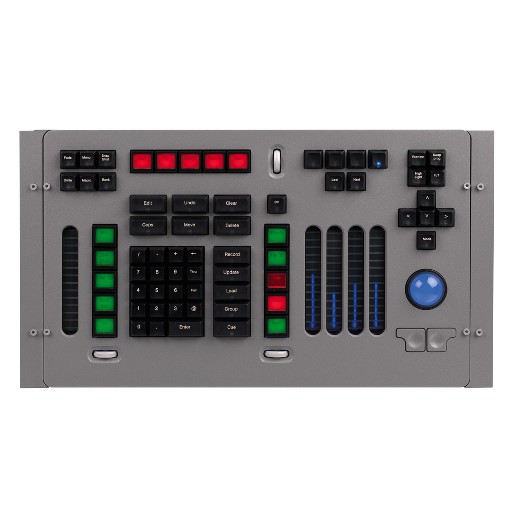

The Programmer module is the main control unit of the M-Series system. This module can be used with the Cerebrum or with the M-PC V3 software and it allows the user to be quick and efficient while programming a show - the perfect startup M-Series Console.
Features
- 4 x digital fader belts for fixture parameter control
- Trackball with pan/tilt control switch
- Blind/preview button
- Customizable highlight/lowlight function
- Next/last fixtures/groups
- Left/right mouse button
- Customizable LCD function keys for function shortcuts
- M-PC V3 key built-in
- Built-in M-PC V3 dongle and 2 built-in DMX ports
Specifications
Physical
Length: 275 mm
Width: 483 mm
Height: 128 mm
Weight: 5 kg
Control/User Interface
4 x digital fader belts for fixture parameter control:
Trackball with pan/tilt control switch:
Blind/preview button:
Customizable highlight/lowlight function:
Next/last fixtures/groups:
Left/right mouse button:
Customizable LCD function keys for function shortcuts:
Connections
Maxxyz/Maxedia multiple controller link USB: Neutrik locking RJ45 Ethercon sockets
DMX out: 2 x 5-pin female locking XLR
USB input: USB device socket
USB devices: USB host socket
Desk lamp: 2.5 mm DC bayonet
AC power input: 3-pin IEC male socket
AC power throughput: 3-pin IEC female socket
Electrical
AC power: 100-240 V nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch-mode
Main fuse: 2 AT (slow blow)
Desk lamp output: 12 V
AC power output: Unswitched, unfused, max. 6 A
Approvals
EU safety: EN 60950
EU EMC: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3
US safety (pending): ANSI/UL 60950-1
Canadian safety (pending): CSA C22.2 No. 60950-1


Included Items
Maxxyz PC key (without 3D Visualizer) installed internally:
1.5 m power cable, 3-pin IEC: 11501012
Ethercon patch cable: 11840144
USB cable: 11840066
User manual: 35000223
DVD with Maxxyz PC and Maxxyz Manager software:
Ordering Information
MaxModule Programmer: 90732150
M-Series™ Empty Frame in Flightcase: 90732120
M-Series™ Empty Frame in Cardboard Box: 90732130
