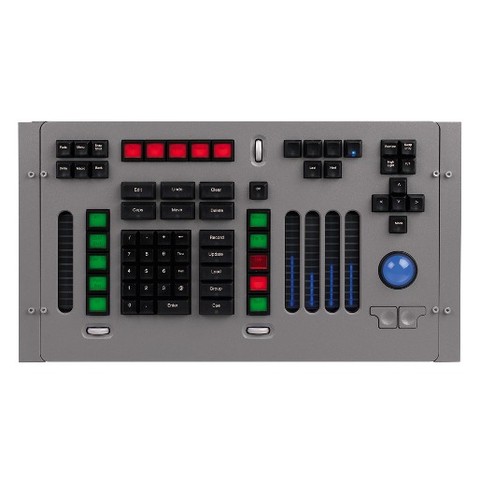

MaxModule Programmer (discontinued)

Larger Images

The Programmer module is the main control unit of the M-Series system. This module can be used with the Cerebrum or with the M-PC V3 software and it allows the user to be quick and efficient while programming a show - the perfect startup M-Series Console.

Features

  • 4 x digital fader belts for fixture parameter control
  • Trackball with pan/tilt control switch
  • Blind/preview button
  • Customizable highlight/lowlight function
  • Next/last fixtures/groups
  • Left/right mouse button
  • Customizable LCD function keys for function shortcuts
  • M-PC V3 key built-in
  • Built-in M-PC V3 dongle and 2 built-in DMX ports

Specifications

Physical Length: 275 mm Width: 483 mm Height: 128 mm Weight: 5 kg
Control/User Interface 4 x digital fader belts for fixture parameter control: Trackball with pan/tilt control switch: Blind/preview button: Customizable highlight/lowlight function: Next/last fixtures/groups: Left/right mouse button: Customizable LCD function keys for function shortcuts:
Connections Maxxyz/Maxedia multiple controller link USB: Neutrik locking RJ45 Ethercon sockets DMX out: 2 x 5-pin female locking XLR USB input: USB device socket USB devices: USB host socket Desk lamp: 2.5 mm DC bayonet AC power input: 3-pin IEC male socket AC power throughput: 3-pin IEC female socket
Electrical AC power: 100-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch-mode Main fuse: 2 AT (slow blow) Desk lamp output: 12 V AC power output: Unswitched, unfused, max. 6 A
Approvals EU safety: EN 60950 EU EMC: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3 US safety (pending): ANSI/UL 60950-1 Canadian safety (pending): CSA C22.2 No. 60950-1
CE ETL C US Intertek
Included Items Maxxyz PC key (without 3D Visualizer) installed internally: 1.5 m power cable, 3-pin IEC: 11501012 Ethercon patch cable: 11840144 USB cable: 11840066 User manual: 35000223 DVD with Maxxyz PC and Maxxyz Manager software:
Ordering Information MaxModule Programmer: 90732150 M-Series™ Empty Frame in Flightcase: 90732120 M-Series™ Empty Frame in Cardboard Box: 90732130

Downloads

  Version Language Size Uploaded
Manuals
Maxxyz Modules user manual
en version B, updated: Oct 23, 2020
en  1.35 MB Oct 23, 2020
Compliances
ETL Authorization to Mark
en version B, updated: May 18, 2018
en  26.7 KB May 18, 2018
Software
Martin Programmer Module firmware for release version
en version 3.70.885, updated: Oct 23, 2020
3.70.885  en  189 KB Oct 23, 2020
