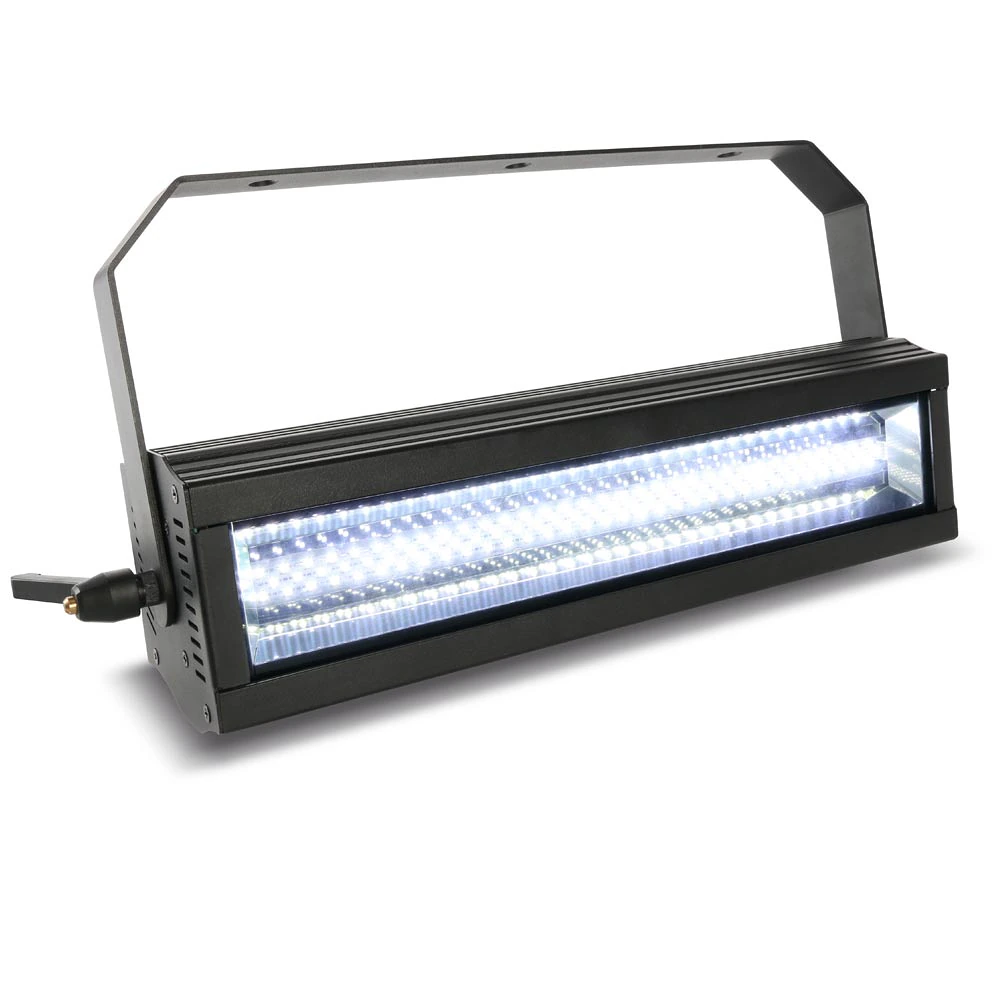

这款亮度高、结构紧凑的LED线性频闪灯采用99个3W Cree XP-D LED，配备反射器设计，呈现传统氙气频闪灯的外观，输出功率达17,000流明。从单次闪光到致盲效果，RUSH™ Strobe CWL是移动DJ、酒吧休闲区、演出场所和游轮的完美选择。
- 99个Cree XP-D 3W冷白LED
- 反射器设计
- 1-25 FPS及致盲效果
较大的图像
视频
特点
- Compact LED linear strobe
- 17,000 lumens output
- Color system: 99 x cold white LED
- 87° beam angle
- 8 strobe macros
更多详情
PhysicalLength: 505 mm (19.9 in.)Width: 140 mm (5.5 in.)Height: 226 mm (8.9 in.)Weight: 4.0 kg (8.9 lbs.)
Dynamic EffectsStrobe rate: 0 - 25 HzStrobe duration: 0 - 10 ms (50 Hz supply), or 0 – 8.3 ms (60 Hz supply)Blinder effect: Continuous with auto fadeSpecial effects: Ramp up/down, up-down, random flash, lightning, blinder, single flash
Control and ProgrammingControl options: DMX, stand-alone, master/client, sound triggerDMX channels: 1 or 4Setting and addressing: Control panel with LCD displayCompliance: USITT DMX512/1990
OpticsBeam angle: 87°Light source: 99 x 3 W CREE white XB-D LEDColor temperature: 7000-8000 KMinimum LED lifetime: 50 000 hours (to >70% luminous output)**Figure obtained under test conditions
ConstructionColor: BlackHousing: Steel and aluminumProtection rating: IP 20
InstallationMounting points: Bracket with 13.5 mm holesOrientation: AnyLocation: Indoor use only, must be fastened to surface or structureMinimum distance to illuminated surfaces: 0.2 m (8 in.)Minimum distance to combustible materials: 0.1 m (4 in.)Minimum clearance around fans and vents: 0.1 m (4 in.)
ConnectionsAC power in/thru: Neutrik PowerConDMX data in/thru: 3-pin and 5-pin locking XLR
ElectricalAC power: 100-240 V nominal, 50/60 HzPower supply unit: Diode bridge
Typical Power and Current110 V, 60 Hz: 2.5 A, 250 W, PF 0.9230 V, 50 Hz: 2.7 A, 380 W, PF 0.6Measurements made at nominal voltage. Allow for a deviation of +/-10%.PF = Power Factor
ThermalCooling: Forced air (temperature regulated, low noise)Maximum ambient temperature (Ta max.): 40° C (104° F)Minimum ambient temperature (Ta min): 0° C (32° F)
ApprovalsEU safety: EN 60598-2-17 (EN 605981-1)EU EMC: EN 55015, EN55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547US safety: UL 1573US EMC: 47 CFR Part 15 Class ACanadian safety: CSA 22.2 No. 166Australia/NZ: C-Tick N4241
Included ItemsEU version: 1.5 m (5 ft.) power cable without mains plug, mounting bracketUS version: 1.5 m (5 ft.) power cable with mains plug, mounting bracket
AccessoriesPower cables, 16 A, for connection to power in chainsPower input cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon input connector, 3 m (9.8 ft.): P/N 11541508Power relay cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon connectors, 1.4 m (4.6 ft.): P/N 11541509Power relay cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon connectors, 2.25 m (7.4 ft.): P/N 11541510Power relay cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon connectors, 3.25 m (10.7 ft.): P/N 11541511Power connectorsNeutrik PowerCon NAC3FCA female connector for power in, cable mount, blue: P/N 05342804Neutrik PowerCon NAC3FCB male connector for power out/thru, cable mount, light grey: P/N 05342805DMX linkDMX termination plug, 3-pin male XLR: P/N 91613017Installation hardwareFour-unit bracket for RUSH Strobe CWL: P/N 91606019Half-coupler clamp: P/N 91602005G-clamp: P/N 91602003
Related ItemsRUSH™ Software Uploader 1: P/N 91611399
Ordering InformationRUSH™ Strobe CWL EU model in cardboard box: P/N 90480110RUSH™ Strobe CWL US model in cardboard box: P/N 90480115
