ERA 800 Profile
停产

800 W LED 移动头射灯,具有 CMY 色彩混合功能

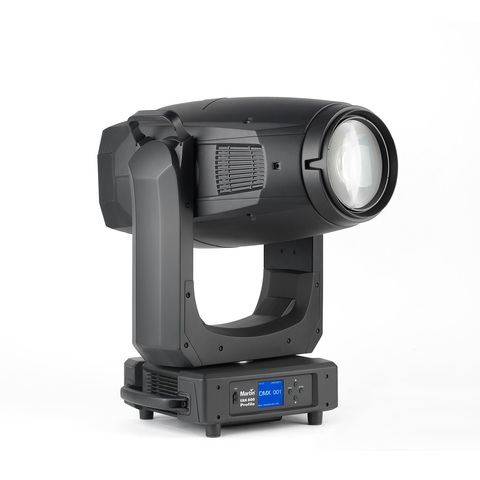

ERA 800 Profile
较大的图像

Martin ERA 800 Profile 集功能齐全、成本高效和实用设计于一身,完美适用于体育场规模的娱乐活动和租赁制作。作为一款巡演级、紧凑型 LED 成像灯,具备增强的鹅卵石装载容量,专为大型舞台而设计,满足市场需求。ERA 800 Profile 搭载极其高效的 800 W、6,500 K LED 光源,可产生强劲的 34,000 流明,并通过平场投影实现锐利的图像效果。其他优势包括 1:8 变焦、电子调光和频闪、CMY/CTO、用于光束调节的光圈、双旋转鹅卵石转盘和一个静止转盘。它还配备了来自享誉盛名的 Martin MAC 系列的用户喜爱的鹅卵石,提供多种效果,尤其是与所配的旋转棱镜组合使用时。

除了大规模演唱会和巡演制作外,ERA 800 Profile 还非常适用于邮轮、宗教场所、电视直播制作和企业活动,这些场合需要真正多功能的 LED 成像灯,提供近乎无限的设计和应用潜力。

Key improvements: - "注重实效" → "实用设计" (more natural phrasing for B2B context) - "鹅卵石装载设计" → "鹅卵石装载容量" (clearer technical meaning) - "最大舞台" → "大型舞台" (more precise) - "图像投影" → "图像效果" (consistent with LED lighting terminology) - "鹅卵石轮" → "鹅卵石转盘" (more accurate technical term) - "所含旋转棱镜" → "所配的旋转棱镜" (better preposition for accessories) - "最大规模的演唱会" → "大规模演唱会" (conciseness improvement) - "礼拜场所" → "宗教场所" (more formal/professional term) - "直播电视制作" → "电视直播制作" (correct word order) - "公司活动" → "企业活动" (more formal B2B register) - "使用潜力" → "应用潜力" (more professional terminology)
  • 紧凑设计,专为巡演而生

    ERA 800 Profile 在同类产品中体积最小、重量最轻,便于搬运和安装。其模块化设计使效果器的访问和更换安全、迅速且便利——模块可在一分钟内完成更换。

  • 超亮LED光源

    配备极其高效的800 W光源,ERA 800 Profile投射灯的输出功率超过同类规格的灯具。全电子调光确保极快的频闪速度、即时强度控制以及可维持至零百分比的均匀一致光场。

  • 出色的色彩调板

    具有精确的色温控制、可变色温修正 (CTO) 以及生动的 CMY 色彩混合功能,可呈现从柔和淡色到浓郁饱和原色的丰富效果。色轮可产生出众的色彩分离、快速的色彩切换,并扩展整体色域和亮度。

  • 1:8 变焦范围

    ERA 800 Profile 提供 7 至 56 度的变焦范围,即使在较大的安装高度下也能表现出色。变焦速度快、精度高,在整个范围内保持高输出。

  • 低维护成本与正收益率

    稳定可靠的LED光引擎消除了灯泡老化、输出衰减、色温偏移和风扇吸尘进入光学路径等问题。模块化设计使光学部件的访问和更换安全、迅速、简便。

featured content

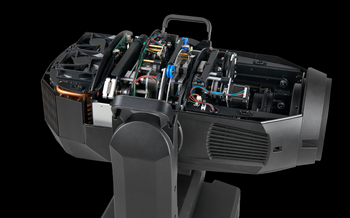

紧凑设计,专为巡演而生

ERA 800 Profile 在同类产品中体积最小、重量最轻,便于搬运和安装。其模块化设计使效果器的访问和更换安全、迅速且便利——模块可在一分钟内完成更换。

featured content

超亮LED光源

配备极其高效的800 W光源,ERA 800 Profile投射灯的输出功率超过同类规格的灯具。全电子调光确保极快的频闪速度、即时强度控制以及可维持至零百分比的均匀一致光场。

featured content

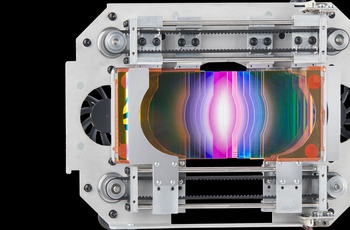

出色的色彩调板

具有精确的色温控制、可变色温修正 (CTO) 以及生动的 CMY 色彩混合功能,可呈现从柔和淡色到浓郁饱和原色的丰富效果。色轮可产生出众的色彩分离、快速的色彩切换,并扩展整体色域和亮度。

featured content

1:8 变焦范围

ERA 800 Profile 提供 7 至 56 度的变焦范围,即使在较大的安装高度下也能表现出色。变焦速度快、精度高,在整个范围内保持高输出。

featured content

低维护成本与正收益率

稳定可靠的LED光引擎消除了灯泡老化、输出衰减、色温偏移和风扇吸尘进入光学路径等问题。模块化设计使光学部件的访问和更换安全、迅速、简便。

视频





特点

  • 亮度 800 W / 6,500 K LED 光源
  • 34,000 流明输出
  • 清晰的光学系统,具有平场设计
  • 1:8 快速变焦
  • 配备 160 mm 前透镜的宽束光效果
  • CMY 色彩混合 - 充满活力的色彩混合,调色板丰富,与 MAC 系列相匹配
  • 线性 CTO - 日光至钨灯色温控制,扩展 CMY 调色板
  • 6 槽色轮 - 提供更多色彩选择和分色效果
  • 12 个旋转/定位转盘 - 全部采用著名的 Martin 玻璃转盘
  • 7 个固定转盘 - 可实现出色的变形效果
  • 连续双向旋转的动画轮
  • 光圈 - 快速且紧凑的光圈
  • 双棱镜 - 4 面和线性棱镜 - 具有旋转和定位控制,可实现动态效果
  • 软霜效应 - 轻微的霜面效应使转盘图案清晰可见,并具有美观的柔和边缘
  • 重霜效应 - 用于洗墙光效果
  • 紧凑轻便的设计

性能

  • 物理特性 重量: 40.0 kg (88.2 lbs.) Minimum center-to-center distance in side-by-side installation: 730 mm (28.8 in.) Length (head): 608 mm (24.0 in.) Length (base): 416 mm (16.4 in.) Width (base): 290 mm (11.4 in.) Width (across yoke): 431 mm (17.0 in.) Height (head straight up): 802 mm (31.6 in.) Height (maximum): 851 mm (33.5 in)
    Dynamic Effects Color mixing: CMY, independently variable 0-100% Color wheel: 6 color filters plus open Gobo animation: Animation wheel, indexing, continuous rotation with variable speed and direction Rotating gobo wheel: 6 gobos plus open, wheel rotation, gobo rotation, indexing and shake Second rotating gobo wheel: 6 gobos plus open, wheel rotation, gobo rotation, indexing and shake Static gobo wheel: 7 gobos plus open, wheel indexing, rotation and shake Iris: 0-100% Zoom: Motorized Color temperature control: Variable 6500 - 2700 K Prism: 2 rotating/indexing prisms (4-facet circular and 6-facet linear) Frost: Soft frost effect and heavy frost effect Electronic dimming: 0 - 100%, four dimming curve options Electronic shutter effect: Strobe effect, pulse effects, instant open and blackout Pan: 540°, coarse & fine control and speed Tilt: 260°, coarse & fine control and speed Focus: Motorized
    Control and Programming Control options: DMX Setting and addressing: Control panel with backlit LCD display 16-bit control: Dimming, CMY, CTO, Zoom, Focus, Pan and Tilt DMX channels: 36 DMX compliance: USITT DMX512/1990 RDM compliance: ANSI/ESTA E1.20 Transceiver: Opto-isolated RS-485
    Optics Front lens diameter: 160 mm (6.3 in.) Zoom range: 7° - 56° (1:8) Light source: 800 W LED engine Minimum LED lifetime: 20000 hours (to >70% luminous output)* Binning: Tight color and flux binning *Manufacturer´s figure obtained under manufacturer´s test conditions
    Photometric Data

    Light engine luminous output: 70,000 lumens LED refresh rate : 3600 Hz Standard Fixture luminous output: 35,000 lumens CRI (Color Rendering Index): >70 CQS (Color Quality Scale): >67 TM-30 Rf (IES TM-30-15 Fidelity Index): >65 TM-30 Rg (IES TM-30-15 Gamut Index): >93 TLCI (Television Lighting Consistency Index): >44 CCT: 6900 K (+/- 250 K) Peak Luminous Intensity: 1,870,000 cd With Optional CRI Boost Filter Fixture luminous output: 25,000 lumens CRI (Color Rendering Index): >79 CQS (Color Quality Scale): >76 TM-30 Rf (IES TM-30-15 Fidelity Index): >77 TM-30 Rg (IES TM-30-15 Gamut Index): >98 TLCI (Television Lighting Consistency Index): >57 CCT: 6500 K (+/- 250 K)Peak Luminous Intensity: 1,276,000 cd
    * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

    Lamp
    Construction Housing: High-impact flame-retardant thermoplastic 颜色: Black Protection rating: IP20
    Gobos Maximum image diameter: 25 mm (0.98 in.) Gobo material: Borofloat 33 External diameter: 30.0 mm +0 / -0.2 mm (1.181 in. +0 / -0.008 in.) Maximum gobo thickness: 1.1 mm (0.04 in.) Coating: Heavy matted aluminum
    Installation Mounting points: 2 pairs of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega brackets Location: Dry location only, must be fastened to surface or structure Orientation: Any Minimum distance to combustible materials: 0.2 m (8 in.) Minimum distance to illuminated surfaces: 2.0 m (6.6 ft.)
    Connections DMX and RDM data in/out: 5-pin locking XLR AC mains power input.: Neutrik TRUE1 socket, accepts TRUE1 NAC3FX-W (TOP) connector AC mains power throughput : Neutrik TRUE1 socket, accepts TRUE1 NAC3MX-W (TOP) connector
  • Electrical

    AC power: 100-240 V AC nominal, 50/60 Hz
    Power supply unit: Auto-ranging electronic switch mode
    Typical half-cycle RMS inrush current at 230 V, 50 Hz: 10.3 A
    Power Factor: 0.99 @ 120 V , 0.97 @ 230 V
    Typical current draw: 10.8 A @ 120 V , 5.5 A @ 230 V *
    Power Consumption
    Maximum: 1397 W
    Typical: 1270 W *
    Idle: 64 W *
    * Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
    Typical: full output white, no effects moving, regulated fan speed.
    Idle: no output, no effects moving, regulated fan speed.

    Thermal 散热: Forced air (temperature-regulated, low noise) Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 5° C (41° F) Maximum surface temperature, steady state, at 40° C ambient: 70° C (158° F) Maximum total heat dissipation, calculated, +/- 10%: 4770 BTU/hr.
    Acoustic Data Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 41.4 dB(A) Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 37.7 dB(A)
    Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant Efficacy (max output): 30.2 lm/W LWR*: 875 lm/kg (397 lm/lb)

    LWR = Lumen-to-Weight Ratio

    Approvals Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1) EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN62493 EU EMC: EN 55015, EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61547 US safety: UL 1573 US EMC: FCC Part 15 Class B Canadian safety: CSA C22.2 No. 166 Canadian EMC: ICES-3 (B) / NMB-3 (B); ICES-5 (B) / NMB-5 (B) Australia/NZ: RCM
    Included Items Two omega brackets with 1/4 turn fasteners for rigging clamp attachment: 2 x P/N 91602001
    Related Items Martin Companion Software Suite (including firmware uploader): Free download from www.martin.com Martin Companion Cable USB/DMX hardware interface: P/N 91616091
    Accessories

    Conversion kits
    Framing Module (converts ERA 800 Profile to Performance): P/N 5125961-00
    Gobo Wheel 3 Effects Module (converts ERA 800 Performance to Profile): P/N 5131799-00
    Optical accessories
    CRI Boost Filter (CRI >79, installs on gobo wheel): MAR-91614059
    Power input cables
    Power Input Cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.) : P/N 91611797
    Power Input Cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786
    Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173
    Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174
    Power relay cables, 16 A
    Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
    Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
    Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
    Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
    Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
    Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172
    Power connectors
    Cable Connector, Neutrik powerCON TRUE1 NAC3FX-W TOP (female): P/N 91611789HU
    Cable Connector, Neutrik powerCON TRUE1 NAC3MX-W TOP (male): P/N 91611788HU
    Installation hardware
    G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
    Half-coupler Clamp: P/N 91602005
    Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
    T-shape omega bracket with 1/4 turn, PN 91602008

    Verified Third-Party Accessories

    Beam Control
    ERA 800 Profile Top Hat: P/N City Theatrical 2820
    ERA 800 Profile Concentric Ring: P/N City Theatrical 2821
    ERA 800 Profile Hexcel Louver: P/N City Theatrical 2822

    Ordering Information ERA 800 Profile in cardboard box: P/N 9025123581 ERA 800 Profile (White) in cardboard box: P/N 9025123582 Flightcase, two unit, for 2 x ERA 800 Performance / Profile : P/N 91512255
