Martin P3 PowerPort 1000 IP Rental

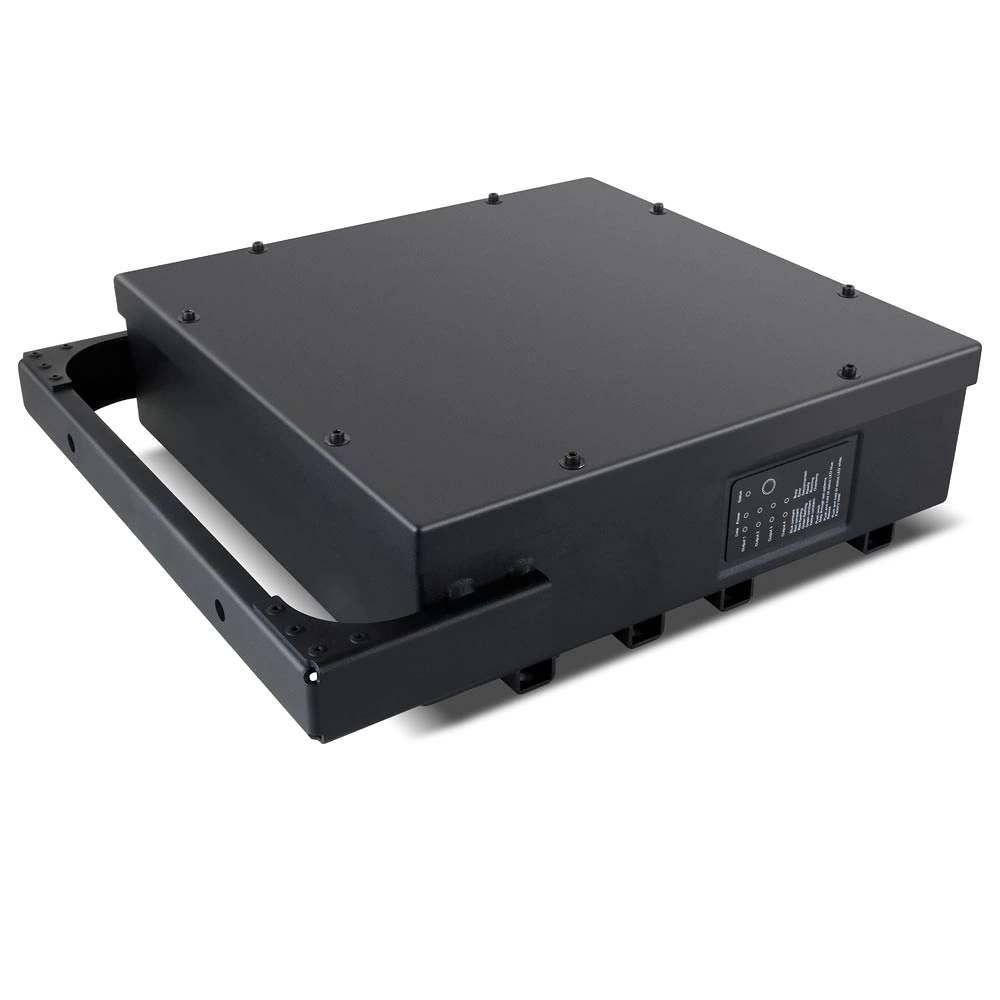

较大的图像

P3 PowerPort 1000 IP 租赁版是 Martin 创意 LED 视频产品租赁系列的集成电源和数据处理器，包括 VDO Sceptron™ 和 VC-Dots™。配合 Martin 屡获殊荣的 P3™ System Controllers™ 使用时，该产品将稳定的电源供应与高速、大容量视频处理完美结合。设置和配置简便直观。全户外等级认证和坚固的 IP65 等级连接器使该产品成为户外租赁安装的理想选择。

Martin 租赁市场创意 LED 视频产品的电源和数据处理器
灵活集成：可远程、室内或室外部署
布线和配置简便

特点

P3 图像处理技术
通过 P3 System Controller 系列进行设置和寻址
无需本地配置
P3 输入和直通端口支持菊花链连接
4 个混合电源/数据输出端口
可安装在桁架上或独立放置
可放置于距创意 LED 视频产品最远 50 m 处
IP65

性能

物理特性长度: 520 mm (20.5 in.) 宽: 460 mm (18.2 in.) 高: 146 mm (5.8 in.) 重量: 8.5 kg (18.8 lbs.)

Control and Programming Addressing and status: Via P3 System Controller Mapping: Via P3 System Controller Firmware update: Via P3 System Controller

Control/User Interface Device status: Multicolor status LED Power output status: Four LEDs Data output status: Four LEDs Device test and reset: Pushbutton to call up local test patterns and reset device Status LEDs and pushbutton can be disabled remotely if required.

P3 Signal Protocol Signal type: Gigabit Ethernet Protocol : Proprietary Martin P3™ Hot pluggable: Yes, electrically isolated at all connections Cable type: Ethernet, CAT 5e or better Cable length: Up to 100 m (328 ft.) between any 2 devices, extendable with Ethernet switch or conversion to fiber

Construction Housing: Aluminum 颜色: Matte black Protection rating: IP65 NEMA enclosure rating: Type 3 Effective Projected Area (EPA): 0.22 m2 Corrosion resistance: C5-M (very high corrosivity / marine, ISO 12944) RoHS compliant

Installation 装配: Flown from rigging clamps or free-standing Orientation: Any, except with connectors facing up or lid facing down

Connections Power input: Neutrik PowerCON TRUE1 P3 data in/out: Neutrik EtherCON Cat 6 Combined power & data out: Four 6-pin custom (BBD) IP66-rated sockets
Electrical AC power: 120-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch-mode Typical total power consumption: 1000 W (including full load of connected display devices, all at full intensity) Typical half-cycle RMS inrush current: 20.9 A (At 230 V, 50 Hz) Total power consumption in idle state (at 25° C, all connected devices powered off): 22 W

Thermal 散热: Convection Maximum ambient temperature (Ta max.): 55° C Minimum ambient temperature (Ta min.): -30° C Total heat dissipation (calculated, +/- 10%): 345 BTU/hr. (not including display devices but with system at full load)

Approvals EU safety: EN 60950 EU EMC: EN 55032, EN 55103-2, EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3 US safety: ANSI/UL 60950-1 Canadian safety: CSA C22.2 No. 60950-1

Compatible Fixtures
VDO Sceptron 10
VDO Sceptron 20
VDO Sceptron 40
VDO Fatron 20
VDO Dotron
Exterior PixLine 10
Exterior PixLine 20
Exterior PixLine 40
Exterior Dot-HP RGB
Exterior Dot-HP CW
VC-Grid 15
VC-Grid 25
VC-Grid 30
VC-Grid 60
VC-Strip 15
VC-Strip 25
VC-Strip 30
VC-Strip 60
VC-Dot 1 (via VC-Feeder)
VC-Dot 4 (via VC-Feeder)
VC-Dot 9 (via VC-Feeder)

Related Items Martin P3-PC™ System Controller: Free download from martin.com P3-050 System Controller: P/N 90721090 P3-100 System Controller: P/N 90721010 P3-150 System Controller: P/N 90721015 P3-200 System Controller: P/N 90721020 P3-300 System Controller: P/N 90721060

Accessories
Power connectors:
Cable Connector, Neutrik PowerCON TRUE1 NAC3FX-W (female): P/N 91611789

Power cables:
Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1, 1.5 m (4.9 ft.): P/N 91611797
Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1, 5 m (16.4 ft.): P/N 91611786
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1, 1.5 m (4.9 ft.): P/N 91610173
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1, 5 m (16.4 ft.): P/N 91610174

Data cable:
Data Cable, Cat 6 EtherCON-EtherCON 0.45 m (1.4 ft.): P/N 91611781
Data Cable, Cat 6 EtherCON-EtherCON 1.2 m (3.9 ft.): P/N 91611782
Data Cable, Cat 6 EtherCON-EtherCON 5 m (16.4 ft.): P/N 91611783
Data Connector, Cat 6 EtherCON: P/N 91611787

Adapters for connecting to VC-Dot cables:
Power+Data Adapter M16-BBD 0.25 m (9.8 in.): P/N 91616053
Power+Data Adapter BBD-M16 0.25 m (9.8 in.): P/N 91616054

Rigging hardware:
G-clamp: P/N 91602003
Half-coupler clamp: P/N 91602005
Quick trigger clamp: P/N 91602007
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

Ordering Information Martin P3 PowerPort 1000 IP™, Rental Model: P/N 90721070
