Martin RUSH CS Series

较大的图像

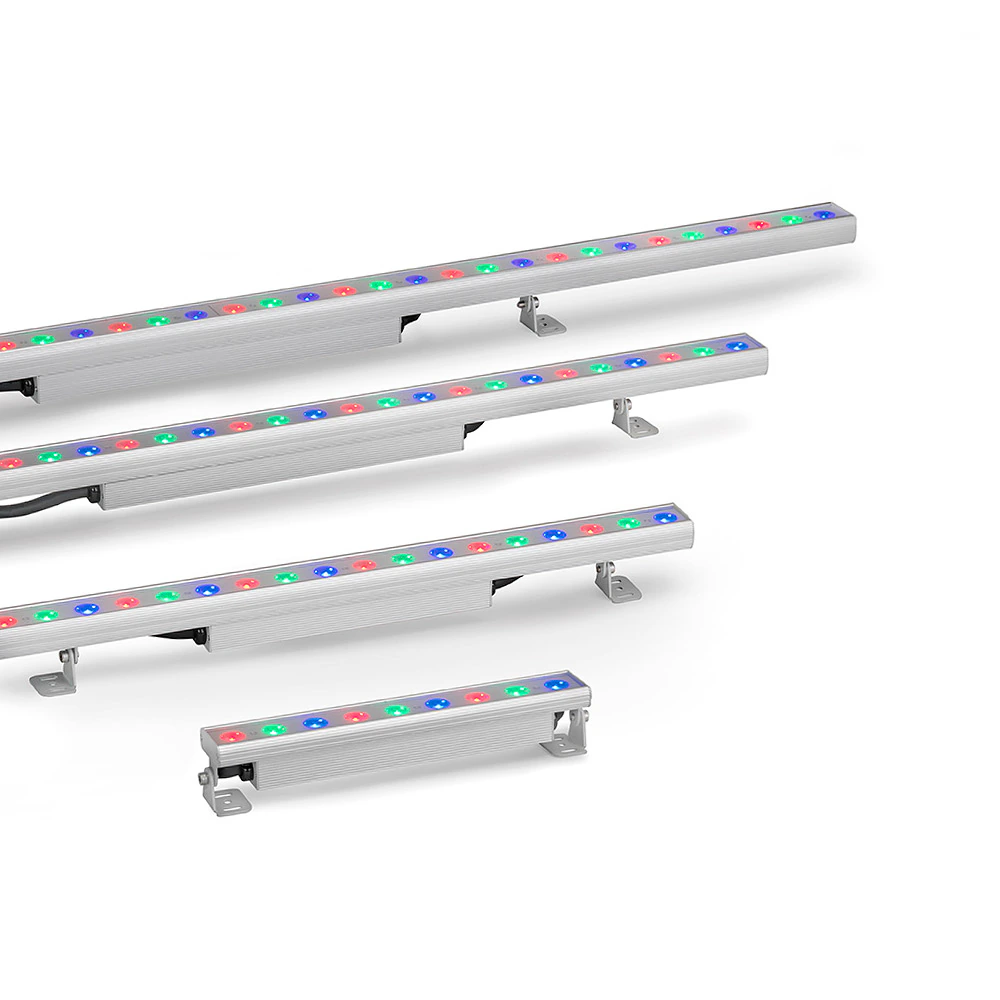

Martin RUSH CS 系列是一款彩色LED凹槽照明系统，专为照亮室内墙面和其他室内空间而设计。这些高输出、经济高效的照明条带非常适合室内大堂、休息室或其他空间。该灯具提供基本和高级控制模式，使这些场所能够灵活地实现所需的精确效果，而无需增加照明设计、安装或操作的复杂性。RUSH CS 系列设计简单易用，适用于各种应用。

产品提供宽照（Wide）和擦墙（Graze）两种配光选项、多种长度可选，集成商可在单个电源单元（PSU）上安装长达10米的灯具。RUSH CS 系列采用混合电源与数据电缆系统，使用单根电缆同时传输电源和数据，大幅降低布线和安装成本。

该系列提供多种规格。RUSH CS 300 Graze（擦墙型）和 300 Wide（宽照型）长度为303毫米（11.9英寸）；RUSH CS 600 Graze 和 600 Wide 长度为603毫米（23.7英寸）；RUSH CS 900 Graze 和 900 Wide 长度为903毫米（35.6英寸）；RUSH CS 1200 Graze 长度为1203毫米（47.4英寸）。

高输出室内LED凹槽照明灯具
多种控制模式和预编程CTC预设值
单个PSU上可轻松安装长达10米

特点

CREE XP-E2 R/G/B LED
18 x 65° 光束角—掠射
124° 光束角—宽角
电子调光
CTC 预设控制通道
易装支架系统
混合电源及数据输入/输出
DMX 和 RDM 控制

性能

物理特性 CS300 Wide:
Length: 303 mm (11.9 in.)
Width: 46 mm (1.8 in.)
Height including bracket: 57 mm (2.2 in.)
Weight: 0.8 kg (1.8 lbs.)
CS300 Graze:
Length: 303 mm (11.9 in.)
Width: 46 mm (1.8 in.)
Height including bracket: 65 mm (2.6 in.)
Weight: 1 kg (2.2 lbs.)
CS600 Wide:
Length: 603 mm (23.7 in.)
Width: 46 mm (1.8 in.)
Height including bracket: 57 mm (2.2 in.)
Weight: 1.1 kg (2.4 lbs.)
CS600 Graze:
Length: 603 mm (23.7 in.)
Width: 46 mm (1.8 in.)
Height including bracket: 65 mm (2.6 in.)
Weight: 1.4 kg (3.1 lbs.)
CS900 Wide:
Length: 903 mm (35.6 in.)
Width: 46 mm (1.8 in.)
Height including bracket: 57 mm (2.2 in.)
Weight: 1.5 kg (3.3 lbs.)
CS900 Graze:
Length: 903 mm (35.6 in.)
Width: 46 mm (1.8 in.)
Height including bracket: 65 mm (2.6 in.)
Weight: 2 kg (4.4 lbs.)
CS1200 Wide:
Length: 1203 mm (47.4 in.)
Width: 46 mm (1.8 in.)
Height including bracket: 57 mm (2.2 in.)
Weight: 1.8 kg (4.0 lbs.)
CS1200 Graze:
Length: 1203 mm (47.4 in.)
Width: 46 mm (1.8 in.)
Height including bracket: 65 mm (2.6 in.)
Weight: 2.5 kg (5.5 lbs.)
Power Supply Unit:
Length: 302 mm (11.9 in.)
Width: 195 mm (7.7 in.)
Height: 58 mm (2.3 in.)
Weight: 4.2 kg (9.3 lbs.)

Control and Programming Control systems: DMX, RDM DMX channels: 3, 6 DMX compliance: USITT DMX512/1990 RDM compliance: ANSI E1.20

Optics CS300/CS600/CS900/CS1200 Wide:
Light source: Cree XP-E2 RGB LEDs
Beam angle: 124°
Minimum LED lifetime: 50 000 hours (to >70% luminous output)*
CS300/CS600/CS900/CS1200 Graze:
Light source: Cree XP-E2 RGB LEDs
Beam angle: 18° x 65°
Minimum LED lifetime: 50,000 hours (to >70% luminous output)*
*Figure obtained under manufacturer's test conditions

Photometric Data CS Wide: (RGB at 100%):
CS300: 432 lumen
CS600: 850 lumen
CS900: 1326 lumen
CS1200: 1760 lumen
CS Graze: (RGB at 100%):
CS300: 455 lumen
CS600: 926 lumen
CS900: 1305 lumen
CS1200: 1710 lumen

* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

Construction Housing: Aluminum 外观颜色: Clear anodized (standard) or white (optional) Lens: Frosted polycarbonate Ingress protection: IP20 RoHS compliant

Installation 装配: Direct with included brackets and user-supplied fasteners Orientation: Any Minimum distance to illuminated surfaces: 0.2 m (8 in.)

Connections Mains input: C13 IEC 60320 DMX in/out: 5-pin XLR Fixture DC power and data in, thru: 6-pin custom connectors

Electrical AC power: 100-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch-mode DC output voltage: 36 V Maximum output current: 12 A 最大功耗: 485 W Mains inlet fuse: T 6.3 A, 250 V
Typical Power and Current Fixture power consumption: 12 W per foot +/- 1 W, PF 0.97 +/- 0.05 Power figures are typical, not maximum. Measurements made at nominal voltage. Allow for +/- 10% deviation. PF = Power factor.

Thermal 散热: Convection Maximum surface temperature: 55° C (131° F) Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): -30° C (-22° F)

Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant

Approvals PSU:
EU Safety: EN60950-1
EU EMC: EN 61000-4-2, EN61000-4-4, EN61000-4-5
US Safety: UL60950-1
US EMC: CFR 47 Part 15 Class A
Australia/NZ: Pending
Wide & Graze fixture:
EU Safety: EN60598-2-1, EN62031, EN61347-1, EN61347-2-11, EN 62471, EN62493
EU EMC: EN55015, EN55103-2, EN55032, EN61000-3-2, EN61000-3-3, EN61547, EN61000-4-2, EN61000-4-4, EN61000-4-5
US Safety: UL 2018
US EMC: CFR 47 Part 15 Class A
Canadian Safety: CSA C22.2 No. 9.0
Australia/NZ: Pending

Included Items Power cables (supplied with RUSH CS Series PSU):
Power input cable, US type: IEC C13 female to NEMA 5-15P male, 1.5 m (4.9 ft.)
Power input cable, universal: IEC C13 female to bare ends, 1.5 m (4.9 ft.)

User manual
Two adjustable mounting brackets

Related Items Martin Companion Cable: P/N 91616091 Martin Companion Software Suite (including firmware uploader)

Accessories Cables:
Power + Data Extension Cable with 6-pin custom connectors, 1 m (3.3 ft.): P/N 91611846
Power + Data Extension Cable with 6-pin custom connectors, 5 m (16.4 ft.): P/N 91611847
Power + Data Extension Cable with 6-pin custom connectors, 10 m (32.8 ft.): P/N 91611848

Ordering Information Wide Lighting Fixtures:
RUSH® CS300 Wide, 124° (1 ft., RGB): P/N 90480175
RUSH® CS600 Wide, 124° (2 ft., RGB): P/N 90480185
RUSH® CS900 Wide, 124° (3 ft., RGB): P/N 90480195
RUSH® CS1200 Wide, 124° (4 ft., RGB): P/N 90480205
Graze Lighting Fixtures:
RUSH® CS300 Graze, 18°x 65° (1 ft., RGB): P/N 90480170
RUSH® CS600 Graze, 18°x 65° (2 ft., RGB): P/N 90480180
RUSH® CS900 Graze, 18°x 65° (3 ft., RGB): P/N 90480190
RUSH® CS1200 Graze, 18°x 65° (4 ft., RGB): P/N 90480200
Power Supply Unit : RUSH® CS Series PSU: P/N 90480210
