RUSH Scanner 1 LED
停产

紧凑型LED电动镜面灯

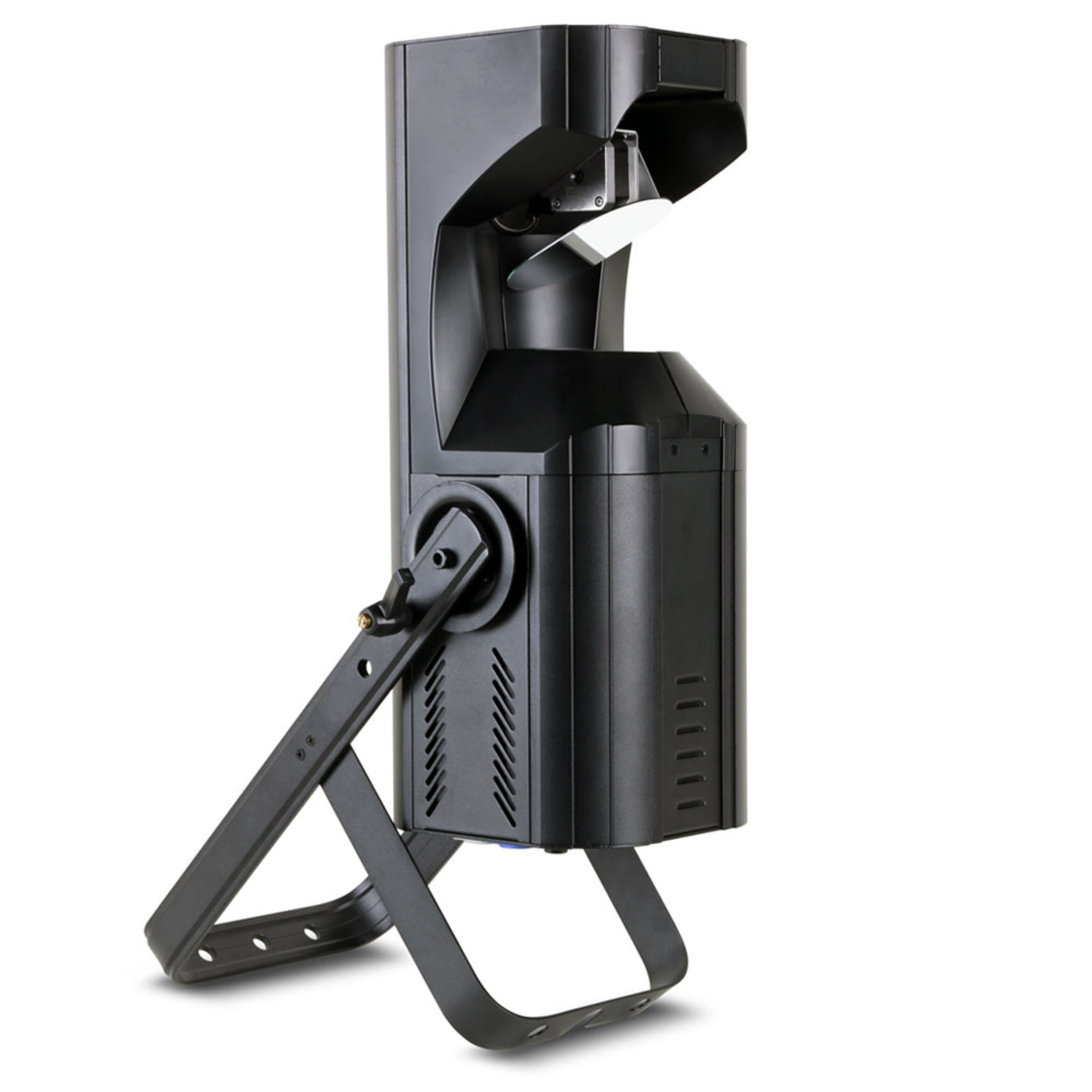

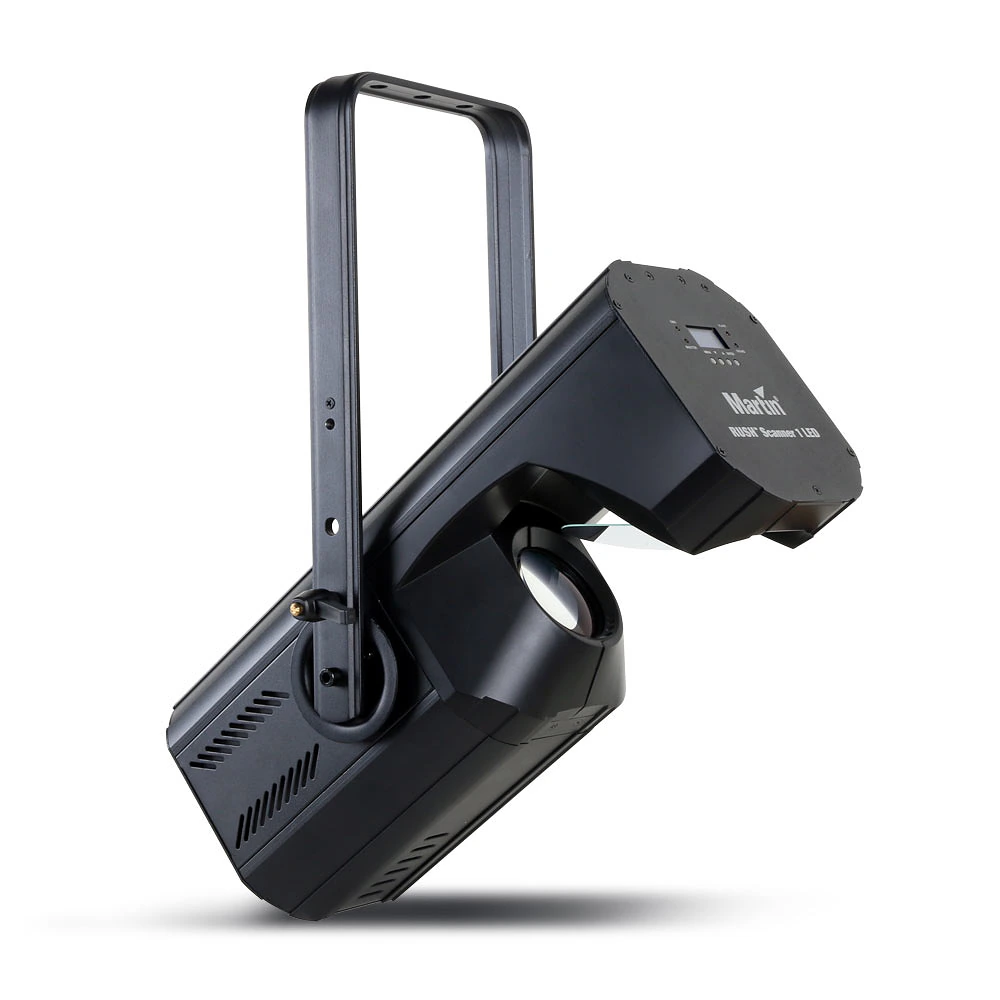

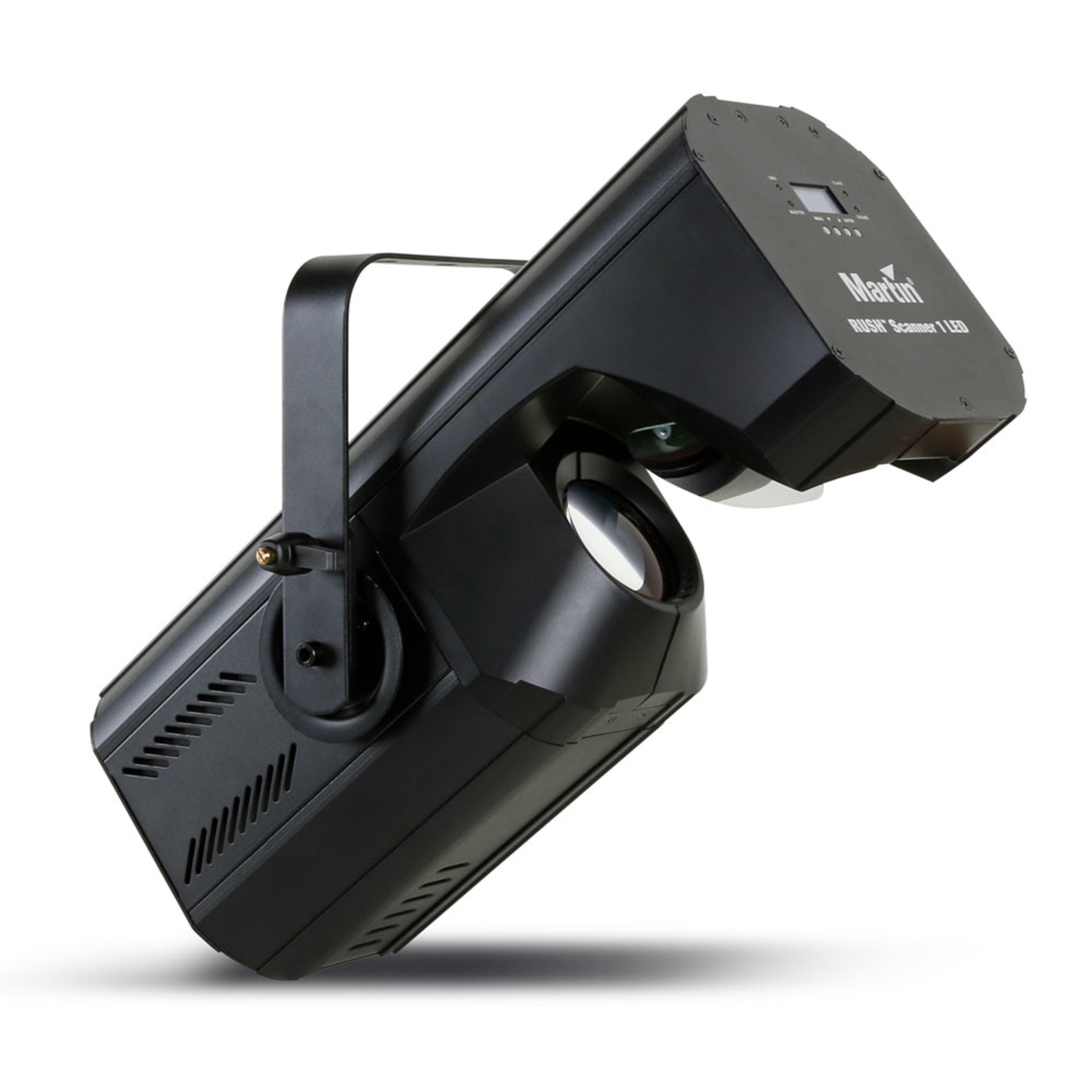

RUSH Scanner 1 LED
较大的图像

The RUSH Scanner 1 LED is designed to enable lighting designers to boost the wow factor and energize crowds with high-speed mid-air looks in a variety of entertainment venues and nightclubs.

This fixture delivers high output via sharp optics and is packed with eye-catching effects.  With its high-speed pan and tilt capabilities, the RUSH Scanner 1 LED is ideal for creating dramatic atmospheres and boosting energy levels on cruise ships, in dance clubs and other nightlife venues.

Compact size, low weight, rugged construction and long-life LEDs also make the RUSH Scanner 1 LED a favorite for rental companies seeking to produce once-in-a-lifetime memorable events through powerful, dynamic lighting effects.

  • Powerful 90 W white LED engine
  • Breathtakingly fast pan and tilt
  • Rich, dynamic feature set including two color wheels, two gobo wheels and rotating prism

视频





特点

  • High-power, long-life 90 W white LED engine
  • Effects include two gobo wheels. two color wheels and a 3-facet prism
  • Sharp projections with motorized focus
  • DMX control and standalone operation
  • Auto trig and music trig standalone modes
  • Compact size and rugged construction

性能

  • 物理特性 长度: 588 mm (23.1 in.) 宽: 303 mm (11.9 in.) 高: 193 mm (7.6 in.) 重量: 9.6 kg (21.1 lbs.)
    Dynamic Effects Color wheel 1: 8 colors plus open, rotation with variable direction and speed Color wheel 2: 8 colors (incl. 1 x UV, 2 x CTC) plus open, rotation with variable direction and speed Rotating gobo wheel: 6 rotating/indexing gobos plus open Prism: Indexing and rotation with variable direction and speed Fixed gobo wheel: 7 gobos plus open Electronic dimming: 0 - 100%, four dimming curve options Electronic shutter effect: Strobe, pulse effects, instant open and blackout Pan: 170°, coarse & fine control Tilt: 75°, coarse & fine control Focus: Motorized
    Control and Programming Control options: DMX, standalone, synchronized master/client Setting and addressing: Control panel with backlit LCD display DMX channels: 16 Standalone trigger options: Sound activation (music trig), auto trig Standalone sequences: 9 pre-programmed shows Standalone memory: 20 scenes Music trig sensitivity: Adjustable DMX compliance: USITT DMX512/1990
    Optics Light source: 90 W LED engine Minimum LED lifetime: 30,000 hours (to >70% luminous output)* Rotating gobo size : 24 mm (0.94 in.) Rotating gobo image size : 20 mm (0.79 in.) *Figure obtained under manufacturer's test conditions.
    Construction Housing: High-impact flame-retardant thermoplastic 颜色: Black Protection rating: IP20
    Installation Mounting points: Adjustable bracket, surface or truss mount Location: Indoor use only, must be fastened to surface or structure Orientation: Any
    Connections AC power in, thru: Neutrik PowerCon DMX data in/out: 3-pin and 5-pin locking XLR
  • Electrical AC power: 100-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch mode

    功耗

    : 168 W     保险丝: T 6.3 A Typical half-cycle RMS inrush current: 10 A
    Typical Power and Current 100 V, 60 Hz: 1.7 A, 170 W, PF 0.997 120 V, 60 Hz: 1.4 A, 165 W, PF 0.994 230 V, 50 Hz: 0.7 A, 162 W, PF 0.937 Figures obtained at nominal voltage. Figures are typical, not maximum, allow for +/- 10% variation.
    Thermal 散热: Forced air Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 0° C (32° F) Total heat dissipation (calculated, +/- 10%): 570 BTU/hr. (at full intensity)
    Approvals EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547 US safety: UL 1573 US EMC: FCC Part 15 Class B Canadian safety: CSA C22.2 No. 166 Canadian EMC: ICES-003 Class A Australia/NZ: RCM
    Included Items

    Power cable, 6 A, 18 AWG, 0.75 mm2, UL- listed, H05VV-F, 1.5 m, without mains plug
    Mounting bracket
    Related Items Martin Companion Cable: P/N 91616091 Martin Companion Software Suite (including firmware uploader): Free download from www.martin.com
    Accessories Power connectors:

    Power Connector PowerCON Male: P/N 91611795
    Power Connector PowerCON Female : P/N 91611794

     Cables, 16 A, for connection to power in chains:

    Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 1.2 m (3.9 ft.): P/N 91611798
    Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 1.2m (3.9 ft.): P/N 91610175
    Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 2.5m (8.2 ft.): P/N 91611799
    Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 2.5m (8.2 ft.): P/N 91610176

     Cables, 16 A, for power input:

    Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800
    Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177
    Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801
    Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178
    (H07RN-F are European approved cables, SJOOW are US approved cables)

     Installation hardware:

    G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
    Quick trigger clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
    Half-coupler clamp: P/N 91602005
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
    Ordering Information RUSH™ Scanner 1 LED in cardboard box: P/N 90480120
