Length:
327 mm (12.8 in.)
Width:
312 mm (12.3 in.)
Height:
207 mm (8.1 in.)
Weight:
4 kg (8.8 lbs.)
Dimming:
0 – 100%, coarse & fine control
Shutter:
Strobe & pulse effects, instant open and blackout
Control systems:
USITT DMX512/1990 with RDM
DMX channels:
3
RDM compliance:
ANSI/ESTA E.120
Interface:
Control panel with backlit LCD display
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
Housing:
Cast aluminum
Color:
Black
Protection rating:
IP20
Mounting points:
Adjustable bracket, surface or truss mount
Location:
Indoor location only
Orientation:
Any
Minimum distance to combustible materials:
0.1 m (4 in.)
Minimum distance to illuminated surfaces:
0.5 m (20 in.)
AC power input/output:
Neutrik PowerCon
DMX/RDM in/out:
5-pin locking XLR
RUSH PAR 4 UV User Manual 31
AC power:
100-240 V nominal, 50/60 Hz
Power supply unit:
Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current:
11.2 A
Recommended Miniature Circuit Breaker when power linking:
Type D*
Maximum total power consumption:
114 W
*Per IEC 60898/UL489/CSA C22.2 No. 5
100 V, 60 Hz:
114 W, 1.2 A, PF 1.000
120 V, 60 Hz:
114 W, 1.0 A, PF 0.996
230 V, 50 Hz:
114 W, 0.5 A, PF 0.933
Measurements made at nominal voltage. Figures are typical, not maximum, allow for a deviation of +/- 10%.
Cooling:
Forced air, temperature-regulated
Maximum ambient temperature (Ta max.):
40° C (104° F)
Minimum ambient temperature (Ta min.):
0° C (32° F)
RoHS:
Compliant
REACH:
Compliant
WEEE:
Compliant
Proposition 65:
Compliant
EU safety:
EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC:
EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
US safety:
UL 1573
US EMC:
47 CFR 15 Class A
Canadian safety:
CSA C22.2 No. 166
Canadian EMC:
ICES-003 Class A
Australia/NZ:
RCM
Power cable, 1.5 m without mains plug
Martin Companion Cable:
P/N 91616091
Martin Companion Software Suite (including firmware uploader):
Free download from www.martin.com
Power connectors:
Power Connector PowerCON Male: P/N 91611795
Power Connector PowerCON Female: P/N 91611794
Cables, 16 A, for connection to power in chains:
Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 1.2 m (3.9 ft.): P/N 91611798
Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 1.2m (3.9 ft.): P/N 91610175
Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 2.5m (8.2 ft.): P/N 91611799
Power relay cable 3 x 14 AWG,SJOOW POWCON-POWCON 2.5m (8.2 ft.): P/N 91610176
Cables, 16 A, for power input:
Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800
Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177
Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801
Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178
(H07RN-F are European approved cables, SJOOW are US approved cables)
Installation hardware:
Half-coupler clamp: P/N 91602005
G-clamp (vertical hanging suspension only): P/N 91602003
Quick-trigger clamp (vertical hanging suspension only): P/N 91602007
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black:
P/N 91604007
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver:
P/N 91604006

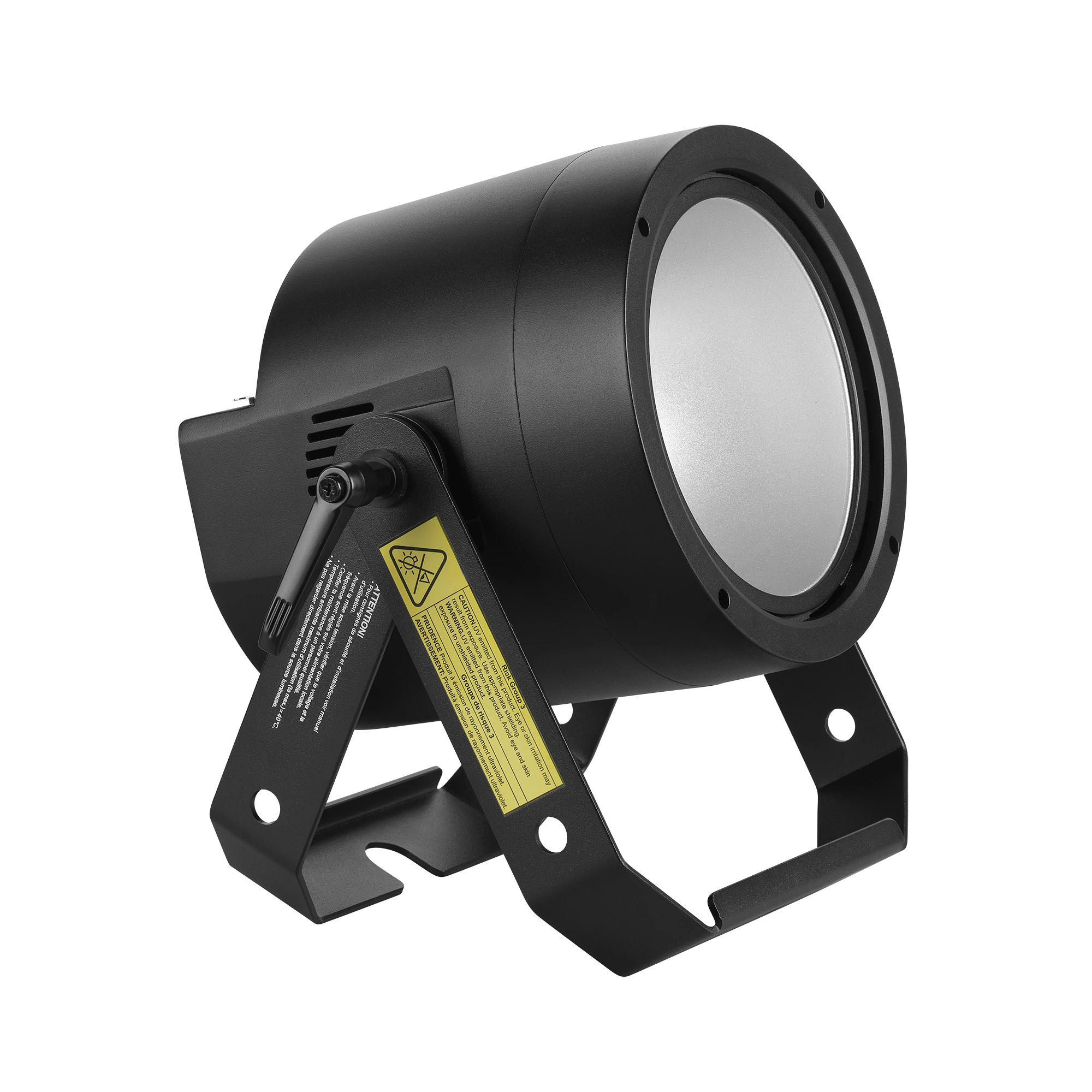

RUSH PAR 4 UV in cardboard box:
P/N 90480140
