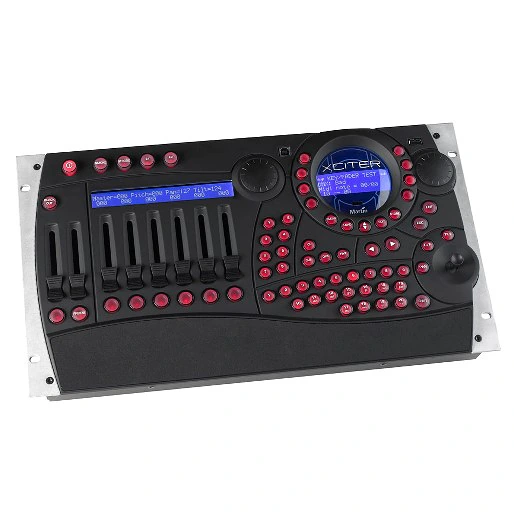

Der Xciter Lighting Controller schließt den Kreis der umfassenden Performance-Kontrolle. Er bietet vollständige Funktionalität auf Ihren Fingerspitzen mit sofortiger Pitch-Anpassung, Freeze, Blitz, Blackout, Master-Fader und mehr. Vom persönlichsten Show bis zur mittelgroßen Performance – der Xciter gibt Ihnen die vollständige Kontrolle.
Größere Bilder
Eigenschaften
- 40 Leuchten mit maximal 48 Kanälen + Dimmer (Gesamtmaximum 512 Kanäle)
- Pan-/Tilt-Formeffekte mit Timing-Effekten hinzufügen
- Beliebige Effekte auf einen einzelnen Kanal einschließlich Timing-Effekten hinzufügen
- Bis zu 10 manuelle Override-Szenen während der Wiedergabe auf Schiebereglern
- Pitch-Fader erhöht oder verringert die Show-Geschwindigkeit bis zum 5-fachen
- Freeze-Taste
- Master-Fader zur Anpassung der allgemeinen Lichtintensität
- 4 programmierbare benutzerdefinierte Tasten.
- Verschiedene Musikfrequenzen als Trigger für beliebige Parameter der Leuchte(n) zuweisen.
- Shows über USB auf PC exportieren, sichern oder importieren.
Mehr Details
Physical
Length: 483 mm
Width: 265 mm
Height: 120 mm
Weight: 4.7 kg
Control and Programming
Up to 160 cues (1 background scene + 4 simultaneous sequences per cue):
Up to 160 cuelists (automated shows with go, chase and wait functionality):
Up to 160 presets on all channels:
40 fixtures of max. 40 channels (total max. 512 physical channels):
20 dimmers of max. 48 channels (total max. 512 physical channels):
Effect generator with adjustable speed, swing and delay:
16-bit fan control on all channels to create spread-outs:
Relative and absolute control possible over all channels:
16-bit control possible on all channels:
UP to 6 sequences can be cross-faded with cues during playback:
Effect macros (several factory-loaded):
Auto-start of automated shows with lamp-on feature:
Built-in Martin fixture library (other libraries can be uploaded via USB):
Library editor to create custom fixture definitions:
Export/import shows and libraries via USB to PC:
Sequence trigger options: Internal clock, manual, audio (4-band, adjustable levels), BPM (with record mode)
Sequence options: Forward, backward, bounce, random, one-shot freeze, one-shot release
Protocol: DMX512
Control/User Interface
Blue backlit LCD display, 2 x 40 characters, to show fader labels (parameters and values):
Blue backlit LCD display, 4 x 20 characters, to show menus and dialogs:
6 x faders and flash buttons for parameter control and direct access scenes during playback:
Master fader:
Master flash button:
Blackout button:
Dim button for direct access to dimmer channels:
Fix button to control fixtures:
Freeze button:
Cue button to launch single cues:
Cuelist button to activate cuelists:
Programmable smoke, strobe, extra 1 and extra 2 buttons:
Soft power button with 2-second switch-off protection:
Pitch fader with center indent for instant playback speed adjustment:
8 x soft buttons to select items in the display:
ESC and ENTER buttons for menu and dialog control:
8 x page buttons to select cue pages and fixture groups:
Previous and next buttons for single-stepping, data entry, navigation:
20 x general-purpose buttons to select cues, select fixtures and enter data:
Shift key to access secondary functions:
Jog wheel to scroll through lists and input data:
Joystick for pan/tilt control with built-in coarse/fine toggle button:
Pan and tilt exclude buttons:
Home button to send all selected fixtures to home positions:
Installation
Table or 19-inch rack (6U) mount:
Connections
DMX in: 5-pin locking XLR
DMX out: 3-pin and 5-pin locking XLR
MIDI in/out/thru: Standard MIDI (5-pin DIN)
Audio trigger signal in: 6.3mm (1/4-inch) mono jack
Audio trigger signal level: Line level
PC/uploader: USB
Desk lamp: USB
I2C expansion port: 5-pin DIN
AC power input: 3-pin IEC
Electrical
AC power: 100-240 V nominal, 50/60 Hz
Approvals
US safety: UL 6500
Canadian safety: CAN/CSA E60065-00
EU safety: EN 60950
EU EMC: EN 55103-1, EN 55103-2
CB Approval: IEC 60065
Included Items
Presentation/Training DVD: 39300000
Installation CD: 39201500
Gooseneck lamp with USB connector: 06220003
1.5 m power cable, 3-pin IEC: 11501012
5 m data cable, 3-pin XLR: 11820008
DMX termination plug, male XLR: 91613017
User manual: 35000119
Ordering Information
Xciter Controller, 90-250 V: 90736000
