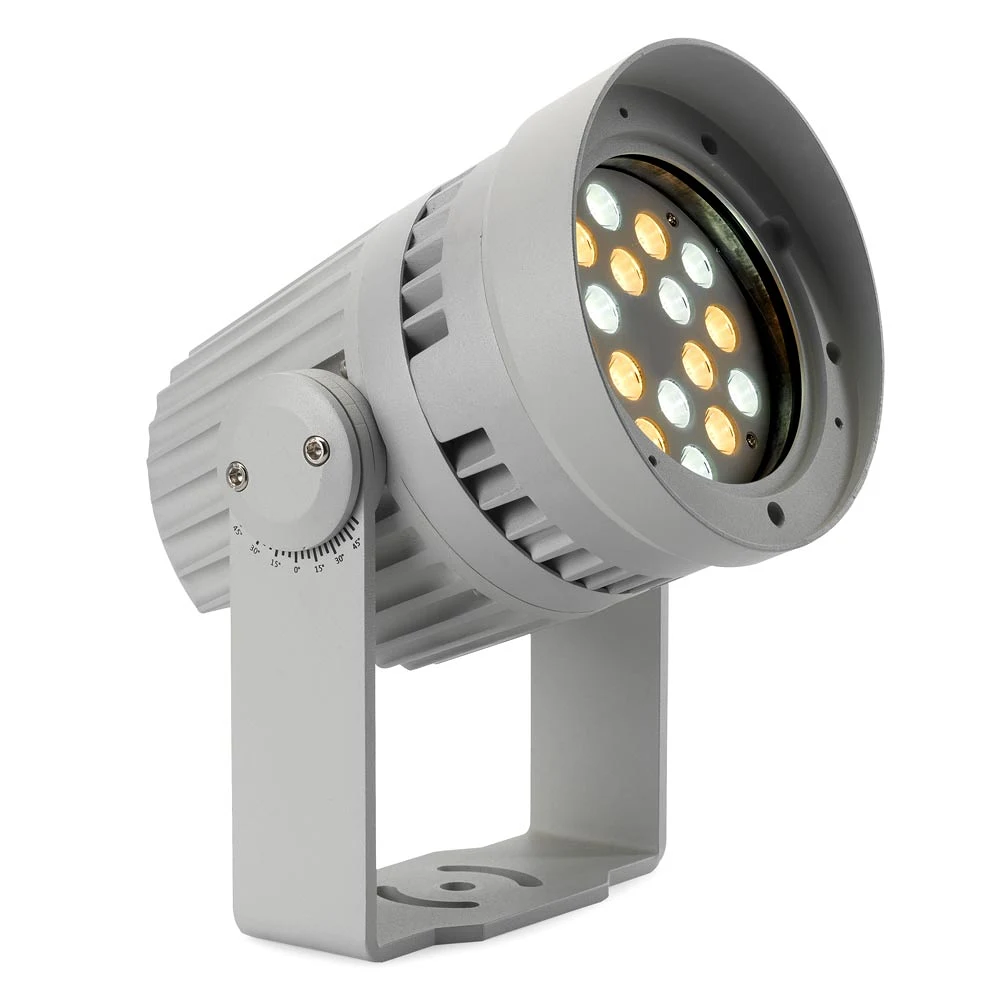

Length:
240 mm (9.5 in.)
Width:
198 mm (7.8 in.)
Height:
257 mm (10.2 in.)
Weight:
5.0 kg (11.1 lbs.)
Intensity:
0 - 100%
Color temperature control:
2700 K - 6500 K
Control systems:
DMX, RDM
Stand-alone control:
Up to 20 scenes with global fade/hold times
Setting, addressing, standalone programming:
Control panel with OLED display
DMX channels:
3-5 depending on DMX mode
Receiver:
RS-485
DMX compliance:
USITT DMX512-A
RDM compliance:
ANSI/ESTA E1.20
Firmware update:
Serial upload via DMX link
Light source:
2700 K and 6500 K LEDs
Minimum LED lifetime:
50,000 hours (to >70% luminous output)*
LED manufacturer:
Cree
Beam Angle Options:
No diffuser: 7.5°
Narrow diffuser: 11.5°
Medium diffuser: 22°
Wide diffuser: 50°
Very wide diffuser: 60°
Asymmetric diffuser: 61° x 15°
Binning:
Tight color and flux binning
Calibration:
Full Gamut Color Calibration
*Figure obtained under manufacturer's test conditions
CRI (Color Rendering Index) :
> 70
CCT:
6500 K (White LED)
Total luminous output:
2400 lumens*
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
Housing:
Cast aluminum
Color:
Light grey (white, black or other colors available on request)
Ingress protection rating:
IP66
Surface treatment:
Anodized and electrostatic powder-coated
Effective Projected Area (EPA):
0.05 m² including snoot
Impact resistance:
IK08 (with display panel cover plate installed)
Corrosion resistance:
C5-M (very high corrosivity / marine, ISO 12944)
Vibration resistance:
1.0g, Sinusoidal (IEC 60068-2-6)
0,7g RMS Random (IEC 60068-2-64)
RoHS compliant
Mounting:
Adjustable yoke
Orientation:
Any
Minimum distance to illuminated surfaces:
0.2 m (0.6 ft.)
Power connection:
1.8 m (5.9 ft.) cable tail without connector
Power input cable type, EU models:
H05RN-F 300/500V, 3 x 0.75 mm2, Ø 7 mm
Power input cable type, US models:
SJOW 18AWG, 300V, WL F1, Ø 8 mm
Data connection:
1.8 m (5.9 ft.) open ended 5-conductor combined input + output cable tail
All cable entries:
IP68 cable gland
AC power:
100 - 240 / 277 V nominal, 50/60 Hz
Power supply unit:
Integrated, auto-sensing multi-voltage
Power Consumption:
5 W (steady state, all LEDs at zero intensity)
Typical half-cycle RMS inrush current:
9.7 A
Maximum total power consumption:
50 W
Surge protection:
4 KV
Max earth leakage:
0.38 mA
100 V, 60 Hz:
0.45 A, 43 W, PF 0.99
120 V, 60 Hz:
0.36 A, 43 W, PF 0.99
230 V, 50 Hz:
0.2 A, 43 W, PF 0.97
277 V, 60 Hz:
0.2 A, 43 W, PF 0.90
Measurements made with fixture in steady state at nominal voltage, ambient temperature (Ta) 20° C (68° F), all LEDs at full intensity. Allow for a deviation of +/- 10%.
Cooling:
Convection
Maximum ambient temperature (Ta max.):
45° C (113° F)*
Minimum ambient temperature (Ta min.):
-30° C (-22° F)**
Maximum surface temperature, steady state, at 40° C ambient:
70° C (158° F)
Total heat dissipation (calculated, +/- 10%):
160 BTU/hr
*Above this temperature, the fixture regulates output to protect from overheating
**Power must be maintained below -20° C (-4° F)
RoHS:
Compliant
REACH:
Compliant
WEEE:
Compliant
Proposition 65:
Compliant
Efficacy (max output):
56 lm/W
LWR*:
480 lm/W (216 lm/lb)
LWR = Lumen-to-Weight Ratio
Global CB Certification/IECEE:
IEC 60598-2-5 (IEC 60598-1)
EU safety:
EN60598-2-5 (EN60598-1), EN62471, EN62493, EN60598-2-1
EU EMC:
EN55015, EN61547, EN61000-3-2, EN6100-3-3, EN61000-4-2, EN6100-4-4, EN6100-4-5
US safety:
ANSI/UL 1598
US EMC:
47 CFR Part 15 Class A
Canadian safety:
CSA C.22.2 No. 250
Australia/NZ:
RCM
India:
BIS
Cover plate for control panel
Martin Companion Cable:
P/N 91616091
Exterior Wash 100 Series, narrow diffuser kit:
P/N 91610145
Exterior Wash 100 Series, medium diffuser kit:
P/N 91610146
Exterior Wash 100 Series, wide diffuser kit:
P/N 91610147
Exterior Wash 100 Series, very wide diffuser kit:
P/N 91610148
Exterior Wash 100 Series, asymmetric diffuser kit:
P/N 91610149
Exterior Wash 100 Series, glare shield / snoot:
P/N 91611740
Exterior Wash 100 honeycomb louvre:
P/N 91611856
Exterior Wash 120, 7°, EU, aluminum:
P/N 90510335
Exterior Wash 120, 7°, US, aluminum:
P/N 90510350
