Martin FiberSource B150

រូបភាពធំជាង

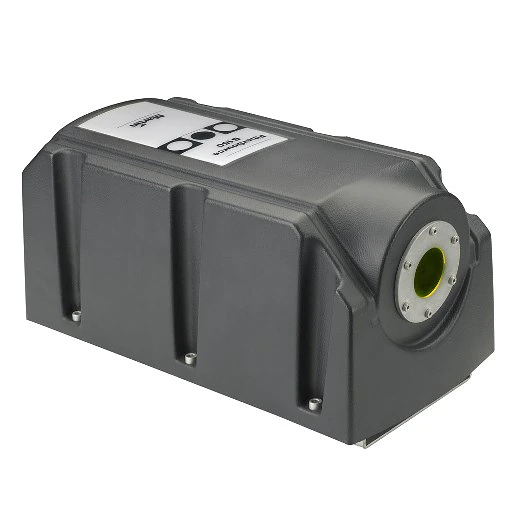

The FiberSource B150 is a simple white light 150 W illuminator for fiber optic installations that can receive up to 800 flexible 1 mm fiber cables.

លក្ខណៈពិសេស

150 W metal halide lamp
0-100 % intensity control
Option of static color filters
Up to 800 fiber cables (1 mm)
Weatherproof rating: IP44

ព័ត៌មានលម្អិត

Physical Length: 398 mm Width: 195 mm Height: 197 mm Weight: 7 kg

Lamp Type: 150 W metal halide Approved lamps: Philips CDM-SA/R 150 Socket: Separate connector for integral lamp wires Control: Remote on/off

Construction Housing: Plastic, ABS Color: Anthracite grey (RAL 7016) Protection rating: IP44

Installation Outdoor orientation: Horizontal Indoor orientation: Any Minimum distance to combustible materials: 0.1 m Minimum clearance around fan and air vents: 0.2 m

Connections Power connection: 1.8 m cable tail

Electrical AC power: 100/120/210/230/250 V, 50/60 Hz Main fuse: 5 AT (slow blow)

Typical Power and Current 100 V, 60 Hz: 188 W, 2.0 A 120 V, 60 Hz: 190 W, 1.7 A 208 V, 50 Hz: 180 W, 1.0 A 230 V, 50 Hz: 184 W, 1.0 A 250 V, 50 Hz: 197 W, 1.0 A Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:

Thermal Maximum ambient temperature (Ta max.): 40° C Maximum surface temperature, steady state, Ta=40° C: 70° C Cooling: Filtered forced air cooling system

Approvals EU safety: EN 60598-2-17 + Corr. A2 EU EMC: EN 55 015, EN 55 103-1, EN 61 547

Included Items Philips CDM-SA/R 150 lamp: 97010113

Accessories Fiber adaptor, 350-800 pcs. (50 pcs. interval) Ø 1mm fiber, D=38 mm: 91611034 Fiber adaptor, 75-350 pcs. (25 pcs. interval) Ø 1 mm fiber, D= 30 mm: 91611035 10 m Light Fiber LF120HL, Ø 12 mm: 91611070 20 m Light Fiber LF120HL, Ø 12 mm: 91611071 60 m Light Fiber LF120HL, Ø 12 mm: 91611072

Spare Parts Philips CDM-SA/R 150 lamp: 97010113 5.0 AT main fuse: 05020018 Air filter: 62400205

Ordering Information FiberSource B150, 230 V, 50 Hz: 90523400 FiberSource B150, 120 V, 60 Hz: 90523300
