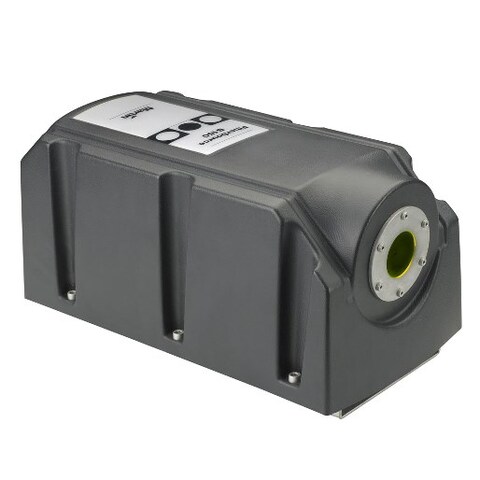

FiberSource B150 (discontinued)

Fibersource b150 large
Larger Images

The FiberSource B150 is a simple white light 150 W illuminator for fiber optic installations that can receive up to 800 flexible 1 mm fiber cables.

Features

  • 150 W metal halide lamp
  • 0-100 % intensity control
  • Option of static color filters
  • Up to 800 fiber cables (1 mm)
  • Weatherproof rating: IP44

Tech Specs

Physical Length: 398 mm Width: 195 mm Height: 197 mm Weight: 7 kg
Lamp Type: 150 W metal halide Approved lamps: Philips CDM-SA/R 150 Socket: Separate connector for integral lamp wires Control: Remote on/off
Construction Housing: Plastic, ABS Color: Anthracite grey (RAL 7016) Protection rating: IP44
Installation Outdoor orientation: Horizontal Indoor orientation: Any Minimum distance to combustible materials: 0.1 m Minimum clearance around fan and air vents: 0.2 m
Connections Power connection: 1.8 m cable tail
Electrical AC power: 100/120/210/230/250 V, 50/60 Hz Main fuse: 5 AT (slow blow)
Typical Power and Current 100 V, 60 Hz: 188 W, 2.0 A 120 V, 60 Hz: 190 W, 1.7 A 208 V, 50 Hz: 180 W, 1.0 A 230 V, 50 Hz: 184 W, 1.0 A 250 V, 50 Hz: 197 W, 1.0 A Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Thermal Maximum ambient temperature (Ta max.): 40° C Maximum surface temperature, steady state, Ta=40° C: 70° C Cooling: Filtered forced air cooling system
Approvals EU safety: EN 60598-2-17 + Corr. A2 EU EMC: EN 55 015, EN 55 103-1, EN 61 547
CE
Included Items Philips CDM-SA/R 150 lamp: 97010113
Accessories Fiber adaptor, 350-800 pcs. (50 pcs. interval) Ø 1mm fiber, D=38 mm: 91611034 Fiber adaptor, 75-350 pcs. (25 pcs. interval) Ø 1 mm fiber, D= 30 mm: 91611035 10 m Light Fiber LF120HL, Ø 12 mm: 91611070 20 m Light Fiber LF120HL, Ø 12 mm: 91611071 60 m Light Fiber LF120HL, Ø 12 mm: 91611072
Spare Parts Philips CDM-SA/R 150 lamp: 97010113 5.0 AT main fuse: 05020018 Air filter: 62400205
Ordering Information FiberSource B150, 230 V, 50 Hz: 90523400 FiberSource B150, 120 V, 60 Hz: 90523300

Downloads

Filename Version Language Size Uploaded
Specifications
Download 17 Specifications en  37.8 KB Jan 14, 2003
Download 17 Technische Daten de  12 KB Nov 02, 2004
Manuals
Download 17 Bedienungsanleitung de  722 KB Nov 02, 2004
Download 17 User manual en  294 KB Jul 12, 2006
Compliances
Download 17 ETL Authorization To Mark en  236 KB Jan 21, 2009
Instructions
CPFC Capacitor Replacement Recommendation en    Oct 21, 2008
Hints And Tips
Discharge Lighting Shutdown Guidelines en    Mar 16, 2008
Improvements
Improved Corrosion Resistance for Fiberport en    Dec 04, 2005
