FiberSource B150 (discontinued)

Larger Images

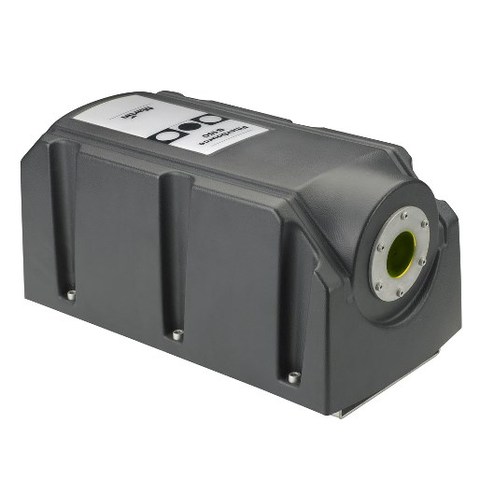

The FiberSource B150 is a simple white light 150 W illuminator for fiber optic installations that can receive up to 800 flexible 1 mm fiber cables.

Features

  • 150 W metal halide lamp
  • 0-100 % intensity control
  • Option of static color filters
  • Up to 800 fiber cables (1 mm)
  • Weatherproof rating: IP44

Specifications

Physical Length: 398 mm Width: 195 mm Height: 197 mm Weight: 7 kg
Lamp Type: 150 W metal halide Approved lamps: Philips CDM-SA/R 150 Socket: Separate connector for integral lamp wires Control: Remote on/off
Construction Housing: Plastic, ABS Color: Anthracite grey (RAL 7016) Protection rating: IP44
Installation Outdoor orientation: Horizontal Indoor orientation: Any Minimum distance to combustible materials: 0.1 m Minimum clearance around fan and air vents: 0.2 m
Connections Power connection: 1.8 m cable tail
Electrical AC power: 100/120/210/230/250 V, 50/60 Hz Main fuse: 5 AT (slow blow)
Typical Power and Current 100 V, 60 Hz: 188 W, 2.0 A 120 V, 60 Hz: 190 W, 1.7 A 208 V, 50 Hz: 180 W, 1.0 A 230 V, 50 Hz: 184 W, 1.0 A 250 V, 50 Hz: 197 W, 1.0 A Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Thermal Maximum ambient temperature (Ta max.): 40° C Maximum surface temperature, steady state, Ta=40° C: 70° C Cooling: Filtered forced air cooling system
Approvals EU safety: EN 60598-2-17 + Corr. A2 EU EMC: EN 55 015, EN 55 103-1, EN 61 547
CE
Included Items Philips CDM-SA/R 150 lamp: 97010113
Accessories Fiber adaptor, 350-800 pcs. (50 pcs. interval) Ø 1mm fiber, D=38 mm: 91611034 Fiber adaptor, 75-350 pcs. (25 pcs. interval) Ø 1 mm fiber, D= 30 mm: 91611035 10 m Light Fiber LF120HL, Ø 12 mm: 91611070 20 m Light Fiber LF120HL, Ø 12 mm: 91611071 60 m Light Fiber LF120HL, Ø 12 mm: 91611072
Spare Parts Philips CDM-SA/R 150 lamp: 97010113 5.0 AT main fuse: 05020018 Air filter: 62400205
Ordering Information FiberSource B150, 230 V, 50 Hz: 90523400 FiberSource B150, 120 V, 60 Hz: 90523300
