Length: 288 mm (11.4 in.)Width: 482.2 mm (19.0 in.), 19-inch rackmountHeight: 43.6 mm (1.8 in.), 1UWeight: 3.6 kg (8.0 lbs.)
Front panel display with 4-button control menu1 x dual-color LED per portMouse & keyboard inputRemote web accessDMX viewer for any physical incoming or outgoing DMX port
520 MHz processor for fast DMX outputEthernetArt-Net-compliant, Art-Net II-compliantACN-readyBuilt-in webpage for quick access and remote setup10/100 Mbit connection8 portsConfigurable as input or outputOpto-isolated circuit for each portUser-definable DMX timings for each portEach port set as output can be set to constantly repeat the last received DMX frame, or only to output new framesRDM-readyDual-color LED for each port8 open-contact inputsInputs transmit Art-Net-compatible contact closures on the networkContact closures can trigger factory and user presets and start cue playback
10 user presets for device configurationM-Series, Maxedia use preset with auto-IP address settingPresets for DMX Hub and Splitter functionalityMergeable setup where multiple inputs are routed in LTP, HTP to one outputPorts assignable to input or outputPorts routable to/from internal ports or to/from any DMX universe on Art-NetPort routing triggerable by contact closure through the use of user presetsDMX channel ranges of ports configurableMerger modules routable between inputs and outputs and/or Art-Net universesChannel ranges can be put in LTP/HTP, copy or fixed value from other channelsAuto or manual IP addressingTracking backup function: automatic handover to another Art-Net signal if one Art-Net signal failsDMX and Art-Net test pattern generatorArt-Net broadcast and unicast compatibleConfiguration files loadable/storable on USB memory sticksFirmware upload via USB memory stick
Housing: Steel and aluminumFinish: Electrostatic powder-coated
19-inch rackmount (1U)
10/100 base-T ethernet port: Neutrik locking RJ45 Ethercon socketDMX in/out ports: 8 x 5-pin female XLRBackup, software upload: USBAC power input: 3-pin IEC male socketAC power throughput: 3-pin IEC female socket
AC power: Auto-ranging 100 - 240 VAC nominal, 50/60 HzMain fuse: 2 x 500 mA T (slow-blow)
100 V, 60 Hz: 220 mA

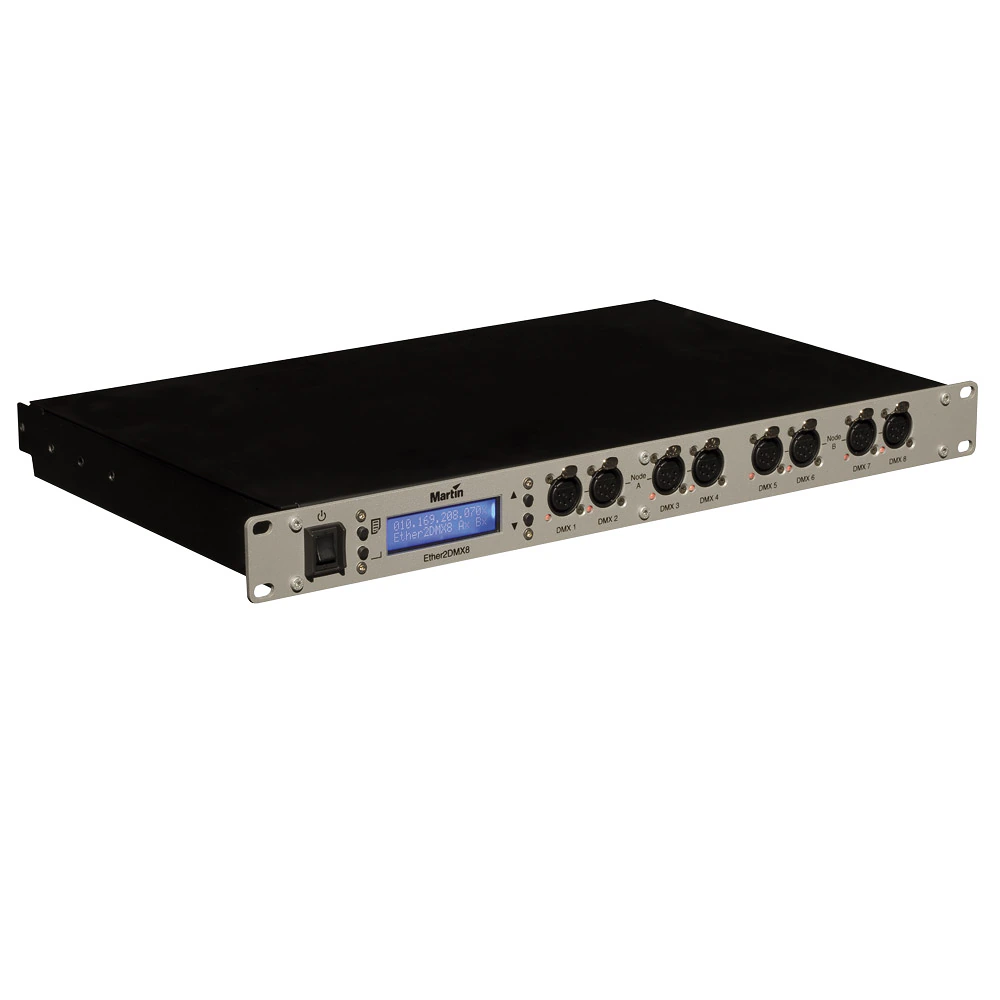

Ether2DMX8: P/N 90758130
