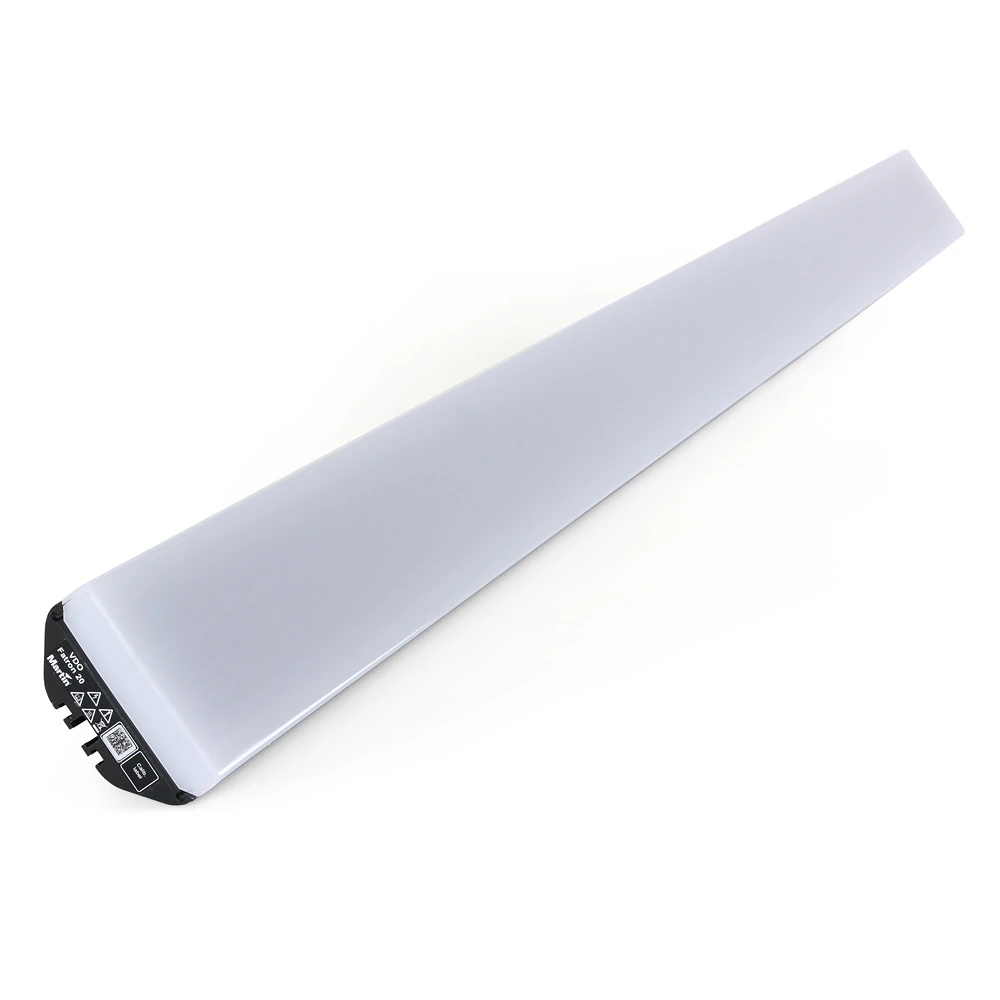

• Physical VDO Fatron™ 20, 320 mm model:

  Length: 320 mm (12.6 in.)
  Width: 80 mm (3.15 in.)
  Height without front: 28 mm (1.10 in.)
  Height with standard front (Square Diffuser): 48 mm (1.89 in.)
  Weight without front: 0.85 kg (1.9 lbs.)
  Weight with standard front (Square Diffuser): 0.95 kg (2.1 lbs.)

  VDO Fatron™ 20, 1000 mm model:

  Length: 1000 mm (39.4 in.)
  Width: 80 mm (3.15 in.)
  Height without front: 28 mm (1.10 in.)
  Height with standard front (Square Diffuser): 48 mm (1.89 in.)
  Weight without front: 2.5 kg (5.6 lbs.)
  Weight with standard front (Square Diffuser): 2.8 kg (6.2 lbs.)

  Control and Programming Control resolution: 16-bit (P3) or 8-bit (DMX) control of each color Control options: Martin P3™ System Controller (via Martin P3 PowerPort™) or DMX Protocol detection: Automatic Setting and addressing: Martin P3™ System Controller or RDM-compliant controller Color and intensity calibration: Pixel-level DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Firmware update: Via Martin P3™ System Controller

  Control modes, direct DMX control: RGB, Basic, Segment and Pixel DMX channels, direct DMX control: 3/10/19/37/55/157 Control modes, DMX via P3: P3 Intensity, P3 RGB, P3 Basic, P3 Hybrid and P3 PixelMap DMX channels, DMX via P3: Wide range of options from 1 to 603

  Control/User Interface Device status: Multi-color visual indication Device test and reset: Magnetic pushbutton to call up local test patterns and reset device
  Optics Minimum LED lifetime: 50,000 hours (to >70% luminous output)*
  *Figure obtained under manufacturer’s test conditions

  Binning: Tight color and flux binning Calibration: Full Gamut Pixel Calibration

  Diffuser/Lens Options:
  Open Front
  Flat Diffuser
  Flat Smoked Diffuser
  Round Diffuser
  Round Smoked Diffuser
  Square Diffuser (supplied standard with fixture)
  Square Smoked Diffuser
  NoBlend Diffuser
  NoBlend Smoked Diffuser
  Lens Array Narrow
  All optical accessories are interchangeable and clip onto fixtures

  Photometric Data Color resolution: 16 bits per color (48 bits per pixel) Viewing angle: 120° x 120° (half-peak)

  Pitch (pixel center-to-center): 20.00 mm Luminous intensity, calibrated mode: 500 cd per meter Luminous output, calibrated mode: 1500 lumen per meter Total output, calibrated mode: 6250 nits (fixtures placed in continuous surface) LED Array VDO Fatron 20 320mm: 4 x 16 LED Array VDO Fatron 20 1000mm: 4 x 50 CCT: 6500 Kelvin LED refresh rate - Standard Mode: 1001 Hz LED refresh rate - High Refresh Mode: 4004 Hz

  * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

  Video Processing

  Brightness control
  Gamma correction and control
  Color temperature control
  Color space control
  Calibration processing
  Synchronization

  Signal Protocol Martin P3 (via Martin P3™ PowerPort) or DMX (direct)
  Construction Color: Matte black Base: Extruded aluminum profile Protection rating: IP65 RoHS compliant
• Installation Mounting: Channel for M6 captive nuts on back of profile Mounting options: M6 bolts, optional sliding bracket (accepts M12 bolt), half coupler, spigot adapter, linear coupler, parallel coupler, pivot coupler, curving coupler, floorstand Orientation: Any
  Connections Power and data input: 6-pin custom (BBD) IP66-rated Power and data thru: 6-pin custom (BBD) IP66-rated Hot plugging compatible
  Electrical Nominal input voltage: 48 VDC +/- 4% Maximum power consumption, all LEDs at full intensity, VDO Fatron™ 20, 320 mm: 20 W Maximum power consumption, all LEDs at full intensity, VDO Fatron™ 20, 1000 mm: 60 W Power supply options: Martin P3™ PowerPort 1500, Martin P3™ PowerPort 1000 IP, Martin™ DMX PowerPort 375, Martin™ IP66 PSU 240W or generic 48 VDC PSU
  Thermal Cooling: Convection Maximum ambient temperature (Ta max.): 45° C (113° F) Minimum ambient temperature (Ta min.): -20° C (-4° F) Maximum total heat dissipation, calculated, +/- 10%:

  VDO Fatron™ 20, 320 mm: 70 BTU/hr
  VDO Fatron™ 20, 1000 mm: 205 BTU/hr

  Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant Efficacy (max output): 22.1 lm/W LWR*: 530 lm/kg (237 lm/lb)

  LWR = Lumen-to-Weight Ratio

  Approvals EU safety: EN 60950-1, EN 60950-22, EN 62471 EU EMC: EN 55024, EN 55032 US safety: UL 60950-1, UL 60950-22 US EMC: CFR Title 47 Part 15 Class A Canadian safety: CSA C22.2 No. 60950-1, No. 60950-22 Canadian EMC: ICES-003 Class A Australia/NZ: RCM India: BIS
  Related Items Martin P3™ PowerPort 1500: P/N 90721040 Martin P3™ PowerPort 1000 IP Rental: P/N 90721070 Martin DMX PowerPort 375: P/N 90721094 Martin™ IP66 PSU 240 W external power supply unit: P/N 90760330 Martin P3-050™ System Controller: P/N 90721090 Martin P3-100™ System Controller: P/N 90721010 Martin P3-150™ System Controller: P/N 90721015 Martin P3-200™ System Controller: P/N 90721020 Martin P3-300™ System Controller: P/N 90721060 Martin P3-PC™ System Controller: Free download from martin.com
  Accessories

  Magnetic Test Tool, set of 10: P/N 91610139

  Hardware:
  VDO Sceptron™/Fatron™ Sliding Brackets, set of 10: P/N 91610123
  Low Profile VDO Sceptron™/Fatron™ Half Coupler: P/N 91611790
  VDO Sceptron™/Fatron™ Linear Coupler: P/N 91611843
  VDO Sceptron™/Fatron™ Spigot Adapter, 28 mm (1.1 in.): P/N 91611791
  VDO Sceptron™/Fatron™ Floorstands, set of two: P/N 91611792
  Super Lightweight Half Coupler Rigging Clamp, black: P/N 91602018
  VDO Fatron™ Curving Coupler: P/N 91610164
  Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
  Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

  Optical 320mm:
  VDO Fatron™ Flat Diffuser, 320 mm: P/N 91611809
  VDO Fatron™ Flat Smoked Diffuser, 320 mm: P/N 91611811
  VDO Fatron™ Round Diffuser, 320 mm: P/N 91611813
  VDO Fatron™ Round Smoked Diffuser, 320 mm: P/N 91611815
  VDO Fatron™ Square Diffuser, 320 mm: P/N 91611817
  VDO Fatron™ Square Smoked Diffuser, 320 mm: P/N 91611819
  VDO Fatron 20™ NoBlend Diffuser, 320 mm: P/N 91611825
  VDO Fatron 20™ NoBlend Smoked Diffuser, 320 mm: P/N 91611827
  VDO Fatron 20™ Lens Array Narrow, 320 mm: P/N 91611831

  Optical 1000mm:
  VDO Fatron™ Flat Diffuser, 1000 mm: P/N 91611810
  VDO Fatron™ Flat Smoked Diffuser, 1000 mm: P/N 91611812
  VDO Fatron™ Round Diffuser, 1000 mm: P/N 91611814
  VDO Fatron™ Round Smoked Diffuser, 1000 mm: P/N 91611816
  VDO Fatron™ Square Diffuser, 1000 mm: P/N 91611818
  VDO Fatron™ Square Smoked Diffuser, 1000 mm: P/N 91611820
  VDO Fatron 20™ NoBlend Diffuser, 1000 mm: P/N 91611826
  VDO Fatron 20™ NoBlend Smoked Diffuser, 1000 mm: P/N 91611828
  VDO Fatron 20™ Lens Array Narrow, 1000 mm: P/N 91611832

  BBD input adapters:
  Power + Data Input Cable, 4-pin male XLR (for P3 PowerPort 1500 or DMX PowerPort 375) to female BBD, 0.25 m (9.8 in.): P/N 91616046
  Power + Data Input Cable, 5-pin male XLR (for DMX) + wire tails (for PSU) to female BBD, 0.25 m (9.8 in.): P/N 91616048
  Power + Data Input Cable, 5-pin male XLR (for DMX) + 4-pin male XLR (for P3 PowerPort) to female BBD, 0.25 m (9.8 in.): P/N 91616049
  Power + Data Input Cable, 5-pin male XLR (for DMX) + male Tripix type (for Martin IP66 PSU 240W) to female BBD, 0.25 m (9.8 in.):P/N 91616050

  BBD output adapters:
  Power + Data Output Cable, male BBD to 4-pin female XLR, 0.25 m (9.8 in.): P/N 91616047
  DMX Lead-out Cable, male BBD to 5-pin female XLR, 0.25 m (9.8 in.): P/N 91616051

  BBD extension cables:
  Power + Data Extension Cable, Rental Type, BBD to BBD, 1 m (3.3 ft.): P/N 91616041
  Power + Data Extension Cable, Rental Type, BBD to BBD, 2.5 m (8.2 ft.): P/N 91616024
  Power + Data Extension Cable, Rental Type, BBD to BBD, 5 m (16.4 ft.): P/N 91616042
  Power + Data Extension Cable, Rental Type, BBD to BBD, 10 m (32.8 ft.): P/N 91616043
  Power + Data Extension Cable, Rental Type, BBD to BBD, 25 m (82.1 ft.): P/N 91616044
  Power + Data Cable, Rental Type, 100 m (328 ft.) bulk without connectors: P/N 91616045

  Connectors:
  Power + Data Cable Connector, BBD, Male: P/N 91611750
  Power + Data Cable Connector, BBD, Female: P/N 91611751
  Blanking Caps for unused female BBD connectors, set of 10: P/N 91616052

  Ordering Information Flightcase for 15 x VDO Fatron™ 320 mm / 5 x VDO Fatron™ 1000 mm: P/N 91515045 Flightcase Extender for 15 x VDO Fatron™ 320 mm / 5 x VDO Fatron™ 1000 mm: P/N 91515046 VDO Fatron 20™, 320mm, in cardboard box: P/N 90357691 VDO Fatron 20™, 1000mm, in cardboard box: P/N 90357692

•
