ELP PAR

STATIC RGBW LED PAR FIXTURE WITH ZOOM

ELP PAR

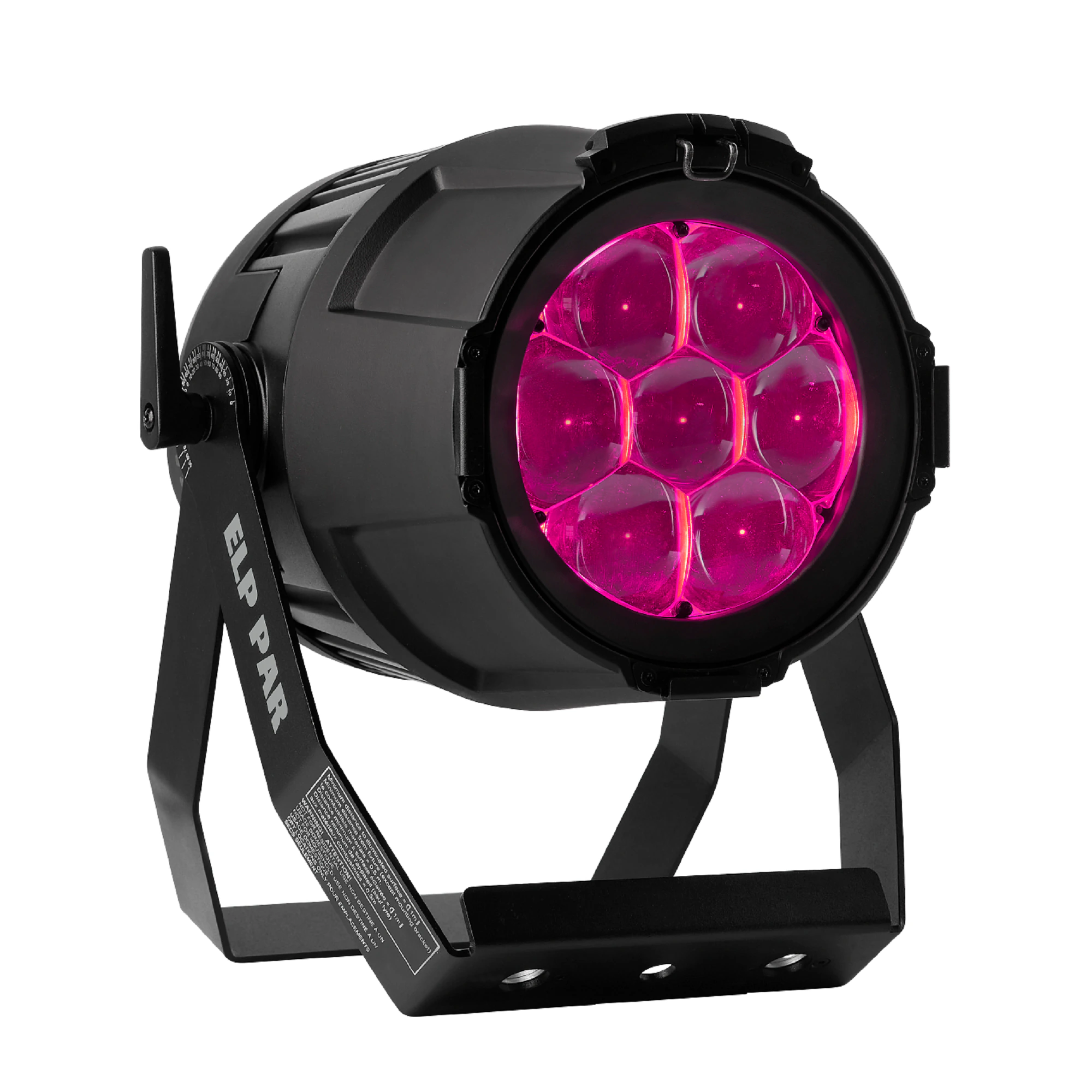

The Martin ELP PAR static LED fixture sets a new standard in the static wash category, with unprecedented lumen output, high-intensity narrow zoom, full-gamut color calibration and smart rigging and control features.

The ELP PAR makes installation faster and easier, thanks to a quick-focus system and bright angle of projection indicators. Other performance enhancements include a wide zoom range that allows both stage illumination and tight mid-air beam effects, an advanced color-calibration system that delivers accurate color reproduction and precise color temperature control, an extended color mode and a CTC channel that allows RGB color mixing around your desired white point.

Whether lighting a theatre production, festival, exhibition or corporate event, fill the stage with color and create stunning beam effects with this versatile LED fixture that sets a new performance benchmark in its class.

  • 远距离照射的卓越亮度

    ELP PAR 采用全新设计的 7 × 40 W RGBW 光引擎，可提供业界领先的 3,500 流明输出——是上一代产品亮度的两倍。它非常适合覆盖需要长距离投射的大型舞台。

  • SMART SETUP FEATURES

    Streamline setup with smart rigging and control features, including omega-bracket-connectivity and bright angle of projection indicator marks for quick and repeatable installation. With the push of a button, the fixture temporarily switches to full-power/open-white/adjustable-zoom settings to instantly confirm projection and focus.

  • 高强度变焦

    ELP PAR 的新一代变焦系统既能营造大面积宽光束泛光，也能呈现高强度空中光束效果，为灯光设计师的创作手段带来全新的灵活性。

  • 全色域色彩校准

    ELP PAR 配备全色域色彩校准系统，可确保各灯具间的色彩再现一致性，并支持专用色温控制通道，用于根据所需色温调整色彩空间。

featured content

远距离照射的卓越亮度

ELP PAR 采用全新设计的 7 × 40 W RGBW 光引擎，可提供业界领先的 3,500 流明输出——是上一代产品亮度的两倍。它非常适合覆盖需要长距离投射的大型舞台。

featured content

SMART SETUP FEATURES

Streamline setup with smart rigging and control features, including omega-bracket-connectivity and bright angle of projection indicator marks for quick and repeatable installation. With the push of a button, the fixture temporarily switches to full-power/open-white/adjustable-zoom settings to instantly confirm projection and focus.

featured content

高强度变焦

ELP PAR 的新一代变焦系统既能营造大面积宽光束泛光，也能呈现高强度空中光束效果，为灯光设计师的创作手段带来全新的灵活性。

featured content

全色域色彩校准

ELP PAR 配备全色域色彩校准系统，可确保各灯具间的色彩再现一致性，并支持专用色温控制通道，用于根据所需色温调整色彩空间。

视频





特点

  • Light engine: 7 x 40W RGBW
  • Full-gamut color-calibration system
  • CTC control: 1,800–12,850 K
  • Lumen output: 3,500 lm
  • Intensity: 390,000 cd
  • Zoom: 4.2 - 58°
  • Quick Focus mode allows installation and focusing without the need for a console operator
  • Clear of projection indicators allow quick installation
  • Angled power and data connections support a clean cable run that does not impede the fixture or installation
  • Included truss and floor-mounting yoke with omega bracket connectivity
  • Low-noise 33 dB Theatre mode operation
  • IP20 rating
  • Dimensions: 312 x 287 x 401 mm (12.3 x 11.3 x 15.8 in) (inc. bracket)
  • Weight: 7.8 kg (17.2 lbs.)

性能

  • 物理特性 长度: 312 mm (12.3 in.) 宽: 287 mm (11.3 in.) 高: 401 mm (15.8 in.) with bracket 重量: 7.8 kg (17.2 lbs.)
    Dynamic Effects Color mixing: RGBW Color presets: 48 color presets, virtual color wheel effects Zoom: Motorized Color temperature control: Variable 1,800 – 12,850K Electronic dimming: 0 - 100%, four dimming curve options Strobe and pulse effects: Variable speed and action, random strobe Electronic shutter effect: Instant open and blackout
    Control and Programming Control options: DMX, RDM 16-bit fine control: Dimming, RGB, zoom LED color management modes: Raw, extended and calibrated DMX address setting: Control panel with OLED display DMX channels: 14 DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Firmware update: via DMX using Martin Companion
    Optics Light source: 7 x 40 W RGBW Osram LEDs Minimum LED lifetime: 50,000 hours (to >70% luminous output)* Beam angle (half-peak): 4.2° - 38.7° Field angle (one-tenth peak): 5.1° - 58.6° Cutoff angle (3%): 5.7° - 69.6° Binning: Tight color and flux binning Calibration: Full Gamut Color Calibration
    *Figure obtained under manufacturer's test conditions
    Photometric Data Wide beam: 3,525 lumens Narrow beam: 1,445 lumens Fixture Center Intensity Narrow Beam: 390,083 cd Fixture Center Intensity Wide beam: 9,957 cd CRI (Color Rendering Index) : >70 CQS (Color Quality Scale): 83 TM-30 Rf (IES TM-30-15 Fidelity Index): 77 TM-30 Rg (IES TM-30-15 Gamut Index): 117 TLCI (Television Lighting Consistency Index): 61 CCT: 6,500 K LED refresh rate - Standard Mode: 3600 Hz LED refresh rate - Theatre Mode: 19200 Hz

    *All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
    Construction Housing: Aluminum and composite Filter mount: 191 x 191 mm (7.5 x 7.5 in.) 颜色: Black Protection rating: IP 20
    Installation Mounting Points: Adjustable bracket, surface or truss mount (fits Martin Omega Bracket) Location: Not for household use, indoor use in dry location only Orientation: Any Minimum distance to combustible materials: 0.5 m (1.7 ft.) Minimum distance to illuminated surfaces: 1 m (3.3 ft.) Minimum clearance around fan and air vents: 0.5 m (1.7 ft.)
    Connections AC power input/output: Neutrik PowerCON TRUE1 TOP DMX and RDM data in/out: Neutrik 5-pin locking XLR
  • Electrical

    AC power: 100-240 V AC nominal, 50/60 Hz
    Power supply unit: Auto-ranging electronic switch mode
    Typical half-cycle RMS inrush current at 240 V, 50 Hz: 8.7 A
    Power Factor: 0.99 @ 100 V / 120 V , 0.94 @ 220 V / 230 V / 240 V
    Typical current draw: 3.0 A @ 100 V / 120 V , 1.7 A @ 220 V / 230 V / 240 V *
    Power Consumption
    Typical: 300 W *
    Hibernation: 3 W *
    * Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
    Typical: full output white, no effects moving, regulated fan speed.
    Hibernation: no output, motors de-energized, fans stopped, wake-up procedure to re-use fixture.

    Thermal 散热: Forced air (temperature regulated, low noise) Total heat dissipation (calculated): 1170 BTU/hr. Maximum surface temperature: 65° C (149° F) Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): -10° C (14° F)
    Acoustic Data Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 37.1 dB(A) Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 33.0 dB(A)
    Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant Efficacy (max output): 14.9 lm/W LWR*: 449 lm/kg (204 lm/lb)

    LWR = Lumen-to-Weight Ratio
    Approvals Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1) EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55015; EN 55032; EN 55035; EN 61000-3-2, EN 61000-3-3, EN 61547 US safety: UL 1573 US EMC: FCC Part 15 Class B Canadian safety: CSA C22.2 No. 166 Canadian EMC: ICES-003 Class B, ICES-005 Class B Australia/NZ: RCM United Kingdom: UKCA
    Included Items

    Adjustable mounting bracket
    Safety and Installation Manual
    Related Items Martin Companion Cable (for firmware update over DMX): P/N 91616091 Martin Companion Software (for firmware update over DMX): Free download from www.martin.com
    Accessories

    Power Input Cables
    Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91611797
    Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 5 m (16.4 ft.) P/N 91611786
    Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91610173
    Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 5 m (16.4 ft.) P/N 91610174

    Power Linking Cables
    Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
    Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
    Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
    Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
    Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
    Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172

    Power Connectors
    Power Connector, Cable Mount, Neutrik TRUE1 NAC3FX-W (female): P/N 91611789HU
    Power Connector, Cable Mount, Neutrik TRUE1 NAC3MX-W (male): P/N 91611788HU

    Installation Hardware
    G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
    Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
    Half-coupler Clamp: P/N 91602005
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
    Ordering Information ELP PAR in cardboard box: P/N MAR-90800000 ELP PAR - White in cardboard box: P/N MAR-90800005

下载

Specifications
  版本 语言 大小 上传日期
file type icon ELP PAR - Spec Sheet
en 版本 B, 更新: 8月 2024
B  en  718.1 KB 8月 2024
file type icon ELP PAR - Acoustic Test Report
en 版本 A, 更新: 4月 2022
A  en  402.6 KB 4月 2022
Manuals
  版本 语言 大小 上传日期
file type icon ELP PAR - User Guide
en 版本 C, 更新: 8月 2023
C  en  1.2 MB 8月 2023
file type icon ELP PAR - User Guide
de 版本 C, 更新: 8月 2023
C  de  1.4 MB 8月 2023
file type icon ELP PAR - User Guide
fr 版本 C, 更新: 8月 2023
C  fr  1.4 MB 8月 2023
file type icon ELP PAR User Guide
fr 版本 C, 更新: 8月 2023
C  fr  1.4 MB 8月 2023
Photometrics
  版本 语言 大小 上传日期
file type icon ELP PAR - Photometric Files
en 版本 A, 更新: 4月 2022
A  en  3.2 MB 4月 2022
Illustrations
  版本 语言 大小 上传日期
file type icon ELP PAR - 2D Dimensions (DWG)
en 版本 A, 更新: 4月 2022
A  en  5.1 MB 4月 2022
file type icon ELP PAR - 2D Dimensions (PDF)
en 版本 A, 更新: 4月 2022
A  en  738.5 KB 4月 2022
Symbols
  版本 语言 大小 上传日期
file type icon AutoCAD 2D Symbols
en 版本 2.9, 更新: 8月 2026
2.9  en  5.2 MB 8月 2026
file type icon AutoCAD 3D Symbols
en 版本 2.9, 更新: 8月 2026
2.9  en  24.6 MB 8月 2026
file type icon Martin Professional GDTF Library
en 版本 A, 更新: 10月 2023
A  en  203 字节 10月 2023
file type icon Vectorworks Symbols
en 版本 4.7, 更新: 8月 2026
4.7  en  286.4 MB 8月 2026
CAD Drawings
  版本 语言 大小 上传日期
file type icon ELP PAR - 3D Drawings
en 版本 A, 更新: 7月 2022
A  en  12.5 MB 7月 2022
BIM Objects
  版本 语言 大小 上传日期
file type icon ELP PAR - BIM Object
en 版本 A, 更新: 10月 2022
A  en  10月 2022
Compliances
  版本 语言 大小 上传日期
file type icon ELP PAR - Déclaration de Conformité Européenne
fr 版本 A, 更新: 5月 2022
A  fr  270.5 KB 5月 2022
file type icon ELP PAR - EU Declaration of Conformity
en 版本 A, 更新: 5月 2022
A  en  285.0 KB 5月 2022
file type icon ELP PAR - UKCA Declaration of Conformity
en 版本 A, 更新: 5月 2022
A  en  303.7 KB 5月 2022
file type icon ELP PAR - FCC Suppliers Declaration of Conformity
en 版本 A, 更新: 4月 2022
A  en  650.8 KB 4月 2022
file type icon ELP PAR - ETL Listing Verification
en 版本 A, 更新: 4月 2022
A  en  111.8 KB 4月 2022
Firmware
  版本 大小 上传日期
download icon for ELP PAR - Firmware ELP PAR - Firmware
版本 1.2.2, 更新: 11月 2026
1.2.2   11月 2026

如果上述任何链接在您的浏览器中显示为奇怪的字符，请右键点击文件以将其保存到您的计算机。
