ELP PAR

STATIC RGBW LED PAR FIXTURE WITH ZOOM

ELP PAR

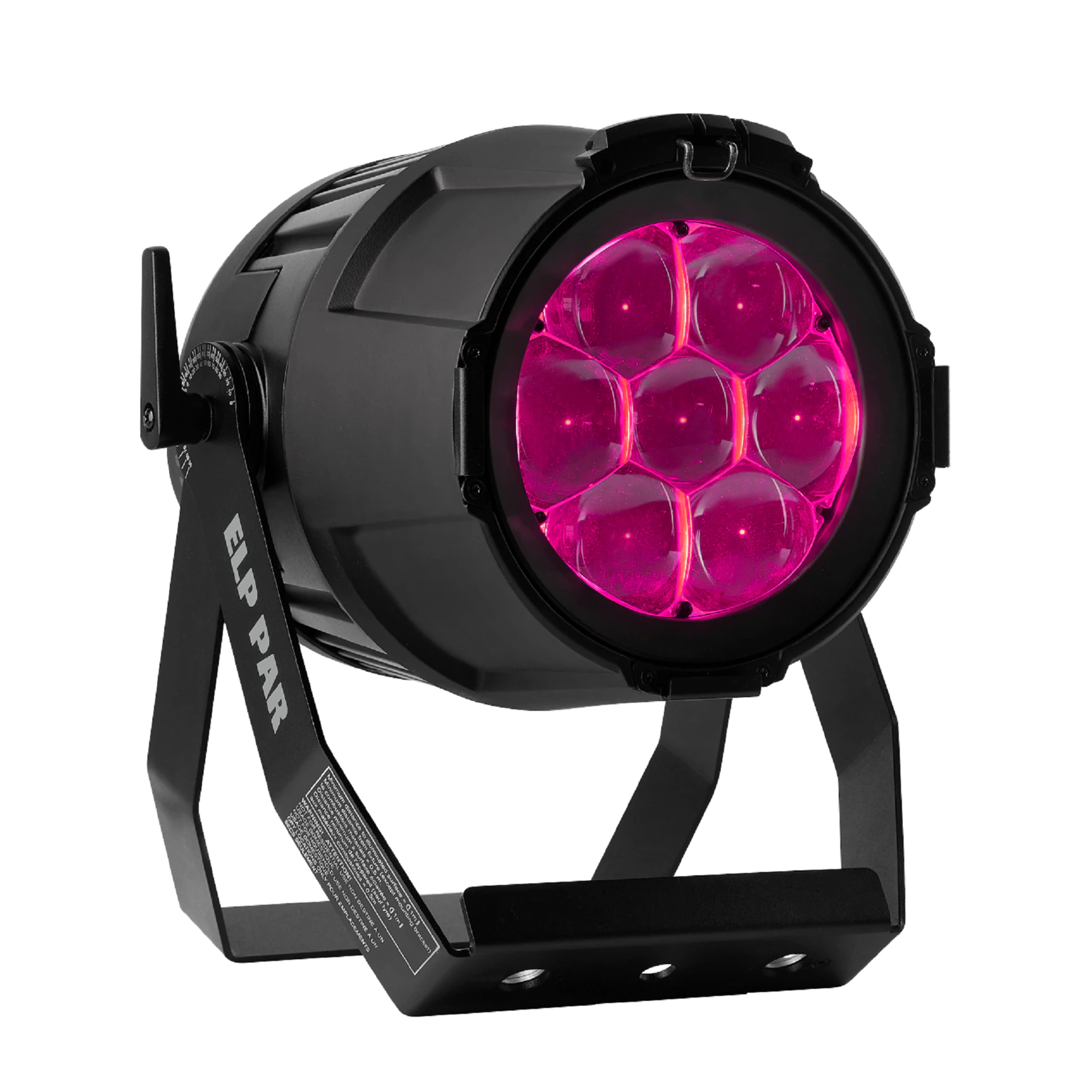

The Martin ELP PAR static LED fixture sets a new standard in the static wash category, with unprecedented lumen output, high-intensity narrow zoom, full-gamut color calibration and smart rigging and control features.

The ELP PAR makes installation faster and easier, thanks to a quick-focus system and bright angle of projection indicators. Other performance enhancements include a wide zoom range that allows both stage illumination and tight mid-air beam effects, an advanced color-calibration system that delivers accurate color reproduction and precise color temperature control, an extended color mode and a CTC channel that can modify RGB channels.

Whether lighting a theatre production, festival, exhibition or corporate event, fill the stage with color and create stunning beam effects with this versatile LED fixture that sets a new performance benchmark in its class.

  • BRIGHTNESS THAT GOES THE DISTANCE

    The ELP PAR delivers a class-leading 3,500 lumens of output—double the brightness of the previous generation—thanks to its newly designed 7 x 40W RGBW light engine. It’s perfect for covering larger stages that require long throw distances.

  • SMART SETUP FEATURES

    Streamline setup with smart rigging and control features, including omega-bracket-connectivity and bright angle of projection indicator marks for quick and repeatable installation. With the push of a button, the fixture temporarily switches to full-power/open-white/adjustable-zoom settings to instantly confirm projection and focus.

  • HIGH-INTENSITY ZOOM

    ELP PAR ’s next-generation zoom system excels at creating both broad washes and high-intensity mid-air effects, bringing new flexibility to the lighting designer’s toolbox.

  • FULL-GAMUT COLOR CALIBRATION

    The ELP PAR features a full-gamut color-calibration system, which allows consistent color reproduction from fixture to fixture and supports a dedicated color temperature control channel for adjusting the color space from the desired color temperature.

featured content

BRIGHTNESS THAT GOES THE DISTANCE

The ELP PAR delivers a class-leading 3,500 lumens of output—double the brightness of the previous generation—thanks to its newly designed 7 x 40W RGBW light engine. It’s perfect for covering larger stages that require long throw distances.

featured content

SMART SETUP FEATURES

Streamline setup with smart rigging and control features, including omega-bracket-connectivity and bright angle of projection indicator marks for quick and repeatable installation. With the push of a button, the fixture temporarily switches to full-power/open-white/adjustable-zoom settings to instantly confirm projection and focus.

featured content

HIGH-INTENSITY ZOOM

ELP PAR ’s next-generation zoom system excels at creating both broad washes and high-intensity mid-air effects, bringing new flexibility to the lighting designer’s toolbox.

featured content

FULL-GAMUT COLOR CALIBRATION

The ELP PAR features a full-gamut color-calibration system, which allows consistent color reproduction from fixture to fixture and supports a dedicated color temperature control channel for adjusting the color space from the desired color temperature.

Features

  • Light engine: 7 x 40W RGBW
  • Full-gamut color-calibration system
  • CTC control: 2,800–10,000 K
  • Lumen output: 3,500
  • Intensity: 390,000 cd
  • Zoom: 4.2 - 58°
  • Quick Focus mode allows installation and focusing without the need for a console operator
  • Clear of projection indicators allow quick installation
  • Angled power and data connections support a clean cable run that does not impede the fixture or installation
  • Included truss and floor-mounting yoke with omega bracket connectivity
  • Low-noise 33 dB Theatre mode operation
  • IP20 rating
  • Dimensions: 312 x 287 x 401 mm (12.3 x 11.3 x 15.8 in) (inc. bracket)
  • Weight: 7.8 kg (17.2 lbs.)

Specifications

  • Physical Length: 312 mm (12.3 in.) Width: 287 mm (11.3 in.) Height: 401 mm (15.8 in.) with bracket Weight: 7.8 kg (17.2 lbs.)
    Dynamic Effects Color mixing: RGBW Color presets: 48 color presets, virtual color wheel effects Color temperature control: Variable 1,800 – 10,000K Electronic dimming: 0 - 100%, four dimming curve options Strobe and pulse effects: Variable speed and action, random strobe Electronic shutter effect: Instant open and blackout Zoom: Motorized
    Control and Programming Control options: DMX, RDM DMX channels: 14 16-bit fine control: Dimming, RGB, zoom LED color management modes: Raw, extended and calibrated DMX address setting: Control panel with OLED display DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Firmware update: via DMX using Martin Companion
    Optics Light source: 7 x 40 W RGBW Osram LEDs Minimum LED lifetime: 50,000 hours (to >70% luminous output)* Beam angle (half-peak): 4.2° - 38.7° Field angle (one-tenth peak): 5.1° - 58.6° Cutoff angle (3%): 5.7° - 69.6° Binning: Tight color and flux binning Calibration: Full Gamut Color Calibration
    *Figure obtained under manufacturer's test conditions
    Photometric Data Wide beam: 3525 lumens Narrow beam: 1445 lumens Fixture Center Intensity Narrow Beam: 390083 cd Fixture Center Intensity Wide beam: 9957 cd CRI (Color Rendering Index) : >70 CQS (Color Quality Scale): 83 TM-30 Rf (IES TM-30-15 Fidelity Index): 77 TM-30 Rg (IES TM-30-15 Gamut Index): 117 TLCI (Television Lighting Consistency Index): 61 CCT: 6500 Kelvin LED refresh rate - Standard Mode: 3600 Hz LED refresh rate - Theatre Mode: 19200 Hz
    Construction Housing: Aluminum and composite Filter mount: 191 x 191 mm (7.5 x 7.5 in.) Color: Black Protection rating: IP 20
    Installation Mounting points: Adjustable bracket, surface or truss mount (fits Martin Omega Bracket) Location: Not for household use, indoor use in dry location only Orientation: Any Minimum distance to combustible materials: 0.5 m (1.7 ft.) Minimum distance to illuminated surfaces: 1 m (3.3 ft.) Minimum clearance around fan and air vents: 0.5 m (1.7 ft.)
    Connections AC power input/output: Neutrik PowerCON TRUE1 TOP DMX and RDM data in/out: Neutrik 5-pin locking XLR
  • Electrical AC power: 100-240 V nominal, 50/60 Hz Typical power consumption: 300 W Typical half-cycle RMS inrush current at 240 VAC: 8.7 A Power supply unit: Auto-ranging electronic switch mode
    Maximum Power and Current 100-120 V, 60 Hz : 3.0 A, 320 W, Power factor 0.991 220-240 V, 50 Hz: 1.7 A, 320 W, Power factor 0.941
    *Measurements made at nominal voltage with all LEDs at full intensity.
    Allow for a deviation of +/- 10%.

    Thermal Maximum surface temperature: 65° C (149° F) Cooling: Forced air (temperature regulated, low noise) Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): -10° C (14° F) Total heat dissipation (calculated): 1170 BTU/hr.
    Acoustic Data Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 37.1 dB(A) Sound Pressure Level (LpA) @ 1 m (constant fan mode low): 33.0 dB(A)
    Approvals Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1) EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55015; EN 55032; EN 55035; EN 61000-3-2, EN 61000-3-3, EN 61547 US safety: UL 1573 US EMC: FCC Part 15 Class B Canadian safety: CSA C22.2 No. 166 Canadian EMC: ICES-003 Class B, ICES-005 Class B Australia/NZ: RCM United Kingdom: UKCA
    Included Items

    Adjustable mounting bracket
    Safety and Installation Manual

    Related Items Martin Companion Cable (for firmware update over DMX): P/N 91616091 Martin Companion Software (for firmware update over DMX): Free download from www.martin.com
    Accessories

    Power Input Cables
    Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91611797
    Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 5 m (16.4 ft.) P/N 91611786
    Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91610173
    Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 5 m (16.4 ft.) P/N 91610174

    Power Linking Cables
    Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
    Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
    Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
    Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
    Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
    Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172

    Power Connectors
    Power Connector, Cable Mount, Neutrik TRUE1 NAC3FX-W (female): P/N 91611789HU
    Power Connector, Cable Mount, Neutrik TRUE1 NAC3MX-W (male): P/N 91611788HU

    Installation Hardware
    G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
    Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
    Half-coupler Clamp: P/N 91602005
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

    Ordering Information ELP PAR in cardboard box: MAR-90800000
