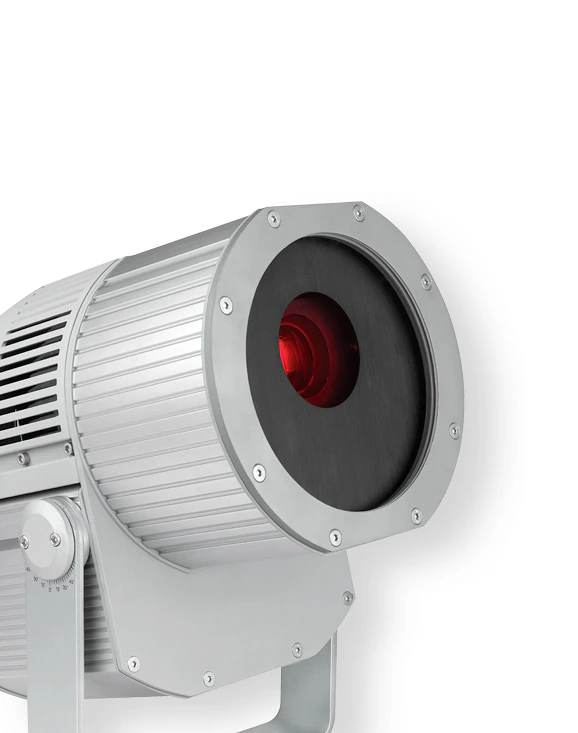

Exterior 400 图像投影机是一款功能强大的工具，可用于在室外照明设计中集成纹理、图案和图形。凭借 7000 多流明的亮度，该灯具可用于明亮而动态的徽标投影以及精确成框。
采用先进的 LED 技术，Exterior 400 图像投影机以其能效、紧凑尺寸和令人难以置信的设计灵活性脱颖而出。
- 明亮而动态的室外 Gobo 投影
- 极高的效率
- 可定制多达 6 个 Gobo 和 8 种自定义颜色，艺术创意空间无限
较大的图像
视频
特点
- 高亮高效LED投影（7000流明以上）
- 可自定义图案多达六个（灯具随附两个）
- 可自定义颜色多达八种（灯具随附蓝色和橙色）
- 坚固耐用的IP65防护等级外壳
- 窄、中、宽波束角选项
- 预编程效果，包括：连续图像旋转、色彩滚动、聚焦、调光
更多详情
PhysicalMedium- and wide-angle modelsLength: 365 mm (14.4 in.) including cable glandWidth: 307 mm (12.1 in.) including mounting yokeHeight: 421 mm (16.6 in.) including mounting yokeWeight: 14 kg (30.9 lbs.)Narrow-angle modelsLength: 425 mm (16.8 in.) including cable glandWidth: 307 mm (12.1 in.) including mounting yokeHeight: 421 mm (16.6 in.) including mounting yokeWeight: 15 kg (33.1 lbs.)
Dynamic EffectsColor wheel: 8 interchangeable dichroic filters + open, full and split colors, continuous rotation, random colorRotating gobo wheel: 6 interchangeable gobos + open, indexing, continuous gobo rotation & scrolling, shakeMotorized iris: 0 - 100%, pulse effectsMotorized focus: Approx. 2 m to infinityElectronic dimming: 0 - 100% continuous dimmingElectronic 'shutter' effect: Strobe, pulse and sinewave intensity modulation effectsPre-programmed effects: Varied macro effects available in stand-alone modeSee Included Items for details of gobos and color filters supplied as standard
Control and ProgrammingControl options: DMX, stand-alone, synchronized (master/client)RDM (Remote Device Management): ImplementedDMX channels: 9DMX address setting: PC with Martin MUM™ software and DABS1™ Interface Box, RDMStand-alone trigger options: Internal timer, including 24-hour clockStand-alone (single fixture and/or synchronized) programming: PC with Martin MUM™ software and DABS1™ hardware interfaceStand-alone program capacity: Up to 100 scenesDMX compliance: USITT DMX512-ARDM compliance: ANSI/ESTA E1.20Receiver: RS-485Firmware update: Serial upload via DMX link
OpticsLight source: 7 x Luminus CBT-90 (50 W) LEDsWhite LED: 6500 KMinimum LED lifetime: 60 000 hours (to >70% luminous output)**Figure obtained under manufacturer's test conditions
ConstructionColor: Clear anodized, white, custom colors to special orderHousing: Anodized aluminumMounting bracket: 8 mm (0.32 in.) anodized aluminumFront glass: 6 mm (0.24 in.) anti-reflection coatedProtection rating: IP65
GobosOutside diameter: 27.9 mm +0/- 0.3 mm (1.1 in +0/-0.012 in.)Maximum image diameter: 23 mm (0.91 in.)Maximum thickness: 1.8 mm (0.07 in.)Recommended glass: High-temperature Borofloat or better with dichroic or enhanced aluminum coatingRecommended metal: Aluminum (steel for temporary use only)
InstallationOrientation: AnyMounting: Flat surface at any angle, pedestal or other suitable supportVertical aiming: 330°Minimum distance to illuminated surfaces: 0.5 m (1.7 ft.)
ConnectionsPower connection: 1.8 m (5.9 ft.) cable tailPower cable entry: IP68 cable glandData connection: 1.8 m (5.9 ft.) combined input + output cable tailData cable entry: IP68 cable gland
ElectricalAC power: 100-240 V nominal, 50/60 HzTypical power consumption, all effects static, zero light output: 13 WPower supply unit: Integrated, auto-sensing multi-voltage
Typical Power and Current100 V, 50 Hz: 422 W, 4.2 A, PF 0.995100 V, 60 Hz: 418 W, 4.2 A, PF 0.995110 V, 60 Hz: 417 W, 3.8 A, PF 0.994120 V, 60 Hz: 415 W, 3.5 A, PF 0.992208 V, 60 Hz: 409 W, 2.1 A, PF 0.957230 V, 50 Hz: 409 W, 1.9 A, PF 0.960240 V, 50 Hz: 408 W, 1.8 A, PF 0.954Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
ThermalCooling: ConvectionMaximum ambient temperature (Ta max.): 45° C (113° F)Minimum ambient temperature (Ta min.): -30° C (-22° F) *Maximum surface temperature, steady state, at 40° C ambient: 75° C (167° F)Total heat dissipation (calculated, +/- 10%): 1440 BTU/hr.*AC mains power must remain applied if the ambient temperature falls below 0° C
ApprovalsEU safety: EN 60598-2-5 (EN 60598-1), IEC/EN 60825-1EU EMC: EN 55015, EN 61000-3-2, EN 61000-3-3, EN 61547US safety (US model): UL 1573, UL 1598US EMC (US model): FCC Part 15 Class ACanadian safety (US model): CSA C22.2 No. 166, CSA C22.2 No. 250.0
Included ItemsAdjustable mounting yokeWashers for use with mounting fastenersHard-wired 1.8 m (5.9 ft.) power and data in/out cable tails without connectorsColor filter, Blue B04-6: P/N 62327198Color filter, Orange B09-6: P/N 623272016 x gobo holdersGobo, Tight Stripple, glass: P/N 43072011Gobo, Dot Breakup Small, glass: P/N 43072009User manualOptical components are supplied installed
AccessoriesSafety eyebolt: P/N 916112393-pin male XLR connector, cable-type, IP65: P/N 916113063-pin female XLR connector, cable-type, IP65: P/N 91611307Extended mounting bracket: P/N 91611570A wide range of filters and gobos for this product is available from Martin™
Related ItemsMartin DABS1™ USB interface box incl. cables: P/N 90758090Martin RDM 5.5 Splitter™: P/N 90758150Martin M-PC V3™ Pro (up to 64 DMX universes) incl. Martin USB Duo™: P/N 90732070Martin M-PC V3™ Basic (up to 8 DMX universes) incl. Martin USB Duo™: P/N 90732010Martin USB Duo™ USB/DMX Interface Box: P/N 90703010
Ordering InformationExterior 400 IP™ Narrow, EU: P/N 90356500Exterior 400 IP™ Narrow, US: P/N 90356510Exterior 400 IP™ Medium, EU: P/N 90507050Exterior 400 IP™ Medium, US: P/N 90507060Exterior 400 IP™ Wide, EU: P/N 90356540Exterior 400 IP™ Wide, US: P/N 90356550
