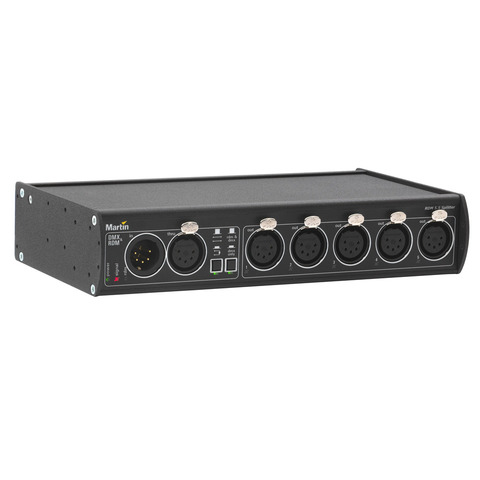

Martin RDM 5.5 分配器是任何控制器或 DMX/RDM 设备的完美搭档。Martin 5.5 分配器的主要目的是在长距离或多条 DMX 信号线路上保持正确的数据传输。该分配器可增强微弱的 DMX 信号，使其恢复到原始输出电平，防止信号变弱到无法被 DMX 设备识别。DMX 中断通常由劣质电缆或连接不良引起。Martin RDM 5.5 分配器可帮助改善信号。
- 5 针 XLR 输入和输出 DMX-RDM E1.20 分配器/增强器
- 光隔离 DMX 输出端口
- 机架、桁架和墙面可安装
较大的图像
特点
- DMX 分配器/增强器
- 光隔离 DMX 输出端口
- DMX 环路通过端口，内置终止
- 5 针 XLR 输入和输出
- 符合 RDM E1.20 标准
- 针对 Martin 灯具固件上传优化
- 通用电源
- PowerCon 连接器输入/输出，便于菊花链连接
- 机架、桁架和墙面安装
- 轻巧且坚固的构造
性能
-
物理特性 宽: 220 mm (8.7 in.) 高: 45 mm (1.8 in.) 厚: 125 mm (5.0 in.) 重量: 0.9 kg (2.0 lbs.)Data signal DMX: ANSI E1.11 (USITT DMX 512-A) RDM : ANSI E1.20 Electrical standard: EIA-485 Recommended cable type: STP (Shielded Twisted Pair) Recommended cable gauge: 22 or 24 AWGConstruction Housing: Aluminum 外观颜色: Electrostatic powder-coatedConnections Data input: 5-pin XLR male Data throughput (not amplified or branched): 5-pin XLR female Data outputs (optically isolated and amplified): 5 x 5-pin XLR female AC power input: Neutrik PowerCon AC power throughput: Neutrik PowerConElectrical AC power: 100-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch-mode Typical power consumption: 4 W Power consumption figures are typical, not maximum. Allow for +/-10% variation.
-
Thermal Maximum ambient temperature (Ta max.): 55° C Minimum ambient temperature (Ta min.): -30° CApprovals EU safety: EN 60950-1 EU EMC: EN 55022, EN 55024, EN 55103-1, EN 55103-2 US safety: UL 508 US EMC: FCC Part 15 Class A Canadian safety: CAN/CSA C22.2 No. 14 Canadian EMC: ICES-003 Class A Australia/NZ: C-TICK N4241Included Items
4 x screws to join two devices for rack mounting
2 x L-brackets + 8 x screws for 19-inch rack mounting two Splitters (1U) or surface mounting
Neutrik PowerCon NAC3FCA male input connectorRelated Items Martin™ DMX 5.3 Splitter: P/N 90758140Accessories Power connectors:Power Connector PowerCON Male: P/N 91611795
Cables, 16 A, for connection to power in chains:
Power Connector PowerCON Female : P/N 91611794Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 1.2 m (3.9 ft.): P/N 91611798
Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 1.2m (3.9 ft.): P/N 91610175
Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 2.5m (8.2 ft.): P/N 91611799
Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 2.5m (8.2 ft.): P/N 91610176(H07RN-F are European approved cables, SJOOW are US approved cables)
Cables, 16 A, for power input:Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800
Installation hardware:
Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177
Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801
Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178Half-coupler clamp: P/N 91602005
G-clamp:P/N 91602003
Quick-trigger clamp: P/N 91602007
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007Ordering Information Martin RDM 5.5 Splitter™: P/N 90758150
下载
Specifications
| 大小 | |
|
|
249.9 KB |
更新: 10月 2020
Manuals
| 大小 | |
|
|
1.1 MB |
Compliances
| 大小 | |
| 339.7 KB | |
|
|
51.6 KB |
