• Physical Width: 220 mm (8.7 in.) Height: 45 mm (1.8 in.) Depth: 125 mm (5.0 in.) Weight: 0.9 kg (2.0 lbs.)
  Data signal DMX: ANSI E1.11 (USITT DMX 512-A) RDM : ANSI E1.20 Electrical standard: EIA-485 Recommended cable type: STP (Shielded Twisted Pair) Recommended cable gauge: 22 or 24 AWG
  Construction Housing: Aluminum Finish: Electrostatic powder-coated
  Connections Data input: 5-pin XLR male Data throughput (not amplified or branched): 5-pin XLR female Data outputs (optically isolated and amplified): 5 x 5-pin XLR female AC power input: Neutrik PowerCon AC power throughput: Neutrik PowerCon
  Electrical AC power: 100-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch-mode Typical power consumption: 4 W Power consumption figures are typical, not maximum. Allow for +/-10% variation.
• Thermal Maximum ambient temperature (Ta max.): 55° C Minimum ambient temperature (Ta min.): -30° C
  Approvals EU safety: EN 60950-1 EU EMC: EN 55022, EN 55024, EN 55103-1, EN 55103-2 US safety: UL 508 US EMC: FCC Part 15 Class A Canadian safety: CAN/CSA C22.2 No. 14 Canadian EMC: ICES-003 Class A Australia/NZ: C-TICK N4241
  Included Items

  4 x screws to join two devices for rack mounting
  2 x L-brackets + 8 x screws for 19-inch rack mounting two Splitters (1U) or surface mounting
  Neutrik PowerCon NAC3FCA male input connector

  Related Items Martin™ DMX 5.3 Splitter: P/N 90758140
  Accessories Power connectors:

  Power Connector PowerCON Male: P/N 91611795
  Power Connector PowerCON Female : P/N 91611794

  Cables, 16 A, for connection to power in chains:

  Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 1.2 m (3.9 ft.): P/N 91611798
  Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 1.2m (3.9 ft.): P/N 91610175
  Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 2.5m (8.2 ft.): P/N 91611799
  Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 2.5m (8.2 ft.): P/N 91610176

  (H07RN-F are European approved cables, SJOOW are US approved cables)

  Cables, 16 A, for power input:

  Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800
  Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177
  Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801
  Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178

  Installation hardware:

  Half-coupler clamp: P/N 91602005
  G-clamp:P/N 91602003
  Quick-trigger clamp: P/N 91602007
  Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
  Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

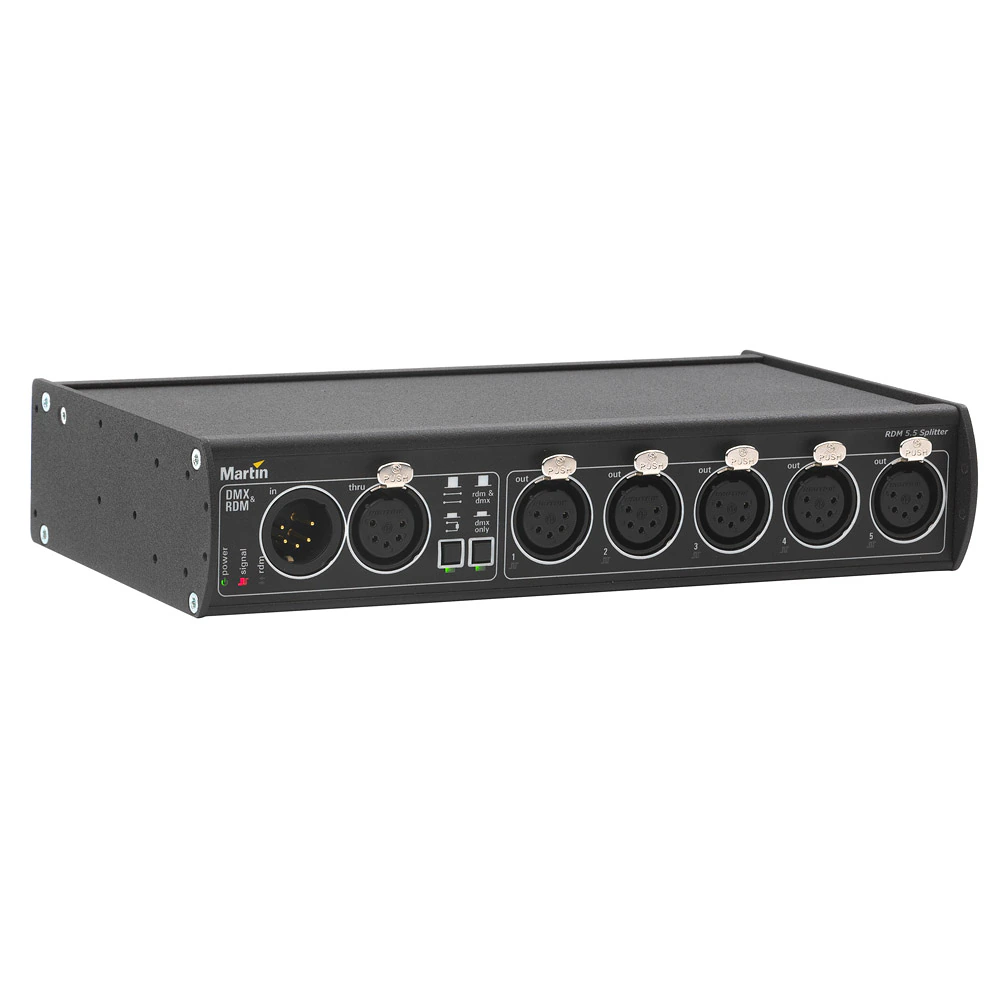

  Ordering Information Martin RDM 5.5 Splitter™: P/N 90758150

•
