Martin RDM 5.5 Splitter (discontinued)

5 port DMX/RDM splitter with 5 pole XLR connectors

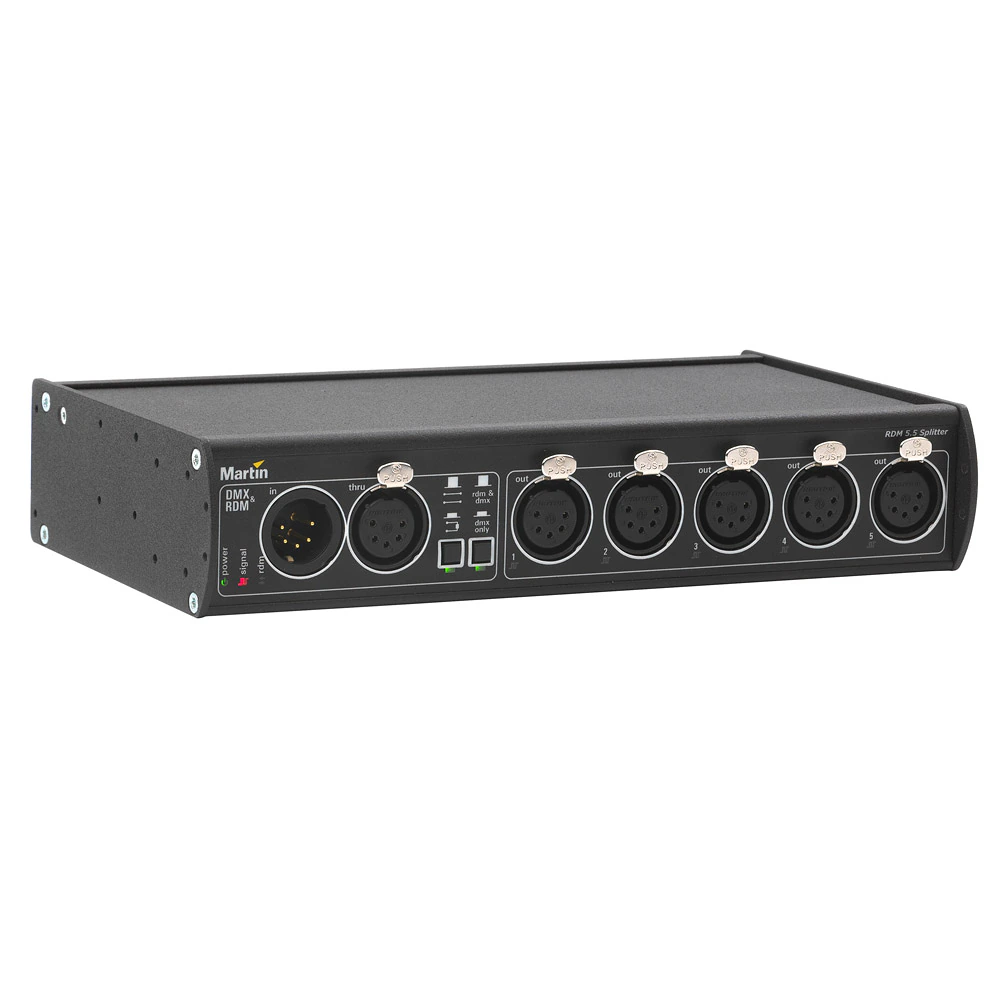

Martin RDM 5.5 Splitter
Larger Images

The Martin RDM 5.5 Splitter is the perfect companion to any controller or DMX/RDM device. The main purpose of the Martin 5.5 Splitter is to maintain proper data over long or several runs of DMX signal. The Splitter boosts the weak DMX signal to its original output level before it becomes too low to be read by DMX devices. Disruption of DMX is often caused by bad cables or bad connections. The Martin RDM 5.5 Splitter will help to rectify the signal.

  • 5-pin XLR Input and Outputs DMX-RDM E1.20 Splitter/Booster
  • Opto-isolated DMX Output ports
  • Rack, truss and wall mountable

Features

  • DMX Splitter / Booster
  • Opto-isolated DMX Output ports
  • DMX loop through port with built-in termination
  • 5-pin XLR Input and Outputs
  • RDM E1.20 compliant
  • Optimized for Martin fixture firmware upload
  • Universal power supply
  • PowerCon connectors in/out for easy daisy-chaining
  • Rack, truss and wall mountable
  • Lightweight yet robust construction

Specifications

  • Physical Width: 220 mm (8.7 in.) Height: 45 mm (1.8 in.) Depth: 125 mm (5.0 in.) Weight: 0.9 kg (2.0 lbs.)
    Data signal DMX: ANSI E1.11 (USITT DMX 512-A) RDM : ANSI E1.20 Electrical standard: EIA-485 Recommended cable type: STP (Shielded Twisted Pair) Recommended cable gauge: 22 or 24 AWG
    Construction Housing: Aluminum Finish: Electrostatic powder-coated
    Connections Data input: 5-pin XLR male Data throughput (not amplified or branched): 5-pin XLR female Data outputs (optically isolated and amplified): 5 x 5-pin XLR female AC power input: Neutrik PowerCon AC power throughput: Neutrik PowerCon
    Electrical AC power: 100-240 V nominal, 50/60 Hz Typical power consumption: 4 W Power supply unit: Auto-ranging electronic switch-mode Power consumption figures are typical, not maximum. Allow for +/-10% variation.
  • Thermal Maximum ambient temperature (Ta max.): 55° C Minimum ambient temperature (Ta min.): -30° C
    Approvals EU safety: EN 60950-1 EU EMC: EN 55022, EN 55024, EN 55103-1, EN 55103-2 US safety: UL 508 US EMC: FCC Part 15 Class A Canadian safety: CAN/CSA C22.2 No. 14 Canadian EMC: ICES-003 Class A Australia/NZ: C-TICK N4241
    Included Items

    4 x screws to join two devices for rack mounting
    2 x L-brackets + 8 x screws for 19-inch rack mounting two Splitters (1U) or surface mounting
    Neutrik PowerCon NAC3FCA male input connector

    Related Items Martin™ DMX 5.3 Splitter: P/N 90758140
    Accessories Power connectors:

    Power Connector PowerCON Male: P/N 91611795
    Power Connector PowerCON Female : P/N 91611794

    Cables, 16 A, for connection to power in chains:

    Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 1.2 m (3.9 ft.): P/N 91611798
    Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 1.2m (3.9 ft.): P/N 91610175
    Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 2.5m (8.2 ft.): P/N 91611799
    Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 2.5m (8.2 ft.): P/N 91610176

    (H07RN-F are European approved cables, SJOOW are US approved cables)

    Cables, 16 A, for power input:

    Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800
    Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177
    Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801
    Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178

    Installation hardware:

    Half-coupler clamp: P/N 91602005
    G-clamp:P/N 91602003
    Quick-trigger clamp: P/N 91602007
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

    Ordering Information Martin RDM 5.5 Splitter™: P/N 90758150
