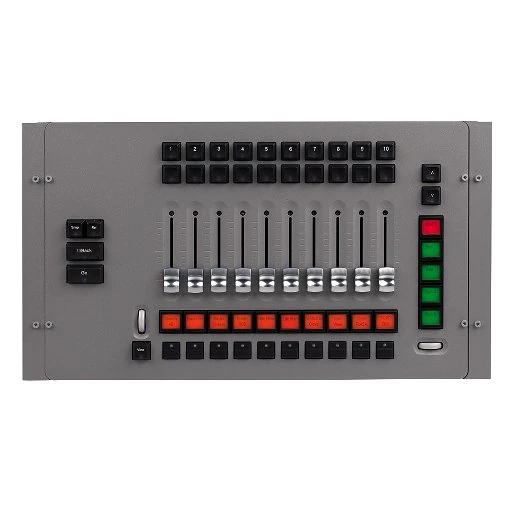

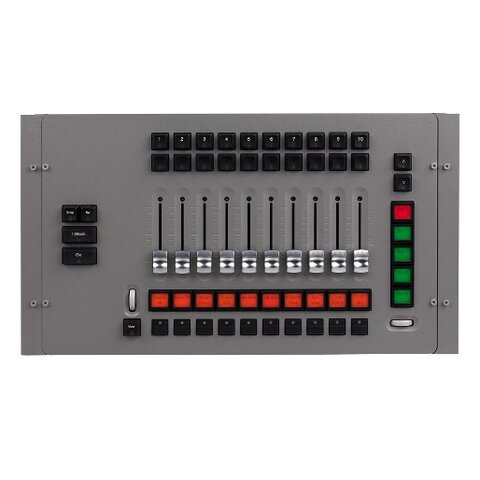

Martin MaxModule Playback

较大的图像

Playback 模块通过增加 10 个电动推子、15 个 LCD 按钮和一个主 Go 部分，扩展了任何 M-Series 调音台的回放功能。最多可向任何 MaxModule Cerebrum、Maxxyz、M-Series 调音台或 M-PC V3 添加 16 个 Playback 模块。

特点

10 个电动播放推子，每个推子配备一个动态标记的 LCD 按钮（用于识别/激活播放）和两个可分配功能的按钮
10 个暂停/返回按钮
10 个 Go 按钮
10 个闪现按钮
5 个带滚轮的 LCD 导航按钮
Master Go 部分
内置 Maxxyz PC 加密狗和 2 个内置 DMX 端口

更多详情

Physical Length: 275 mm Width: 483 mm Height: 128 mm Weight: 4.6 kg

Control/User Interface 10 x motorized playback faders, each with one dynamically labeled LCD button (to identify/activate playback) and two function-assignable buttons: 10 x pause/back buttons: 10 x go buttons: 10 x flash buttons: 5 x LCD navigation buttons with scroll wheel: Master Go section:

Connections Maxxyz/Maxedia multiple controller link USB: Neutrik locking RJ45 Ethercon sockets DMX out: 2 x 5-pin female locking XLR USB input: USB device socket USB devices: USB host socket Desk lamp: 2.5 mm DC bayonet AC power input: 3-pin IEC male socket AC power throughput: 3-pin IEC female socket

Electrical AC power: 100-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch-mode Main fuse: 2 AT (slow blow) Desk lamp output: 12 V AC power output: Unswitched, unfused, max. 6 A

Approvals EU safety: EN 60950 EU EMC: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3 US safety (pending): ANSI/UL 60950-1 Canadian safety (pending): CSA C22.2 No. 60950-1

Included Items Maxxyz PC key (without 3D Visualizer) installed internally: 1.5 m power cable, 3-pin IEC: 11501012 Ethercon patch cable: 11840144 USB cable: 11840066 User manual: 35000223 DVD with Maxxyz PC and Maxxyz Manager software:

Ordering Information MaxModule Playback: 90732180 M-Series™ Empty Frame in Flightcase: 90732120 M-Series™ Empty Frame in Cardboard Box: 90732130

下载

Manuals

	版本	语言	大小	上传日期
Maxxyz Modules user manual 版本 B, 更新: 10月 2020	B		1.4 MB	10月 2020

Compliances

	版本	语言	大小	上传日期
M1 ts, M1 HD, M6, MaxModules - ETL Authorization to Mark 版本 D, 更新: 5月 2018	D		336.9 KB	5月 2018
Maxxyz, Maxxyz Compact, MaxModule Playback, Max Module Submaster, Max Module Button, MaxModule Programmer, MaxModule Cerebrum, M1- ETL Authorization To Mark 版本 B, 更新: 5月 2018	B		26.7 KB	5月 2018
