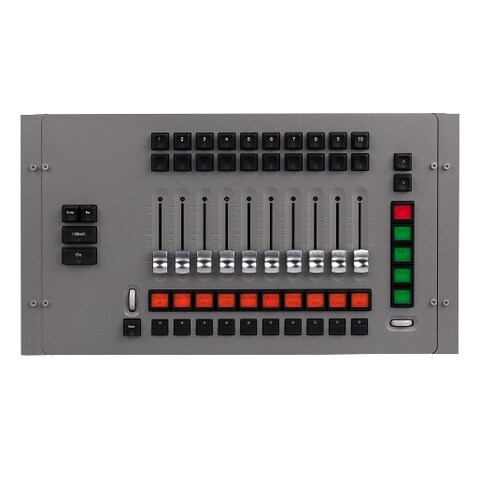

The Playback module extends the playback capabilities of any M-Series console by adding 10 motorized faders with 15 LCD buttons and a master Go section. Up to 16 Playback modules can be added to any MaxModule Cerebrum, Maxxyz, M-Series consoles or M-PC V3.
Larger Images
Features
- 10 x motorized playback faders, each with one dynamically labeled LCD button (to identify/activate playback) and two function-assignable buttons
- 10 x pause/back buttons
- 10 x go buttons
- 10 x flash buttons
- 5 x LCD navigation buttons with scroll wheel
- Master Go section
- Built-in Maxxyz PC dongle and 2 built-in DMX ports
Specifications
Physical Length: 275 mm Width: 483 mm Height: 128 mm Weight: 4.6 kg
Control/User Interface 10 x motorized playback faders, each with one dynamically labeled LCD button (to identify/activate playback) and two function-assignable buttons: 10 x pause/back buttons: 10 x go buttons: 10 x flash buttons: 5 x LCD navigation buttons with scroll wheel: Master Go section:
Connections Maxxyz/Maxedia multiple controller link USB: Neutrik locking RJ45 Ethercon sockets DMX out: 2 x 5-pin female locking XLR USB input: USB device socket USB devices: USB host socket Desk lamp: 2.5 mm DC bayonet AC power input: 3-pin IEC male socket AC power throughput: 3-pin IEC female socket
Electrical AC power: 100-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch-mode Main fuse: 2 AT (slow blow) Desk lamp output: 12 V AC power output: Unswitched, unfused, max. 6 A
Approvals EU safety: EN 60950 EU EMC: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3 US safety (pending): ANSI/UL 60950-1 Canadian safety (pending): CSA C22.2 No. 60950-1
Included Items Maxxyz PC key (without 3D Visualizer) installed internally: 1.5 m power cable, 3-pin IEC: 11501012 Ethercon patch cable: 11840144 USB cable: 11840066 User manual: 35000223 DVD with Maxxyz PC and Maxxyz Manager software:
Ordering Information MaxModule Playback: 90732180 M-Series™ Empty Frame in Flightcase: 90732120 M-Series™ Empty Frame in Cardboard Box: 90732130
