Width: 217.0 mm (8.5 in.) (single or double unit 19” rack-mountable with included rackmount ears)
Height: 44.45 mm (1.75 in.) (rackmount 1U)
Depth: 365.0 mm (14.4 in.)
Weight: 3.5 kg (7.7 lbs.)

Control Protocols: P3, sACN, Art-Net and RDM over Art-Net
Protocol Detection: Automatic
Settings and Feedback: P3 or RDM over Art-Net
Unit identification: User-settable ID number
Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
sACN Compliance: ANSI E1.31 - 2018
Martin P3 Compliance: P3 System Controller Software 6.1.0 or newer
Ethernet Transceiver IN: 100/1000Mbit (with fail-safe bypass to Ethernet THRU)
Ethernet Transceiver THRU: 100/1000Mbit (with fail-safe bypass to Ethernet IN)
Ethernet Transceiver OUT: 100Mbit
Firmware Update: via Ethernet using Martin Companion or P3 System Controller

Power Out Status: 1x Green LED
Ethernet Out Status: 1x Amber LED
Ethernet In/Thru Status 1-2: 2x Green+Amber LED
Device Status: 1x RGB LED
Device test and reset: Pushbutton to call up test patterns on fixtures connected to DCE output and reset device

Fixtures Power Mode: DIP switch to force all connected fixtures in normal power, force all connected fixtures in half power or let controller decide (via P3 or RDM)
Frontpanel Disable: DIP switch to disable all (5) Status LEDs and the pushbutton on the frontpanel

Color: Matte Black
Housing Material: Aluminium
Protection Rating: IP 65
NEMA Enclosure Rating: Type 3
Corrosion Resistance: ISO 12944-6: 2018; C3 Medium, Test regime ISO 9227, 240h

Orientation: Any
Single Unit 19-inch Rackmount: Using supplied short and long rack mounting ears
Dual Unit 19-inch Rackmount: Using supplied coupling plates and short rack mounting ears
Wallmount: Using supplied short rack mounting ears
Trussmount Vertical: Using half-coupler clamp in M10 threaded hole, max. bolt length 20 mm
Trussmount Horizontal: Using halfcouplers in supplied short rack mounting ears
Location: indoor or temporary outdoor

Power In/Thru: Neutrik powerCON TRUE1 TOP
Ethernet In/Thru: 2x Neutrik etherCON TOP
DC Power and Network output: 1x chassis-mount DCE hybrid connector (7pin)
All connections hot plugging compatible

Quantity: 1
Power: 48 VDC / 10 A
Ethernet: 100Mbit (P3, sACN, Art-Net)

AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 2.7 A
Typical earth-leakage current: 0.53 mA
Power Factor: 0.99 @ 100 V / 120 V , 0.98 @ 208 V , 0.97 @ 230 V / 240 V
Max current draw: 5.5 A @ 100 V / 120 V , 3.0 A @ 208 V / 230 V / 240 V
Typical current draw: 5.3 A @ 100 V / 120 V , 2.6 A @ 208 V / 230 V / 240 V *
Power Consumption
Maximum: 500 W
Typical: 480 W *
Idle: 5 W *
Hibernation: 4 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: output at full capacity with all connected fixtures at full output white.
Idle: output at full capacity with all connected fixtures at zero output.
Hibernation: output disabled; wake-up procedure required to re-use fixtures.

Cooling: Convection
Maximum Ambient Temperature (Ta max): 40° C (104° F)
Minimum Ambient Temperature (Ta min): -30° C (-22° F)
Maximum Surface Temperature, steady state, at 40° C ambient: 65° C (149° F)
Typical Heat Dissipation (calculated, +/- 10%): 106 BTU/hr.

VDO Sceptron XB
Exterior Dot-1 Pro (via Exterior DC-Feeder)
Exterior Dot-4 Pro (via Exterior DC-Feeder)
Exterior Dot-9 Pro (via Exterior DC-Feeder)
Exterior Dot-HP Pro

1x Multi-Language Safety & Installation Manual
1x Safety Cable Attachment Eyelet, incl. screws
2x Short Rack Mounting Ears (usable for rack-, wall- and clamp-mounting), incl. screws
1x Long Rack Mounting Ear (usable for rack-mounting), incl. screws
1x Coupling Plate (usable for rack-mounting), incl. screws

P3 PowerPort 2000: P/N MAR-90721200
P3 PowerPort 500 IP Install: P/N MAR-90721202
DCE PSU 240 IP: P/N MAR-90721203
DCE DataSplitterBooster IP: P/N MAR-90721204

Martin Companion Firmware Upload, Addressing and Stand-Alone Programming Software: Free download from www.martin.com

P3-175 System Controller: P/N MAR-90721100
P3-275 System Controller: P/N MAR-90721101
P3-PC System Controller: Free download from www.martin.com

AC Power Input Cables
Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91611797
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91610173

AC Power Linking Cables
Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172

AC Power Connectors
Cable Connector, Neutrik powerCON TRUE1 TOP Female: P/N 91611789HU
Cable Connector, Neutrik PowerCON TRUE1 TOP Male: P/N 91611788HU

Pre-Assembled Hybrid DCE Cables
DC + Ethernet Cable DCE-DCE 1m: P/N MAR-91700100
DC + Ethernet Cable DCE-DCE 2.5m: P/N MAR-91700101
DC + Ethernet Cable DCE-DCE 5m: P/N MAR-91700102
DC + Ethernet Cable DCE-DCE 10m: P/N MAR-91700103
DC + Ethernet Cable DCE-DCE 25m: P/N MAR-91700104

Bulk Hybrid DCE Cables
DC + Ethernet Cable 100m: P/N MAR-91700105
DC + Ethernet Cable LSZH 100m: P/N MAR-91700106

Field-Installable DCE Connectors
Field-installable Connector DCE Male: P/N MAR-91700107
Field-installable Connector DCE Female: P/N MAR-91700108

Closing Caps for DCE Connectors
Closing Cap Male DCE Connector: P/N MAR-91700109
Closing Cap Female DCE Connector: P/N MAR-91700110

Hybrid DCE Adapters
DC + Ethernet Adapter DCE Male-Male: P/N MAR-91700111
DC + Ethernet Adapter DCE Female-Female: P/N MAR-91700112
DC + Ethernet Adapter EtherCON+Wires to DCE: P/N MAR-91700113
DC + Ethernet Adapter DCE to EtherCON: P/N MAR-91700114

Rigging Accessories
Super Lightweight Half Coupler Rigging Clamp, black: P/N 91602018
G-clamp (suspension with unit hanging downwards only): P/N 91602003
Half-coupler Clamp: P/N 91602005
Quick Trigger Clamp (suspension with unit hanging downwards only): P/N 91602007
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

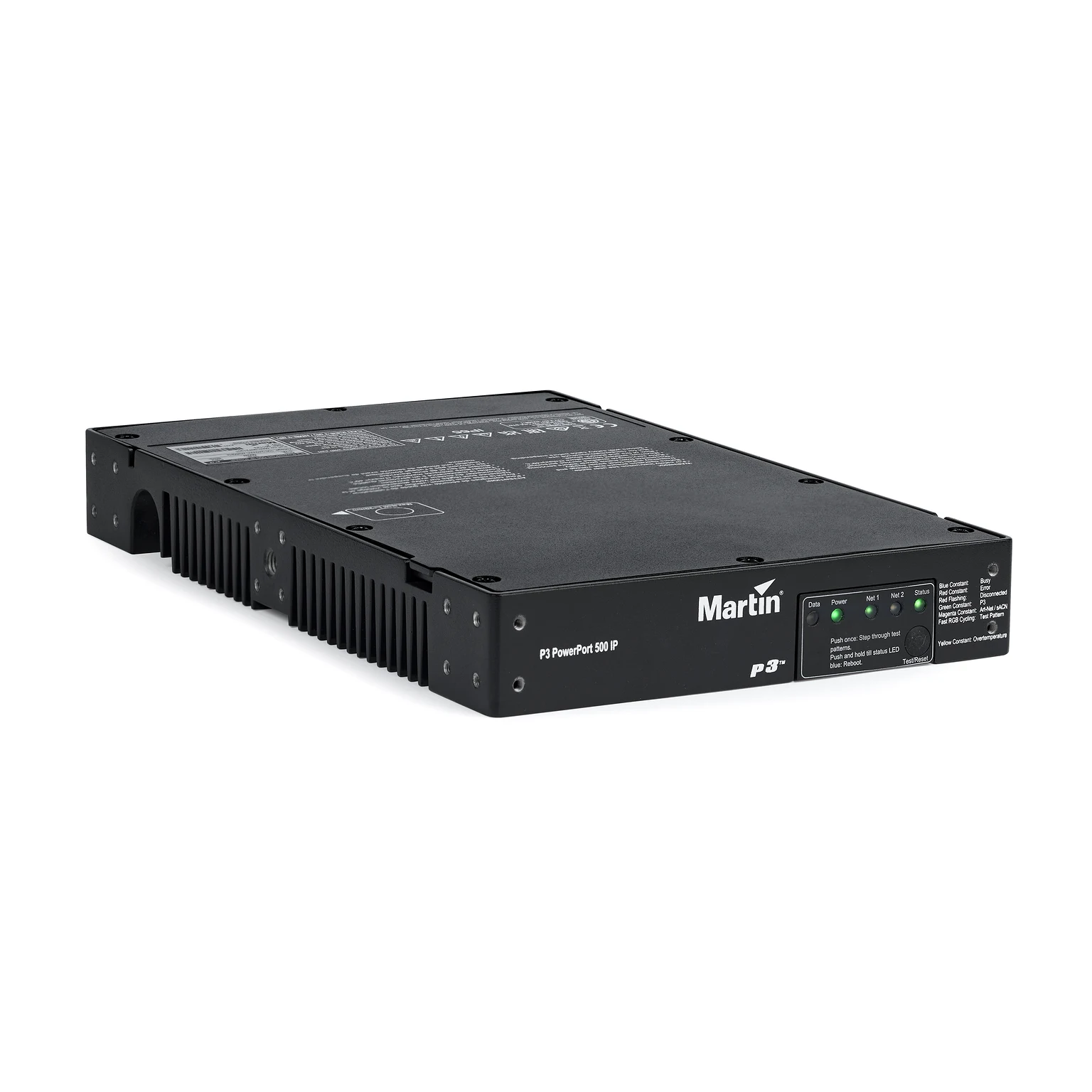

P3 PowerPort 500 IP Rental: P/N MAR-90721201
