Exterior Linear RGBW Graze
Udgået

Outdoor rated RGBW color mixing graze lighting

Exterior Linear RGBW Graze
Større billeder

Begrænset antal tilgængeligt - kontakt venligst din forhandler for information

The Exterior™ Linears er en serie af LED-farveskiftende armaturer i et robust udendørs-monteret hus. The Exterior Linear armaturer leverer høj lysudgang og fås i både cove- og graze-lys versioner.

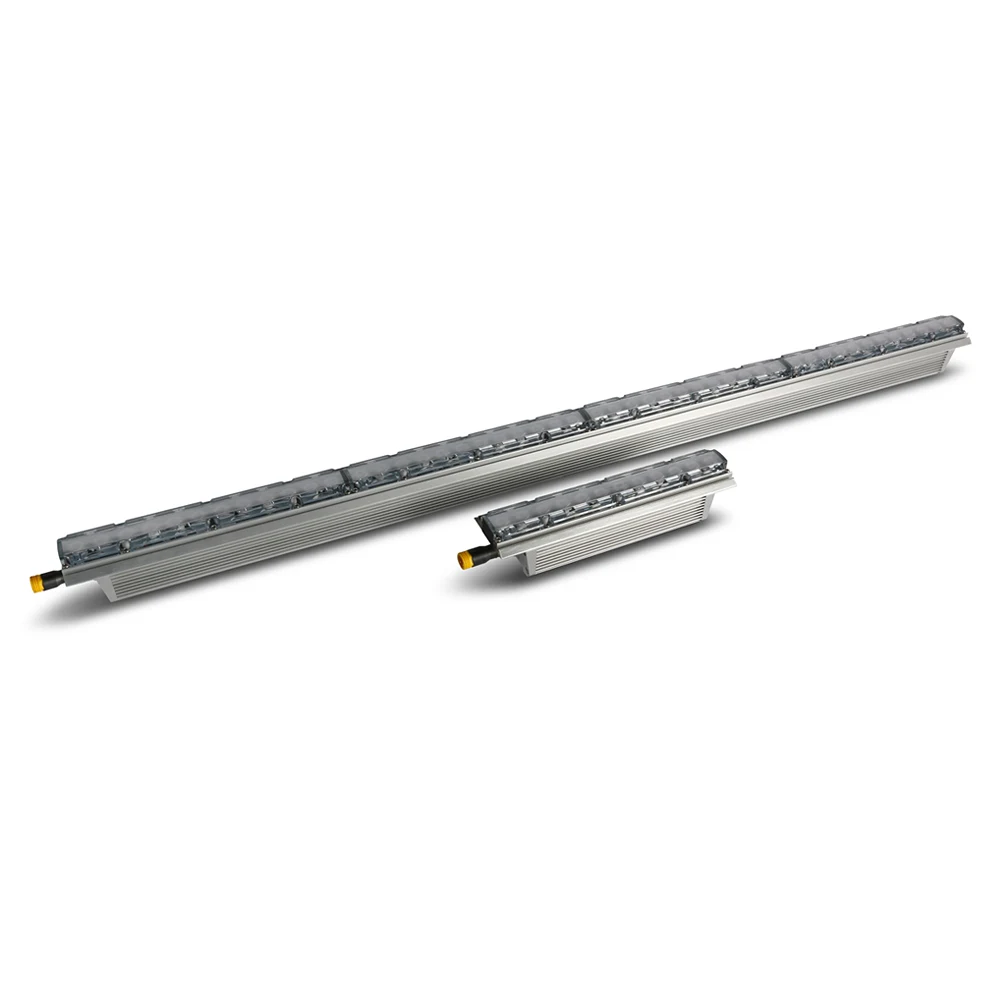

The Exterior™  Linear 1200 Graze RGBW og The Exterior™ Linear 300 Graze RGBW er designet til at belyse vægge eller enhver type lineær struktur og har fremragende farvemix og ensartet lysfordeling i tre forskellige lysvinkler, ideelle til at fremhæve strukturerede overflader.

The Exterior Linear armaturer er DMX-styrbare, nemme at installere takket være deres integrerede universelle strømforsyning og forbindes via daisy chain med en kombineret strøm- og datastik.

Lær mere om vores produktverifikation og -pålidelighed

  • Lineær LED-armatur med meget smal lysstråle mulighed
  • Robust udendørs-armatur fås i to længder
  • Nem installation med integreret strømforsyning

  • Easy infrastructure

    The hybrid connector allows for easy and secture connection either end-to-end or using an extension cable. The in-built power supply allows for of long fixture runs up to 100 ft at 230V

  • Flexible installation

    The hinged mounting bracket allows for flexible installation

  • Sophisticated control

    The smart magnetic tool allows for local status information. The Exterior Linear also features Remote Device Management (RDM) for remote settings and diagnostics.

  • Narrow beam control

    Dynamic color mixing using discreet Red, Green, Blue and neutral White Cree XP-E2 LEDs. This version offers the most narrow beam angle configuration and optimum brightness for large scale graze lighting applications.

featured content

Easy infrastructure

The hybrid connector allows for easy and secture connection either end-to-end or using an extension cable. The in-built power supply allows for of long fixture runs up to 100 ft at 230V

featured content

Flexible installation

The hinged mounting bracket allows for flexible installation

featured content

Sophisticated control

The smart magnetic tool allows for local status information. The Exterior Linear also features Remote Device Management (RDM) for remote settings and diagnostics.

featured content

Narrow beam control

Dynamic color mixing using discreet Red, Green, Blue and neutral White Cree XP-E2 LEDs. This version offers the most narrow beam angle configuration and optimum brightness for large scale graze lighting applications.

Videoer





Funktioner

  • Three beam angle options – including narrow for impressive graze effects.
  • Very low power consumption (max 20 W/ft).
  • No extra control boxes required – connects directly to line voltage and DMX.
  • Internal power and control (DMX, RDM and magnetic tool).
  • Super rugged IP66 housing.
  • 0–100% intensity control.

Specifikationer

  • Physical 300 series (1 ft.) fixtures:

    Length: 305 mm (12.0 in.)
    Width: 72 mm (2.8 in.)
    Height: 99 mm (3.9 in.) including bracket
    Weight: 1.5 kg (3.4 lbs.)

     1200 series (1 ft.) fixtures:

    Length: 1219 mm (48.0 in.)
    Width: 72 mm (2.8 in.)
    Height: 99 mm (3.9 in.) including bracket
    Weight: 6.0 kg (13.3 lbs.)
    Dynamic Effects Intensity: 0 - 100% Color mixing: RGBW
    Control and Programming Control systems: DMX, RDM User interface: Magnetic button to call up fixture status and test fixture Control resolution: 8-bit DMX control of each color DMX channels: 2 - 16 depending on model and mode DMX compliance: USITT DMX512/1990 RDM RDM compliance: ANSI/ESTA E1.20
    Optics Light source: 3 W Cree XP-E2 LEDs Minimum LED lifetime: 50,000 hours (to >70% luminous output)* Beam angle variants:

    Narrow: 12°
    Medium: 18°
    Wide: 70°
    Asymmetric: 74° x 12.5°

     Binning: Tight color and flux binning *Figure obtained under test conditions
    Photometric Data Exterior Linear 300 Graze (Medium):

    Total luminous output: 820 lumens
    Red output: 130 lumens
    Green output: 280 lumens
    Blue output: 40 lumens
    White output: 370 lumens

     Exterior Linear 1200 Graze (Medium):

    Total luminous output: 3280 lumens
    Red output: 520 lumens
    Green output: 1120 lumens
    Blue output: 160 lumens
    White output: 1480 lumens

    CCT: 4000 K (White LED)
    CRI: >70

    * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
    Construction Housing: Aluminum Finish: Clear anodized (standard) or white (optional) Front: Clear polycarbonate with diffuser Protection rating: IP66 IK rating: IK08 Corrosion resistance: C5-M (very high corrosivity / marine, ISO 12944) Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6)
    0,7g RMS Random (IEC 60068-2-64)     RoHS compliant
    Installation Orientation: Any Minimum distance to illuminated surfaces: 0.1 m (0.3 ft.)
    Connections Power/data in/thru: 8-pin custom connectors
  • Electrical AC power: 100-277 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch-mode Maximum total length of fixtures in chain at 120 V: 15.24 meters (50 ft.) Maximum total length of fixtures in chain at 240 V: 30.48 m (100 ft.) Typical half-cycle RMS inrush current: 300 models 0.3 A, 1200 models 0.7 A Surge protection: 4 KV Typical earth-leakage current: 4ft fixture: 0,50 mA, 1ft fixture: 0,15 mA

    Consult local regulations to determine maximum fixture runs
    Typical Power and Current 100-240 V, 50/60 Hz: 20 W per foot +/- 1 W, PF 0.95 +/- 0.05 277 V, 50/60 Hz: 20 W per foot +/- 1 W, PF 0.90 +/- 0.05 Power figures are typical, not maximum. Measurements made at nominal voltage. Allow for +/- 10% deviation. PF = Power factor.
    Thermal Cooling: Convection Maximum ambient temperature (Ta max.): 45° C (113° F) Minimum ambient temperature (Ta min.): -30° C (-22° F) Total heat dissipation (calculated, +/- 10%): 70 BTU/hr. per foot
    Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant Efficacy (max output): 41 lm/W LWR*: 547 lm/kg (241 lm/lb)

    *LWR = Lumen-to-Weight Ratio
    Approvals Global CB Certification/IECEE: IEC 60598-2-5 (IEC 60598-1) EU safety: EN 60598-2-5, EN 60598-2-1, (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55015, EN 55032 (EN 55103-1), EN 55103-2, EN 61547, EN 61000-3-2, EN 61000-3-3 US safety: ANSI/UL 1598 US EMC: 47 CFR Part 15 Class B Canadian safety: CSA C22.2 No. 250.0 Australia/NZ: RCM India: BIS
    Related Items Martin Companion Cable: P/N 91616091 Martin Companion Software Suite (including firmware uploader)
    Accessories Magnetic Test Tool, set of 10: P/N 91610139 Cables:

    Power + Data Input Cable with 8-pin custom connector, 2 m (6.6 ft.), EU: P/N 91611754
    Power + Data Input Cable with 8-pin custom connector, 2 m (6.6 ft.), US: P/N 91611755
    Power + Data Input Cable with 8-pin custom connector, 10 m (32.8 ft.), EU: P/N 91611156
    Power + Data Input Cable with 8-pin custom connector, 10 m (32.8 ft.), US: P/N 91611157
    Power + Data Extension Cable with 8-pin custom connectors, 0.2 m (0.7 ft.), EU: P/N 91611758
    Power + Data Extension Cable with 8-pin custom connectors, 0.2 m (0.7 ft.), US: P/N 91611759
    Power + Data Extension Cable with 8-pin custom connectors, 1 m (3.3 ft.), EU: P/N 91611760
    Power + Data Extension Cable with 8-pin custom connectors, 1 m (3.3 ft.), US: P/N 91611761
    Power + Data Extension Cable with 8-pin custom connectors, 5 m (16.4 ft.), EU: P/N 91611762
    Power + Data Extension Cable with 8-pin custom connectors, 5 m (16.4 ft.), US: P/N 91611763
    Power + Data Extension Cable with 8-pin custom connectors, 10 m (32.8 ft.), EU: P/N 91611764
    Power + Data Extension Cable with 8-pin custom connectors, 10 m (32.8 ft.), US: P/N 91611765
    End Termination Cap for power + data link: P/N 91611766

     Optical:

    Exterior Linear 300 Glare Shield, set of 4: P/N 91611752
    Exterior Linear 1200 Glare Shield, set of 4: P/N 91611753
    Ordering Information Exterior Linear Graze 300 series:

    Exterior Linear 300 Graze, Narrow, RGBW: P/N 90356987
    Exterior Linear 300 Graze, Medium, RGBW: P/N 90356970
    Exterior Linear 300 Graze, Wide, RGBW: P/N 90356971
    Exterior Linear 300 Graze, Asymmetric, RGBW: P/N 90356972

     Exterior Linear Graze 1200 series:

    Exterior Linear 1200 Graze, Narrow, RGBW: P/N 90356986
    Exterior Linear 1200 Graze, Medium, RGBW: P/N 90356980
    Exterior Linear 1200 Graze, Wide, RGBW: P/N 90356981
    Exterior Linear 1200 Graze, Asymmetric, RGBW: P/N 90356982
