Exterior Linear RGBW Graze

Outdoor rated RGBW color mixing graze lighting

Larger Images

The Exterior™ Linears are a series of LED color changing fixtures in a robust outdoor-rated housing. The Exterior Linear fixtures provide high output and are available in both cove and graze light versions.

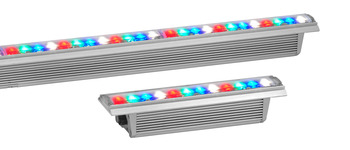

The Exterior™  Linear 1200 Graze RGBW and the Exterior™ Linear 300 Graze RGBW are designed to illuminate walls or any type of linear structure and feature superb color mixing and uniform light distribution at three different beam angles, ideal for highlighting textured surfaces.

The Exterior Linear fixtures are DMX controllable, easy to install due to their integrated universal power supply and connect via daisy chain using a combined power and data connector.

  • Linear LED fixture with very narrow beam option

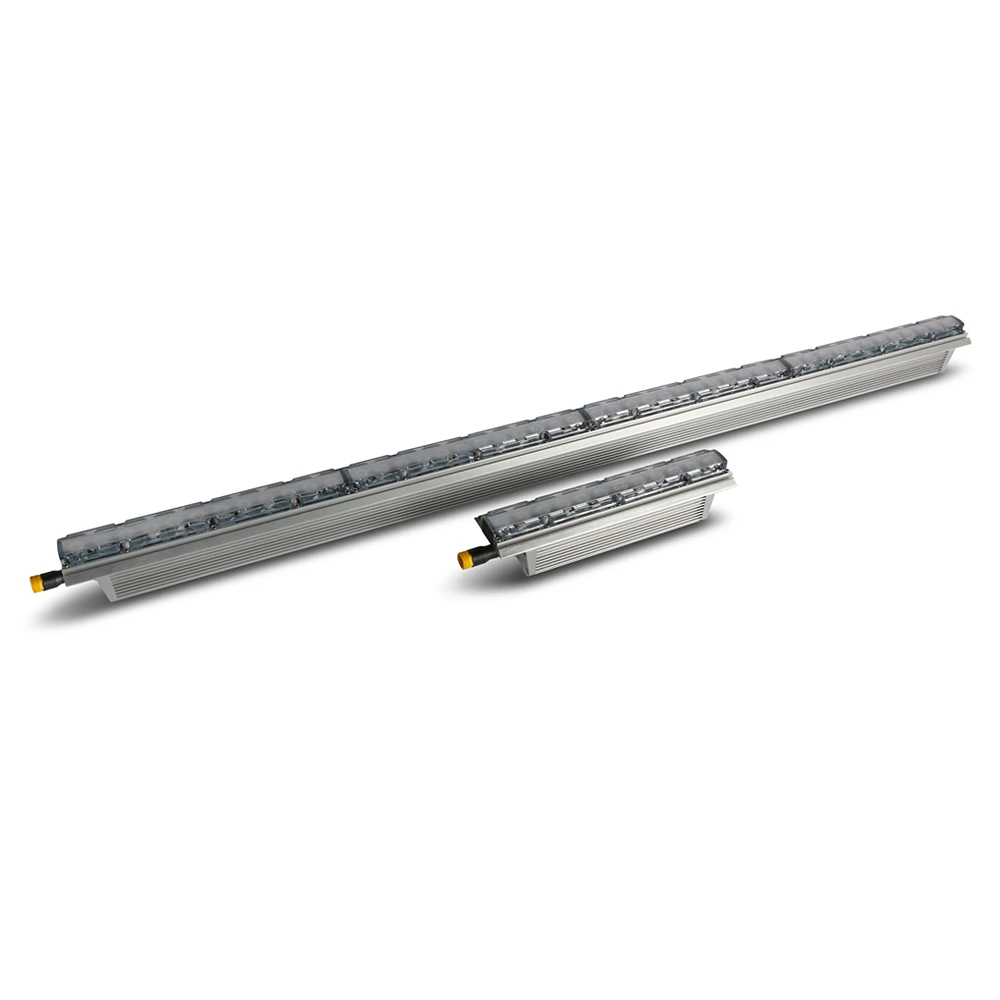

  • Robust outdoor-rated fixture available in two lengths
  • Easy installation with integrated power supply
  • Easy infrastructure

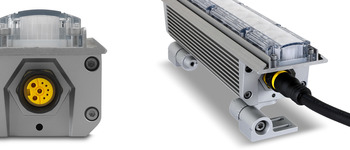

    The hybrid connector allows for easy and secture connection either end-to-end or using an extension cable. The in-built power supply allows for of long fixture runs up to 100 ft at 230V

  • Flexible installation

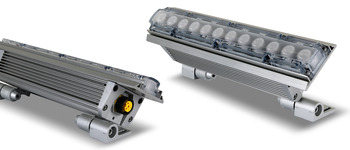

    The hinged mounting bracket allows for flexible installation

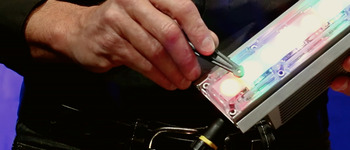

  • Sophisticated control

    The smart magnetic tool allows for local status information. The Exterior Linear also features Remote Device Management (RDM) for remote settings and diagnostics.

  • Narrow beam control

    Dynamic color mixing using discreet Red, Green, Blue and neutral White Cree XP-E2 LEDs. This version offers the most narrow beam angle configuration and optimum brightness for large scale graze lighting applications.

Easy infrastructure

The hybrid connector allows for easy and secture connection either end-to-end or using an extension cable. The in-built power supply allows for of long fixture runs up to 100 ft at 230V

Flexible installation

The hinged mounting bracket allows for flexible installation

Sophisticated control

The smart magnetic tool allows for local status information. The Exterior Linear also features Remote Device Management (RDM) for remote settings and diagnostics.

Narrow beam control

Dynamic color mixing using discreet Red, Green, Blue and neutral White Cree XP-E2 LEDs. This version offers the most narrow beam angle configuration and optimum brightness for large scale graze lighting applications.

Videos

Exterior Linear Product Demonstration



Features

  • Three beam angle options – including narrow for impressive graze effects.
  • Very low power consumption (max 20 W/ft).
  • No extra control boxes required – connects directly to line voltage and DMX.
  • Internal power and control (DMX, RDM and magnetic tool).
  • Super rugged IP66 housing.
  • 0–100% intensity control.

Specifications

  • Physical 300 series (1 ft.) fixtures:

    Length: 305 mm (12.0 in.)
    Width: 72 mm (2.8 in.)
    Height: 99 mm (3.9 in.) including bracket
    Weight: 1.5 kg (3.4 lbs.)

    1200 series (1 ft.) fixtures:

    Length: 1219 mm (48.0 in.)
    Width: 72 mm (2.8 in.)
    Height: 99 mm (3.9 in.) including bracket
    Weight: 6.0 kg (13.3 lbs.)

    Dynamic Effects Color mixing: RGBW Intensity: 0 - 100% Control and Programming Control systems: DMX, RDM Control resolution: 8-bit DMX control of each color User interface: Magnetic button to call up fixture status and test fixture DMX channels: 2 - 16 depending on model and mode DMX compliance: USITT DMX512/1990 RDM RDM compliance: ANSI/ESTA E1.20 Optics Light source: 3 W Cree XP-E2 LEDs Minimum LED lifetime: 50,000 hours (to >70% luminous output)* Beam angle variants:

    Narrow: 12°
    Medium: 18°
    Wide: 70°
    Asymmetric: 74° x 12.5°

    *Figure obtained under test conditions Photometric Data Exterior Linear 300 Graze (Medium):

    Total luminous output: 820 lumens
    Red output: 130 lumens
    Green output: 280 lumens
    Blue output: 40 lumens
    White output: 370 lumens

    Exterior Linear 1200 Graze (Medium):

    Total luminous output: 3280 lumens
    Red output: 520 lumens
    Green output: 1120 lumens
    Blue output: 160 lumens
    White output: 1480 lumens

    Construction Housing: Aluminum Finish: Clear anodized (standard) or white (optional) Front: Clear polycarbonate with diffuser Protection rating: IP66 IK rating: IK08 Corrosion resistance: C5-M (very high corrosivity / marine, ISO 12944) RoHS compliant Installation Orientation: Any Minimum distance to illuminated surfaces: 0.1 m (0.3 ft.)
  • Connections Power/data in/thru: 8-pin custom connectors Electrical AC power: 100-277 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch-mode Maximum total length of fixtures in chain at 120 V: 15.24 meters (50 ft.) Maximum total length of fixtures in chain at 240 V: 30.48 m (100 ft.) Typical half-cycle RMS inrush current: 300 models 0.3 A, 1200 models 0.7 A Surge protection: 4 KV Typical Power and Current 100-240 V, 50/60 Hz: 20 W per foot +/- 1 W, PF 0.95 +/- 0.05 277 V, 50/60 Hz: 20 W per foot +/- 1 W, PF 0.90 +/- 0.05 Power figures are typical, not maximum. Measurements made at nominal voltage. Allow for +/- 10% deviation. PF = Power factor. Thermal Cooling: Convection Maximum ambient temperature (Ta max.): 45° C (113° F) Minimum ambient temperature (Ta min.): -30° C (-22° F) Total heat dissipation (calculated, +/- 10%): 70 BTU/hr. per foot Approvals EU safety: EN 60598-2-5, EN 60598-2-1, (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55015, EN 55032 (EN 55103-1), EN 55103-2, EN 61547, EN 61000-3-2, EN 61000-3-3 US safety: ANSI/UL 1598 (pending) US EMC: 47 CFR Part 15 Class B Canadian safety: CSA C22.2 No. 250.0 (pending) Australia/NZ: RCM (pending) Accessories Magnetic Test Tool, set of 10: P/N 91610139 Cables:

    Power + Data Input Cable with 8-pin custom connector, 2 m (6.6 ft.), EU: P/N 91611754
    Power + Data Input Cable with 8-pin custom connector, 2 m (6.6 ft.), US: P/N 91611755
    Power + Data Input Cable with 8-pin custom connector, 10 m (32.8 ft.), EU: P/N 91611156
    Power + Data Input Cable with 8-pin custom connector, 10 m (32.8 ft.), US: P/N 91611157
    Power + Data Extension Cable with 8-pin custom connectors, 0.2 m (0.7 ft.), EU: P/N 91611758
    Power + Data Extension Cable with 8-pin custom connectors, 0.2 m (0.7 ft.), US: P/N 91611759
    Power + Data Extension Cable with 8-pin custom connectors, 1 m (3.3 ft.), EU: P/N 91611760
    Power + Data Extension Cable with 8-pin custom connectors, 1 m (3.3 ft.), US: P/N 91611761
    Power + Data Extension Cable with 8-pin custom connectors, 5 m (16.4 ft.), EU: P/N 91611762
    Power + Data Extension Cable with 8-pin custom connectors, 5 m (16.4 ft.), US: P/N 91611763
    Power + Data Extension Cable with 8-pin custom connectors, 10 m (32.8 ft.), EU: P/N 91611764
    Power + Data Extension Cable with 8-pin custom connectors, 10 m (32.8 ft.), US: P/N 91611765
    End Termination Cap for power + data link: P/N 91611766

    Optical:

    Exterior Linear 300 Glare Shield, set of 4: P/N 91611752
    Exterior Linear 1200 Glare Shield, set of 4: P/N 91611753

    Ordering Information Exterior Linear Graze 300 series:

    Exterior Linear 300 Graze, Narrow, RGBW: P/N 90356987
    Exterior Linear 300 Graze, Medium, RGBW: P/N 90356970
    Exterior Linear 300 Graze, Wide, RGBW: P/N 90356971
    Exterior Linear 300 Graze, Asymmetric, RGBW: P/N 90356972

    Exterior Linear Graze 1200 series:

    Exterior Linear 1200 Graze, Narrow, RGBW: P/N 90356986
    Exterior Linear 1200 Graze, Medium, RGBW: P/N 90356980
    Exterior Linear 1200 Graze, Wide, RGBW: P/N 90356981
    Exterior Linear 1200 Graze, Asymmetric, RGBW: P/N 90356982

Downloads

  Version Language Size Uploaded
Specifications
Exterior Linear System Diagrams en  291 KB Jun 18, 2019
Exterior Linear RGBW Spec Sheet-English en  511 KB Feb 27, 2019
Exterior Linear Cables en  899 KB May 23, 2018
Manuals
Exterior Linear Series - User Manual en  2.61 MB May 18, 2018
Illustrations
Exterior Linear 300 RGBW 320 CTC–2D dimensions (PDF)     177 KB Jan 16, 2019
Exterior Linear 1200 RGBW 1220 CTC–2D dimensions (PDF)     306 KB Jan 16, 2019
Exterior Linear 300 RGBW 320 CTC–2D dimensions (DWG)     1.32 MB Jan 16, 2019
Exterior Linear 1200 RGBW 1220 CTC–2D dimensions (DWG)     2.51 MB Jan 16, 2019
3D Symbols
Vectorworks Symbols 2.7  en  251 MB Oct 08, 2019
Compliances
Exterior Linear Series - Product Verification and Reliability Report   484 KB May 18, 2018
Exterior Linear Graze Series and Cove Series - ETL Listing Verification   476 KB May 11, 2018
Exterior Linear Graze and Cove Series - Déclaration de Conformité Européenne fr  649 KB May 11, 2018
Exterior Linear Graze and Cove Series - EU Declaration of Conformity en  556 KB May 11, 2018
Software
Exterior Linear Series Firmware       Jan 23, 2019
Service Notes
Exterior products - Performing a vacuum test - Tech note en  1.9 MB May 22, 2018
