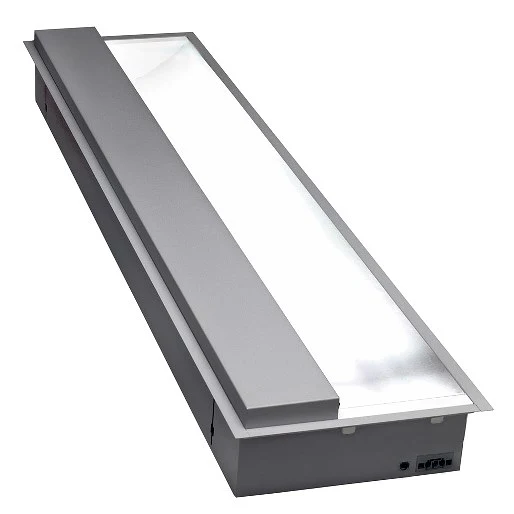

The Cyclo 04 DMX Wallwasher is a recessed fluorescent wallwasher with RGB + W color mixing that generates both white and colored light. Suited to a wide range of commercial applications, it also provides an interesting solution by applying dynamic light in recreation areas and conference rooms.
Μεγαλύτερες εικόνες
Χαρακτηριστικά
- Long lamp life (20 000 hrs)
- 28 W T5 fluorescent tubes
- RGB + W color mixing, variable color temperature
- Even color wallwash distribution with no dark zones
- 0-100% intensity control
- DMX control
- Versatile as floor, ceiling, or wallwasher
Περισσότερες λεπτομέρειες
Physical Length: 1210 mm Width: 290 mm Height: 94 mm Weight: 9 kg
Dynamic Effects Color mixing: RGBW Red: 0 - 100% Green: 0 - 100% Blue: 0 - 100% Cool white (4000 K): 0 - 100%
Control and Programming Control options: DMX, stand-alone, synchronized (host/client) DMX channels: 4 Setting and addressing: DIP switch Protocol: DMX512 Receiver: RS-485
Lamp Type: T5 fluorescent tubes Approved lamps: Osram T5 HE 28 W Average lifetime: 20 000 hours Socket: G5
Installation Indoor orientation: Any (ceiling panel or wall recommended) Minimum free space: 25 mm
Connections Power in/out: Ensto quick connector DMX data in/out: RJ-45
Electrical AC power: 198-240 V, 50/60 Hz
Typical Power and Current 230 V, 50 Hz: 128 W, 0.6 A Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Thermal Maximum ambient temperature (Ta max.): 40° C Minimum ambient temperature (Ta min.): -20° C Cooling: Convection Total heat dissipation (calculated, +/- 10%): 440 BTU/hr.
Approvals EU safety: EN 60598-1, EN 60598-2-2 EU EMC: EN 55015, EN 60555-3
Included Items Osram T5 FH 28 W/60 HE red tube: 97020003 Osram T5 FH 28 W/66 HE green tube: 97020004 Osram T5 FH 28 W/67 HE blue tube: 97020005 Osram T5 FH 28 W/840 HE 4000 K cool white tube: 97020001 User manual: 35000132
Accessories Ensto male connector: 05347202 Ensto female connector: 05327202 RJ-45 patch cable, 250 mm: 11840088 Power interconnect cable, Ensto male/female, 15 cm: 11501019 Osram T5 FH 28 W/827 HE 2700 K warm white tube: 97020000 Osram T5 FH 28 W/865 HE 6500 K daylight white tube: 97020002
Spare Parts Osram T5 FH 28 W/60 HE red tube: 97020003 Osram T5 FH 28 W/66 HE green tube: 97020004 Osram T5 FH 28 W/67 HE blue tube: 97020005 Osram T5 FH 28 W/840 HE 4000 K cool white tube: 97020001
Ordering Information Cyclo 04 DMX Wallwasher: 90550035
Λήψεις
Specifications
| Μέγεθος | |
|
|
20 KB |
Photometric Data
έκδοση A,
ενημέρωση: Μαϊ 2018
|
|
|
|
7 KB |
|
|
10 KB |
Freekie, Mania DC1, Mania DC2, Stage Cyclo, Cyclo 04 DMX Wallwasher- Specifiche
έκδοση B,
ενημέρωση: Οκτ 2020
|
9 KB |
|
|
9 KB |
έκδοση B,
ενημέρωση: Μαϊ 2018
έκδοση B,
ενημέρωση: Νοε 2020
Manuals
| Μέγεθος | |
|
|
100 KB |
|
|
300 KB |
|
|
400 KB |
|
|
300 KB |
Illustrations
| Μέγεθος | |
|
|
40 KB |
Compliances
| Μέγεθος | |
|
|
10 KB |
Hints and Tips
| Μέγεθος | |
|
RJ-45 Connectors
έκδοση A,
ενημέρωση: Μαϊ 2018
|
|
|
Optimizing Cyclo Tube Lifetimes
έκδοση A,
ενημέρωση: Μαϊ 2018
|
|
|
Installing 54 Watt Tubes Will Damage a 28 Watt Cyclo
έκδοση A,
ενημέρωση: Μαϊ 2018
|
|
|
Running Cyclos at Very Low Ambient Temperatures
έκδοση A,
ενημέρωση: Μαϊ 2018
|
