M-Series BriteTouch Screen Module
Διακόπηκε

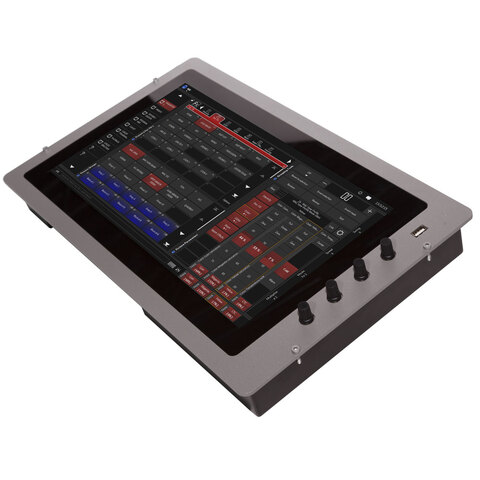

M-Series BriteTouch Screen Module
Μεγαλύτερες εικόνες

Effective 14 March, 2018, Elation Professional has acquired the M-Series range of lighting controllers and software from HARMAN Professional and will now be providing sales and product support. View the announcement from Elation Professional.

The M-Series BriteTouch Screen Module is equipped with a brilliant 15.6”, 4-point, multi-touch display. This is the exact same module as used on the Martin M6 console. It can be used as an external monitor for the M6. The BriteTouch Screen Module also incorporates four of the unique FastDial encoders.

  • 15.6” LCD LED backlit screen with enhanced brightness for sunlight readability
  • 4-point capacitive multi-touch surface
  • 4 x FastDial encoders

Χαρακτηριστικά

  • 15.6” LCD LED backlit screen with enhanced brightness for sunlight readability
  • 4-point capacitive multi-touch surface
  • 4 x FastDial encoders
  • Front-facing USB port
  • DisplayPort input
  • VESA mount

Περισσότερες λεπτομέρειες

PhysicalWidth: 437 mm (17.2 in.)Height: 275 mm (10.9 in.)Depth: 68 mm (2.7 in.)Weight: 4.0 kg (8.9 lbs.)
ConnectionsUSB input: USB device socketDC power input: Molex 8-pin connectorVideo input: DisplayPort
ElectricalDC power: 12 VPower supply unit: Optional PSU or M6 Screen Mount Cable
ApprovalsEU safety: EN 60950EU EMC: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3US safety (pending): ANSI/UL 60950-1Canadian safety (pending): CSA C22.2 No. 60950-1
AccessoriesM6™ Screen Mounting Kit: P/N 91613109
Ordering InformationM-Series™ BriteTouch Screen Module: P/N 91613108
