RUSH MH 6 Wash
Descontinuado

Luminaria de barrido compacta de lente única con mezcla de color RGBW

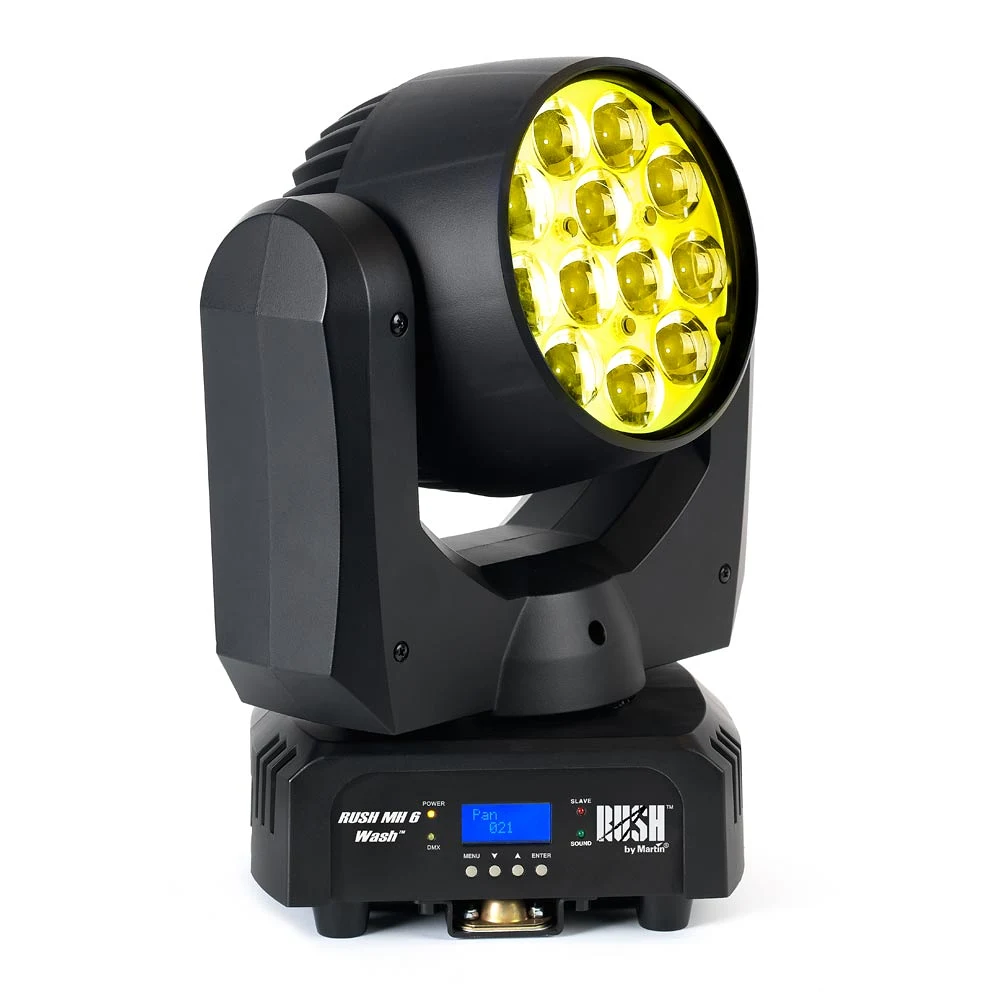

RUSH MH 6 Wash
Imágenes más grandes

El RUSH MH 6 Wash es una adaptación emocionante del popular RUSH PAR 2 RGBW Zoom, que utiliza el mismo motor LED y sistema de zoom, pero además ofrece capacidad de cabezal móvil. El RUSH MH 6 Wash ofrece un sistema de color completamente premezcla a partir de 12 x 10 W LEDs RGBW con un espectacular zoom de 10°–60°. También ofrece atenuación electrónica completa, efectos de estrobo y refrigeración por ventilador controlado por temperatura para un funcionamiento silencioso.

  • Luminaria móvil LED wash de alto brillo
  • 12 x 10 W LEDs RGBW
  • Wash de lente única con color completamente premezcla

Videos





Características

  • 12 x 10 W LED Osram Ostar RGBW
  • Lavador de lente única con color totalmente premezcla
  • Salida de 2.000 lúmenes
  • Zoom de 10°–60°
  • 32 macros de color predefinidas
  • Sistema de refrigeración controlado por temperatura
  • Menú de pantalla digital
  • PowerCON entrada y paso
  • Opciones DMX de 3 y 5 pines

Especificaciones

  • Physical Length: 290 mm (11.4 in.) Ancho: 189 mm (7.4 in.) Altura: 360 mm (14.2 in.) PESO: 7.1 kg (15.7 lbs.)
    Dynamic Effects Color mixing: RGBW Color presets: 36 color presets plus full white, ‘color wheel’ effects Zoom: Motorized Electronic dimming: 0 - 100%, four dimming curve options Strobe and pulse effects: Variable speed and action, random strobe Electronic shutter effect: Instant open and blackout Pan: 540° Tilt: 200°
    Control and Programming Control options: DMX 16-bit fine control: Dimming, pan and tilt DMX address setting: Control panel with LCD display White balance control: RGB adjustment DMX channels: 14 DMX compliance: USITT DMX512/1990
    Optics Zoom range: 10° - 60° Light source: 12 x 10 W RGBW Osram Ostar LEDs Minimum LED lifetime: 50,000 hours (to >70% luminous output)* Binning: Tight color and flux binning *Figure obtained under manufacturer's test conditions.
    Construction Housing: High-impact flame-retardant thermoplastic Color: Black Ingress protection rating: IP20
    Installation Mounting points: One quarter‐turn bracket for rigging clamp Location: Indoor use only, must be fastened to surface or structure Orientation: Any Minimum distance to combustible materials: 100 mm (4 in.) Minimum distance to illuminated surfaces: 200 mm (8 in.) Minimum clearance around fan and air vents: 100 mm (4 in.)
    Connections AC power in, thru: Neutrik PowerCon DMX data in, thru: 3-pin and 5-pin locking XLR
  • Electrical AC power: 100-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch mode Fuse: T 3.15 A Typical half-cycle RMS inrush current: 11.3 A (at 240 VAC) Recommended Miniature Circuit Breaker: Type D*

    *Per IEC 60898/UL489/CSA C22.2 No. 5
    Power consumption figures are typical, not maximum. Allow for +/-10% variation.

    Typical Power and Current 120 V, 60 Hz: 1.3 A, 150 W, PF 0.99 230 V, 50 Hz: 0.7 A, 150 W, PF 0.94 Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
    Thermal Cooling: Forced air (temperature-regulated, low noise) Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 0° C (32° F)
    Approvals EU safety: EN 60598-2-17 (EN605989-1), EN 62471, EN 62493 EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547 US safety: UL 1573, UL 8750 US EMC: CFR Title 47 Part 15 Canadian safety: CSA C22.2 No. 166 Australia/NZ: C-TICK N4241 / RCM
    Included Items

    Power input cable, 6 A, 18 AWG, UL, 0.75 mm2, H05VV-F, 1.5 m (4.9 ft.), without mains plug
    Omega bracket for rigging clamp attachment

    Related Items Martin Companion Cable: P/N 91616091 Martin Companion Software Suite (including firmware uploader): Free download from www.martin.com
    Accessories Power connectors:

    Power Connector PowerCON Male: P/N 91611795
    Power Connector PowerCON Female : P/N 91611794

    Cables, 16 A, for connection to power in chains:

    Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 1.2 m (3.9 ft.): P/N 91611798
    Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 1.2m (3.9 ft.): P/N 91610175
    Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 2.5m (8.2 ft.): P/N 91611799
    Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 2.5m (8.2 ft.): P/N 91610176

    Cables, 16 A, for power input:

    Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800
    Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177
    Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801
    Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178
    (H07RN-F are European approved cables, SJOOW are US approved cables)

    Installation hardware:

    G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
    Quick trigger clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
    Half-coupler clamp: P/N 91602005
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

    Ordering Information RUSH MH 6 Wash™ in cardboard box: P/N 90280080

Descargas

Manuals
  Versión Idioma Tamaño Subido
file type icon RUSH MH 6 Wash - Manuel d'utilisation
fr versión B, actualizado: may 2018
fr  677 KB may 2018
file type icon RUSH MH 6 Wash - User Manual
en versión D, actualizado: may 2018
en  659 KB may 2018
file type icon RUSH MH 6 Wash - Bedienungsanleitung
de versión A, actualizado: may 2018
de  903 KB may 2018
Photometrics
  Versión Idioma Tamaño Subido
file type icon RUSH MH 6 Wash - Photometric Files
en versión A, actualizado: mar 2024
en  170 KB mar 2024
Illustrations
  Versión Idioma Tamaño Subido
file type icon RUSH MH 6 Wash - 2D (PDF)
en versión A, actualizado: may 2018
en  637 KB may 2018
file type icon RUSH MH 6 Wash - 2D (DWG)
en versión A, actualizado: may 2018
en  528 KB may 2018
Symbols
  Versión Idioma Tamaño Subido
file type icon Vectorworks Symbols
en versión 4.6, actualizado: ene 2026
4.6  en  249 MB ene 2026
CAD Drawings
  Versión Idioma Tamaño Subido
file type icon Rush MH 6 Wash - 3D (DWG)
en versión A, actualizado: may 2018
en  4,85 MB may 2018
Compliances
  Versión Idioma Tamaño Subido
file type icon RUSH MH 6 Wash - EU Declaration of Conformity
en versión B, actualizado: mar 2019
en  663 KB mar 2019
file type icon RUSH MH 6 Wash - ETL Listing Verification
en versión A, actualizado: may 2018
en  381 KB may 2018
Service Notes
  Versión Idioma Tamaño Subido
  743 KB oct 2020
Tech Notes
  Tamaño Subido
sep 2017
Hints and Tips
  Versión Idioma Tamaño Subido
Avoiding damage from sunlight and other light sources
en versión B, actualizado: may 2018
B   en    may 2018
Firmware
  Versión Tamaño Subido
download icon for RUSH MH 6 Wash - Firmware RUSH MH 6 Wash - Firmware
versión 2.0, actualizado: jul 2026
2.0   jul 2026
