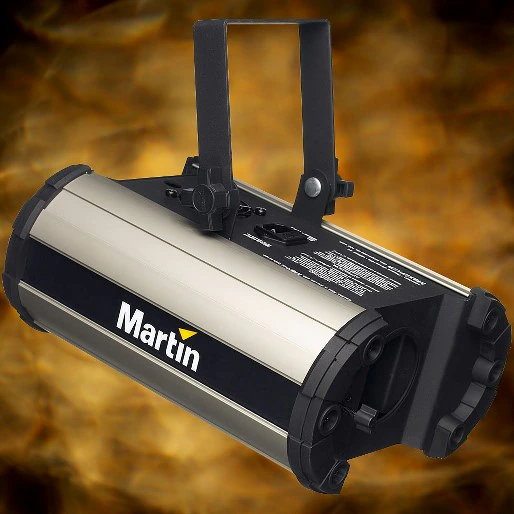

The Mania DC1 is a light fixture that projects brilliant decorative water effects. Ideal for shows, clubs or simply your own personal party, the Mania DC1 will wash liquid light through the crowd, the lounge, across walls and over bars.
Imágenes más grandes
Características
- 100 W halogen lamp
- 800 hour lamp included
- 3 selectable colors plus open and split color option
- Rotating pattern glass for aquatic decoration effects
- Manual focus
- 53° spread angle
- Variable focus, variable effect rotation speed and rotating direction control and color changing on/off
- Continuous operation - no cool down time needed
- All major safety approvals CE, ETL and CETL
- Rigorously tested for total reliability
Más detalles
Physical
Length: 312 mm
Width: 250 mm
Height: 142 mm
Weight: 6.3 kg
Dynamic Effects
Beam effects: Animated water effect
Control and Programming
Control options: Effect rotation direction and speed, color changing on/off
Lamp
Type: 100 W EFP halogen
Fitted as standard: Philips EFP 8H 100 W 12 V (800 hrs.)
Socket: GZ 6.35
Optics
Beam angle: 53°
Manual focus: 2 m - 20 m
Construction
Housing: Steel and aluminum
Installation
Mounting points: Adjustable mounting bracket
Orientation: Any
Connections
AC power input: 3-pin IEC male socket
Electrical
AC power: 115-120/220-240 V, 50/60 Hz, switch-selectable
Main fuse: 2 AT (slow blow)
Typical Power and Current
120 V, 60 Hz: 118 W, 1 A
230 V, 50 Hz: 111 W, 0.5 A
240 V, 50 Hz: 119 W, 0.5 A
Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Thermal
Cooling: Forced air
Maximum ambient temperature (Ta max.): 40° C
Maximum surface temperature, steady state, Ta=40° C: 60° C
Total heat dissipation (calculated, +/- 10%): 410 BTU/hr.
Approvals
US safety: UL 1573
Canadian safety: CSA C22.2 No. 166
EU safety: EN 60598-2-17 + Corr. A2
EU EMC: EN 55 015, EN 55 103-1, EN 61 547
Included Items
Philips EFP/8H 12 V, 100 W lamp: 97000004
Adjustable mounting bracket: 21060390
2 m US power cable, 3 x 18 AWG, with UL approved US power plug (US model): 11501501
3 m EU power cable, 3 x 1 mm2, IEC, Schuko mains plug (EU model): 11501017
3 m EU power cable, 3 x 1 mm2, IEC, no mains plug (EU model): 11501013
User manual: 35000140
Accessories
Half-coupler clamp: 91602005
Spare Parts
Philips EFP/8H 12 V, 100 W lamp : 97000004
2 AT main fuse: 05020009
Ordering Information
Mania DC1, US model: 90430011
Mania DC1, EU model: 90430010
