Mania DC1 (discontinued)

Mania DC1
Larger Images

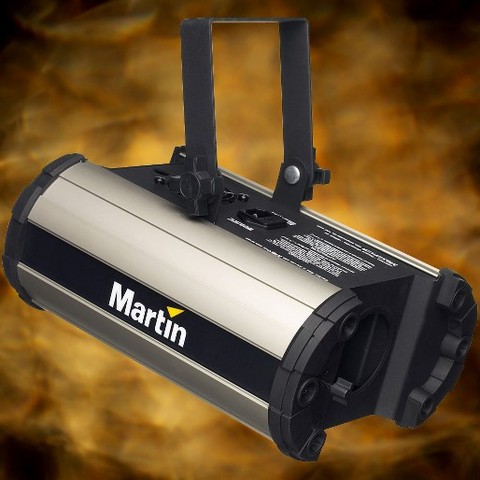

The Mania DC1 is a light fixture that projects brilliant decorative water effects. Ideal for shows, clubs or simply your own personal party, the Mania DC1 will wash liquid light through the crowd, the lounge, across walls and over bars.

Features

  • 100 W halogen lamp
  • 800 hour lamp included
  • 3 selectable colors plus open and split color option
  • Rotating pattern glass for aquatic decoration effects
  • Manual focus
  • 53° spread angle
  • Variable focus, variable effect rotation speed and rotating direction control and color changing on/off
  • Continuous operation - no cool down time needed
  • All major safety approvals CE, ETL and CETL
  • Rigorously tested for total reliability

Specifications

Physical Length: 312 mm Width: 250 mm Height: 142 mm Weight: 6.3 kg
Dynamic Effects Beam effects: Animated water effect
Control and Programming Control options: Effect rotation direction and speed, color changing on/off
Lamp Type: 100 W EFP halogen Fitted as standard: Philips EFP 8H 100 W 12 V (800 hrs.) Socket: GZ 6.35
Optics Beam angle: 53° Manual focus: 2 m - 20 m
Construction Housing: Steel and aluminum
Installation Mounting points: Adjustable mounting bracket Orientation: Any
Connections AC power input: 3-pin IEC male socket
Electrical AC power: 115-120/220-240 V, 50/60 Hz, switch-selectable Main fuse: 2 AT (slow blow)
Typical Power and Current 120 V, 60 Hz: 118 W, 1 A 230 V, 50 Hz: 111 W, 0.5 A 240 V, 50 Hz: 119 W, 0.5 A Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Thermal Cooling: Forced air Maximum ambient temperature (Ta max.): 40° C Maximum surface temperature, steady state, Ta=40° C: 60° C Total heat dissipation (calculated, +/- 10%): 410 BTU/hr.
Approvals US safety: UL 1573 Canadian safety: CSA C22.2 No. 166 EU safety: EN 60598-2-17 + Corr. A2 EU EMC: EN 55 015, EN 55 103-1, EN 61 547
CE ETL C US Intertek
Included Items Philips EFP/8H 12 V, 100 W lamp: 97000004 Adjustable mounting bracket: 21060390 2 m US power cable, 3 x 18 AWG, with UL approved US power plug (US model): 11501501 3 m EU power cable, 3 x 1 mm2, IEC, Schuko mains plug (EU model): 11501017 3 m EU power cable, 3 x 1 mm2, IEC, no mains plug (EU model): 11501013 User manual: 35000140
Accessories Half-coupler clamp: 91602005
Spare Parts Philips EFP/8H 12 V, 100 W lamp : 97000004 2 AT main fuse: 05020009
Ordering Information Mania DC1, US model: 90430011 Mania DC1, EU model: 90430010
