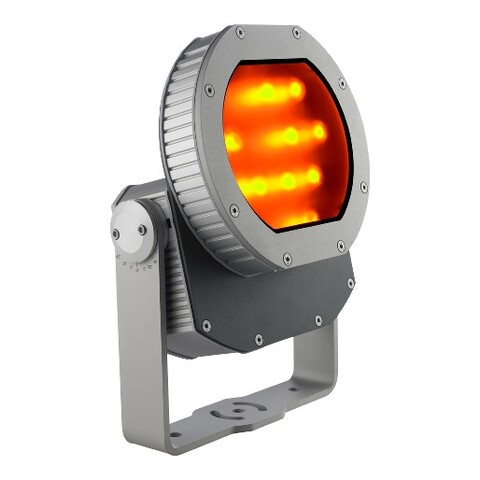

The Exterior 200 LED is a long-life programmable luminaire offering full RGB + Amber and White color mixing. Weatherproofed for outdoor use, it features 44 high power LEDs and a choice of lens options.
Grandes images
Caractéristiques
- 44 high power LEDs in 5 colors: Red, Green, Blue, Amber and white
- RGBAW color mixing, broader range of colors
- Choice of narrow, medium or wide beam options
- High optical performance: uniform distribution of light and color
- 0-100% intensity control
- DMX, stand-alone, synchronized (host/client)
- Choice of DMX control modes: RGB, RGBAW, HSI, HSIC
- Weatherproof rating: IP65
plus de détails
Physical Length: 169 mm including cable gland Width: 307 mm Height: 401 mm Weight: 7.6 kg including bracket
Dynamic Effects Color mixing: RGBAW Red: 0 - 100% Green: 0 - 100% Blue: 0 - 100% Amber: 0 - 100% White: 0 - 100%
Control and Programming Color control modes: RGBAW, RGB, HSI, HSIC Control options: DMX, stand-alone, synchronized (host/client) DMX channels: 3, 4 or 5 DMX address setting: PC with Martin MUM™ software and DABS1™ hardware interface Stand-alone trigger options: Internal timer and/or ambient light level Stand-alone and host/client programming: PC with Martin MUM™ software and DABS1™ hardware interface 26-bit control (internal): RGBAW, RGB, HSI, HSIC Protocol: USITT DMX512-A Receiver: RS-485 Firmware update: Serial upload via DMX link
Optics Light source: Luxeon K2 high power emitters White LED: Neutral white, 3500 - 4500 K, CRI 75 Minimum LED lifetime (to 50% of initial output level): 30 000 hours at full intensity Very Narrow (no diffuser), Narrow, Medium and Wide beam angles available:
Construction Color: Clear anodized, white, custom colors to special order Housing: Anodized aluminum Mounting bracket: 8 mm anodized aluminum Front glass: 6 mm anti-reflection coated Protection rating: IP65
Installation Orientation: Any Mounting: Flat surface at any angle, pedestal or other suitable support Vertical aiming: 330° Minimum distance to illuminated surfaces: 0.1 m
Connections Power cable entry: IP68 cable gland Power connection: 1.8 m cable tail Data cable entry: IP68 cable gland Data connection: 1.8 m combined input + output cable tail
Electrical AC power: 100-240 V nominal, 50/60 Hz Standby power: 13 W Power supply unit: Integrated, auto-sensing multi-voltage Main fuse: 2.5 AT (slow blow)
Typical Power and Current 100 V, 50 Hz: 139 W, 1.4 A, PF 0.990 100 V, 60 Hz: 139 W, 1.4 A, PF 0.989 110 V, 60 Hz: 137 W, 1.3 A, PF 0.988 120 V, 60 Hz: 136 W, 1.2 A, PF 0.986 208 V, 60 Hz: 133 W, 0.7 A, PF 0.932 230 V, 50 Hz: 132 W, 0.7 A, PF 0.925 240 V, 50 Hz: 131 W, 0.7 A, PF 0.886 Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.:
Thermal Cooling: Convection Maximum ambient temperature (Ta max.): 45° C Minimum ambient temperature (Ta min.): -30° C, power must be maintained below 0° C Maximum surface temperature, steady state, Ta=40° C: 90° C Total heat dissipation (calculated, +/- 10%): 860 BTU/hr.
Approvals EU safety: EN 60598-1, EN 60598-2-1, IEC/EN 60825-1 EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3 US safety (US model): UL 1598 Canadian safety (US model): CAN/CSA C.22.2 No. 250
Included Items Adjustable mounting yoke: Narrow diffuser (installed): 41600110 Medium diffuser (supplied with product): 41600111 Wide diffuser (supplied with product): 41600112 User manual: 35000211
Accessories Narrow beam angle kit (diffuser sheet): 41600110 Medium beam angle kit (diffuser sheet): 41600111 Wide beam angle kit (diffuser sheet): 41600112 Exterior 200 floor stand: 91611305 Safety eyebolt: 91611239 3-pin male XLR connector, cable-type, IP65: 91611306 3-pin female XLR connector, cable-type, IP65: 91611307
Related Items Martin DABS1™ USB interface box incl. cables: 90758090
Spare Parts 2.5 AT main fuse: 05020010
Ordering Information Exterior 200 LED, EU Model, Aluminum: 90545000 Exterior 200 LED, EU Model, White: 90545002 Exterior 200 LED, US Model, Aluminum: 90545100 Exterior 200 LED, US Model, White: 90545102 NB: All models now include Narrow diffuser (installed) and Medium and Wide diffusers supplied separately: Custom colors available by special order - please contact your Martin distributor for details:
