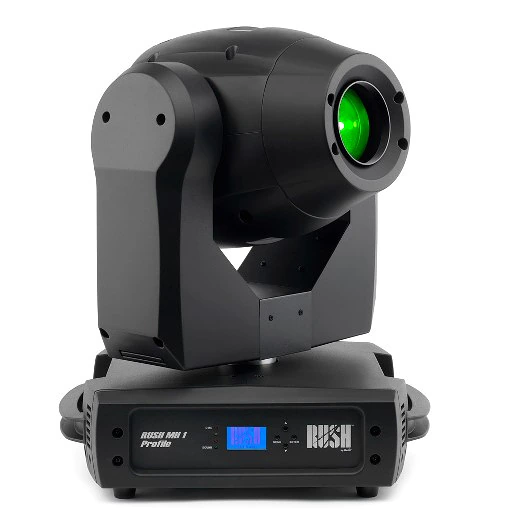

Cette tête mobile LED ultra-brillante à optique efficace produit une variété d'effets et de couleurs à partir de deux roues de gobos et deux roues de couleurs. Pour plus de polyvalence et d'effets, elle intègre également un variateur électronique et un stroboscope, un iris et un prisme à 3 facettes.
Grandes images
Caractéristiques
- LED profile moving head
- Super bright - efficient optics
- Rotating gobo wheel
- Fixed gobo wheel
- 2 x color wheels
- Electronic dimming and strobe
- Iris and 3-facet prism
- 3 & 5 pin XLR
plus de détails
Physical
Length: 418 mm (16.5 in.)
Width: 328 mm (13.0 in.)
Height: 588 mm (23.2 in.)
Weight: 18 kg (39.7 lbs.)
Dynamicweb+Test+Label: Dynamicweb+Test+Text
Dynamic Effects
Color wheel 1: 7 colors plus open, rotation with variable direction and speed
Color wheel 2: 7 colors (incl. 1 x UV, 2 x CTC) plus open, rotation with variable direction and speed
Rotating gobo wheel: 7 gobos plus open, wheel rotation, gobo indexing, rotation and shake
Static gobo wheel: 8 gobos plus open, wheel rotation and shake
Electronic 'shutter' effect: Strobe effect, pulse effects, instant open and blackout
Prism: Indexing and rotation with variable direction and speed
Iris: Motorized
Focus: Motorized
Electronic dimming: 0 - 100%, four dimming curve options
Pan: 540°
Tilt: 270°
Pan and tilt speed: Adjustable via onboard control panel and DMX
Control and Programming
Control options: DMX, stand-alone
DMX channels: 17
Stand-alone trigger options: Music trig, auto trig
Stand-alone sequences: 4 pre-programmed shows
Stand-alone memory: 20 scenes
Music trig sensitivity: Adjustable
Setting and addressing: Control panel with backlit LCD display
DMX compliance: USITT DMX512/1990
Optics
Light source: 180 W LED engine
Minimum LED lifetime: 50 000 hours (to >70% luminous output)*
*Figure obtained under manufacturer's test conditions:
Construction
Color: Black
Housing: High-impact flame-retardant thermoplastic
Protection rating: IP20
Installation
Mounting points: Two quarter-turn brackets for rigging clamps
Location: Indoor use only, must be fastened to surface or structure
Orientation: Any
Connections
AC power in/thru: Neutrik PowerCon
DMX data in/out: 3-pin and 5-pin locking XLR
Electrical
AC power: 100-240 V nominal, 50/60 Hz
Typical total power consumption: 320 W
Power consumption figures are typical, not maximum. Allow for +/-10% variation.:
Typical Power and Current
100 V, 60 Hz: 3.2 A, 320 W
230 V, 50 Hz: 1.5 A, 306 W
Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.:
Thermal
Cooling: Forced air
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 0° C (32° F)
Total heat dissipation (calculated, +/- 10%, at full intensity, full white): 1010 BTU/hr.
Approvals
EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
US safety: UL 1573
US EMC: 47 CFR Part 15 Class A
Canadian safety: CSA C22.2 No. 166
Canadian EMC: ICES-003 Class A
Australia/NZ: RCM
Included Items
Power cable, 1.5 m, without mains plug
Accessories
Cables, 16 A, for connection to power in chains:
Power input cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon input connector, 3 m (9.9 ft.): P/N 11541508
Power relay cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon input connector, 1.4 m (4.6 ft.): P/N 11541509
Power relay cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon input connector, 2.25 m (7.4 ft.): P/N 11541510
Power relay cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon input connector, 3.25 m (10.7 ft.): P/N 11541511
Power connectors:
Neutrik PowerCon NAC3FCA power input connector, cable mount, blue: P/N 05342804
Neutrik PowerCon NAC3FCB power output connector, cable mount, light grey: P/N 05342805
Rigging hardware:
G-clamp: P/N 91602003
Half-coupler clamp: P/N 91602005
DMX termination plug, 3-pin male XLR: P/N 91613017
Safety cable, safe working load 50 kg (110.3 lbs.): P/N 91604003
Related Items
RUSH Software Uploader 1™: P/N 91611399
Ordering Information
RUSH MH 1 Profile™ in cardboard box: P/N 90280000
