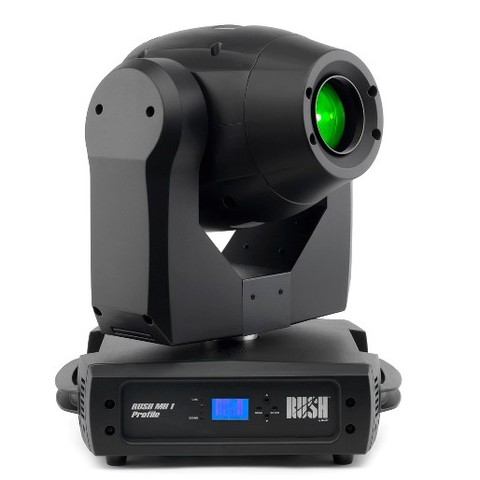

RUSH MH 1 Profile (discontinued)

Rush mh 1 profile large
Larger Images

This super bright LED profile moving head with efficient optics punches out a variety of effects and colors from two gobo wheels and two color wheels. For added versatility and effect, it also houses an electronic dimmer and strobe, iris and 3-facet prism.

Features

  • LED profile moving head
  • Super bright - efficient optics
  • Rotating gobo wheel
  • Fixed gobo wheel
  • 2 x color wheels
  • Electronic dimming and strobe
  • Iris and 3-facet prism
  • 3 & 5 pin XLR

Tech Specs

Physical Length: 418 mm (16.5 in.) Width: 328 mm (13.0 in.) Height: 588 mm (23.2 in.) Weight: 18 kg (39.7 lbs.) Dynamicweb+Test+Label: Dynamicweb+Test+Text
Dynamic Effects Color wheel 1: 7 colors plus open, rotation with variable direction and speed Color wheel 2: 7 colors (incl. 1 x UV, 2 x CTC) plus open, rotation with variable direction and speed Rotating gobo wheel: 7 gobos plus open, wheel rotation, gobo indexing, rotation and shake Static gobo wheel: 8 gobos plus open, wheel rotation and shake Electronic 'shutter' effect: Strobe effect, pulse effects, instant open and blackout Prism: Indexing and rotation with variable direction and speed Iris: Motorized Focus: Motorized Electronic dimming: 0 - 100%, four dimming curve options Pan: 540° Tilt: 270° Pan and tilt speed: Adjustable via onboard control panel and DMX
Control and Programming Control options: DMX, stand-alone DMX channels: 17 Stand-alone trigger options: Music trig, auto trig Stand-alone sequences: 4 pre-programmed shows Stand-alone memory: 20 scenes Music trig sensitivity: Adjustable Setting and addressing: Control panel with backlit LCD display DMX compliance: USITT DMX512/1990
Optics Light source: 180 W LED engine Minimum LED lifetime: 50 000 hours (to >70% luminous output)* *Figure obtained under manufacturer's test conditions:
Construction Color: Black Housing: High-impact flame-retardant thermoplastic Protection rating: IP20
Installation Mounting points: Two quarter-turn brackets for rigging clamps Location: Indoor use only, must be fastened to surface or structure Orientation: Any
Connections AC power in/thru: Neutrik PowerCon DMX data in/out: 3-pin and 5-pin locking XLR
Electrical AC power: 100-240 V nominal, 50/60 Hz Typical total power consumption: 320 W Power consumption figures are typical, not maximum. Allow for +/-10% variation.:
Typical Power and Current 100 V, 60 Hz: 3.2 A, 320 W 230 V, 50 Hz: 1.5 A, 306 W Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.:
Thermal Cooling: Forced air Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 0° C (32° F) Total heat dissipation (calculated, +/- 10%, at full intensity, full white): 1010 BTU/hr.
Approvals EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547 US safety: UL 1573 US EMC: 47 CFR Part 15 Class A Canadian safety: CSA C22.2 No. 166 Canadian EMC: ICES-003 Class A Australia/NZ: RCM
CE ETL C US Intertek Aus
Included Items Power cable, 1.5 m, without mains plug
Accessories Cables, 16 A, for connection to power in chains: Power input cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon input connector, 3 m (9.9 ft.): P/N 11541508 Power relay cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon input connector, 1.4 m (4.6 ft.): P/N 11541509 Power relay cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon input connector, 2.25 m (7.4 ft.): P/N 11541510 Power relay cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon input connector, 3.25 m (10.7 ft.): P/N 11541511 Power connectors: Neutrik PowerCon NAC3FCA power input connector, cable mount, blue: P/N 05342804 Neutrik PowerCon NAC3FCB power output connector, cable mount, light grey: P/N 05342805 Rigging hardware: G-clamp: P/N 91602003 Half-coupler clamp: P/N 91602005 DMX termination plug, 3-pin male XLR: P/N 91613017 Safety cable, safe working load 50 kg (110.3 lbs.): P/N 91604003
Related Items RUSH Software Uploader 1™: P/N 91611399
Ordering Information RUSH MH 1 Profile™ in cardboard box: P/N 90280000
