Martin P3 200 System Controller

រូបភាពធំជាង

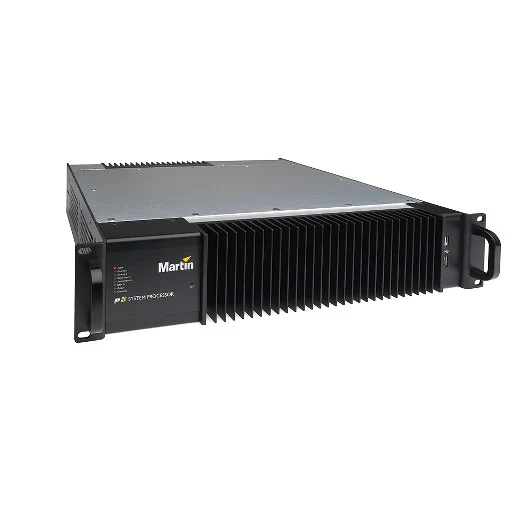

The P3-200 System Controller enables DVI and SDI signals to be mapped onto the entire range of Martin Creative LED products and P3-enabled MAC moving heads, driving up to 520.000 pixels. Featuring the integration with lighting and automation that makes the P3 System Controller family open so much new creative potential.

Most user-friendly LED Video Controller on the market
Compatible with all Martin Creative LED products and P3-enabled MAC moving heads
Integration with lighting controls (DMX, Art-Net, sACN) and automation systems
Drive connected fixtures with video input, DMX controls or a mix of both

លក្ខណៈពិសេស

Drives up to 520.000 pixels
Built-in scaler and mapper
DVI-D input up to 1920x1080
HD-SDI input up to 1920x1080
Built-in GUI (Graphical User Interface) including easy setup wizards
Real time visualization of the video mapping within the GUI (Graphical User interface)
Most user-friendly LED Video processor on the market
Compatible with all Martin Creative LED products and P3-enabled MAC moving heads
Integration with lighting controls (DMX, Art-Net & sACN) and automation systems
All connected products report status and problems back to the controller for easy monitoring and maintenance
Showfiles compatible with all products within the P3 System Controller family (including the P3-PC offline editor)
Connected fixtures can cross-fade or toggle in real-time between video-mapping and DMX (pixel-mapping) control

ព័ត៌មានលម្អិត

Physical Depth: 380 mm (15.0 in.) Width: 482 mm (19.0 in.) Height (rackmount 2U): 90 mm (3.5 in.) Weight: 7.7 kg (17.0 lbs.)

Control/User Interface User interface: SXGA (1280 x 1024) or better monitor (VGA), USB keyboard, USB mouse Device status: Status indicator LEDs

DVI Video Input Supports all resolutions up to 1920x1080 Supports RGB and progressive scan only

SDI Video Input 1 x SD-SDI 525/60 (NTSC) or 625/50 (PAL) per SMPTE 259M 1 x HD-SDI 720p per SMPTE 296M or 1080i per SMPTE 292M 1 x 3G-SDI per SMPTE 424M (compatible with level A sync only)

Video Processing Controller pixel processing capacity: 520 000 pixels (expandable by adding P3-200s)* Controller fixture capacity: 1000 fixtures (expandable by adding P3-200s) Maximum workspace area: 1 310 720 pixels Maximum active capture area: 1 048 576 pixels System processing depth: 16 bits per color (48 bits per pixel) System latency, DVI: 2 frames System latency, SDI progressive: 2 frames System latency, SDI interlaced: 3 frames Latency between first and last panel: None Image rotation Scaling (global and mixed pixel pitch) De-interlacing Gamma curve selection and adjustment Real-time panel content remapping Real-time color temperature and color space control Real-time preview of video input and mapped canvas DMX 512 / Art-Net / sACN real-time controllable parameters Up to 4 universes of Art-Net and/or sACN input* Global intensity RGB intensity Color temperature X-Y video image position Video image rotation Freeze Blackout Test pattern selection Preset recall (incl. video input selection and scaling) Kinesys K2 / Tait Navigator real-time controllable parameters X-Y video image position Video image rotation *See also P3 System Controller Capacity Info Note on Support & Downloads page

P3 Signal Protocol Signal type: Gigabit Ethernet Protocol: Proprietary Martin P3 Hot pluggable: Yes, electrically isolated at all connections Cable type: Ethernet, shielded, CAT 5e or better Cable length: Up to 100 m (328 ft.) between any 2 devices, extendable with Ethernet switch Max. number of panels per line: 50, extendable with Ethernet switch

Construction Housing: Steel and aluminum Color: Matt black Protection rating: IP20

Installation Mounting: 19-inch rackmount (2U) or free-standing

Connections Power input: IEC socket P3 data in/out: etherCON socket DVI video in: DVI-D (via DVI-I connector) SDI video in: 1 x BNC SDI video thru: 1 x BNC Network (remote management, Art-Net, sACN and Kinesys K2/Vector): etherCON socket DMX in: 5-pin locking XLR Peripherals and USB memory devices: 4 x USB 2.0 ports User interface monitor: VGA Serial data (not used): RS-232 via DB9 connector

Electrical AC power: 115-250 V, 47-63 Hz Power supply unit: Integrated, universal multi-voltage Main fuse: 2A, T (slow blow)

Thermal Cooling: Forced air Maximum ambient temperature (Ta max.): 50° C (122° F) Minimum ambient temperature (Ta min.): 0° C (32° F) Total heat dissipation (calculated, +/- 10%): 685 BTU/hr.

Approvals EU safety: EN 60950-1 EU EMC: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3, EN 6100-4-2, EN 6100-4-3, EN 6100-4-4, EN 6100-4-5, EN 6100-4-6, EN 6100-4-11 US safety: ANSI/UL 60950-1 Canadian safety: CAN/CSA C22.2 No. 60950-1

Included Items EU-type power cable with Schuko connector US-type power cable UK-type power cable

Related Items Martin P3-100™ System Controller: P/N 90721010 Martin P3-300™ System Controller: P/N 90721060 Martin P3-PC™ System Controller: Free download from martin.com

Ordering Information Martin P3-200™ System Controller: P/N 90721020
