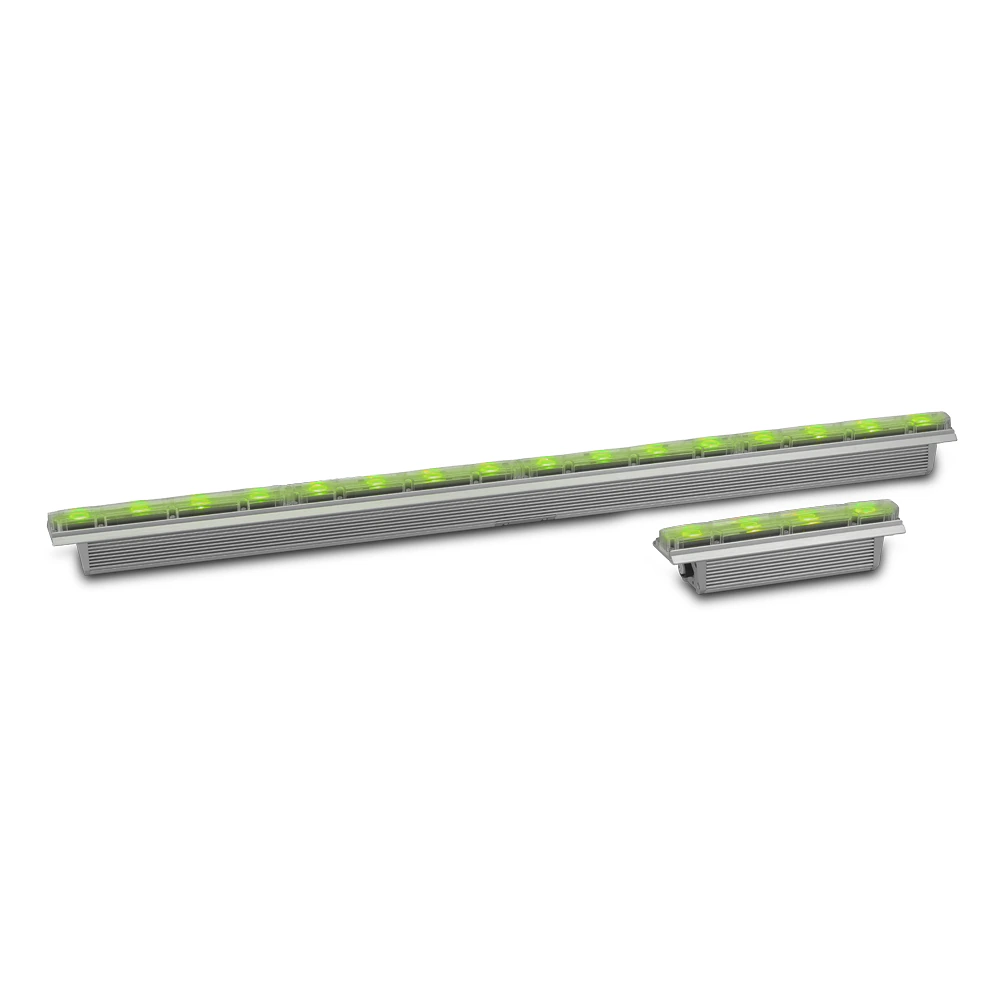

• Physical 310 series (1 ft.) fixtures:

  Length: 305 mm (12.0 in.)
  Width: 72 mm (2.8 in.)
  Height: 101 mm (4.0 in.) including bracket
  Weight: 1.5 kg (3.4 lbs.)

  1210 series (4 ft.) fixtures:

  Length: 1219 mm (48.0 in.)
  Width: 72 mm (2.8 in.)
  Height: 101 mm (4.0 in.) including bracket
  Weight: 6.0 kg (13.3 lbs.)

  Dynamic Effects Intensity: 0 - 100% Color mixing: RGBW
  Control and Programming Control systems: DMX, RDM User interface: Magnetic button to call up fixture status and test fixture Control resolution: 8-bit DMX control of each color DMX channels: 2 - 16 depending on model and mode DMX compliance: USITT DMX512/1990 RDM RDM compliance: ANSI/ESTA E1.20
  Optics Light source: Quad-color Osram OSTAR Minimum LED lifetime: 50,000 hours (to >70% luminous output)* Beam angle variants: Narrow: 15° Wide: 62° Asymmetric: 17° x 67° Binning: Tight color and flux binning

  *Figure obtained under manufacturer's test conditions

  Photometric Data CCT: White Light LED 6500K Exterior Linear 310 QUAD Graze:

  Total luminous output: 705 lumens
  Red output: 174 lumens
  Green output: 435 lumens
  Blue output: 102 lumens
  White output: 615 lumens

  Exterior Linear 1210 QUAD Graze:

  Total luminous output: 2820 lumens
  Red output: 696 lumens
  Green output: 1740 lumens
  Blue output: 407 lumens
  White output: 2460 lumens

  * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

  Construction Housing: Aluminum Front: Clear polycarbonate with diffuser Protection rating: IP66 IK rating: IK08 Corrosion resistance: C5-M (very high corrosivity / marine, ISO 12944) Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6)
  0,7g RMS Random (IEC 60068-2-64) RoHS compliant
  Installation Orientation: Any Minimum distance to illuminated surfaces: 0.1 m (0.3 ft.)
  Connections Power/data in/thru: 8-pin custom connectors
• Electrical AC power: 100-277 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch-mode Maximum total length of fixtures in chain at 120 V: 15.24 meters (50 ft.)* Maximum total length of fixtures in chain at 240 V: 30.48 m (100 ft.)* Typical half-cycle RMS inrush current: 0.3 A, 1210 QUAD models 0.7 A Maximum total length of fixtures at 120V: 15.2 m / 50 ft Maximum total length of fixtures at 240V: 30.5 m / 100 ft Maximum total length of fixtures at 277V: 100 m / 328 ft Maximum total cable length at 120V: 70 m / 230 ft Maximum total cable length at 240V: 100 m / 328 ft Surge protection: 4 KV Typical earth-leakage current: 4ft fixture: 0,50 mA, 1ft fixture: 0,15 mA

  *Consult local regulations to determine maximum fixture runs

  Typical Power and Current 100-240 V, 50/60 Hz: 20 W per foot +/- 1 W, PF 0.95 +/- 0.05 277 V, 50/60 Hz: 20 W per foot +/- 1 W, PF 0.90 +/- 0.05 Power figures are typical, not maximum. Measurements made at nominal voltage. Allow for +/- 10% deviation. PF = Power factor.
  Thermal Cooling: Convection Maximum ambient temperature (Ta max.): 45° C (113° F)* Minimum ambient temperature (Ta min.): -30° C (-22° F) Total heat dissipation (calculated, +/- 10%): 70 BTU/hr. per foot *Above this temperature, the fixture regulates output to protect from overheating.
  Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant Efficacy (max output): 35 lm/W LWR*: 470 lm/kg (207 lm/lb)

  ^*LWR = Lumen-to-Weight Ratio

  Approvals Global CB Certification/IECEE: IEC 60598-2-5 (IEC 60598-1) EU safety: EN 60598-2-5, EN 60598-2-1, (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55015, EN 55032 (EN 55103-1), EN 55103-2, EN 61547, EN 61000-3-2, EN 61000-3-3 US safety: ANSI/UL 1598 US EMC: 47 CFR Part 15 Class B Canadian safety: CSA C22.2 No. 250.0 Australia/NZ: RCM India: BIS
  Related Items Martin Companion Cable: P/N 91616091 Martin Companion Software Suite (including firmware uploader)
  Accessories Magnetic Test Tool, set of 10: P/N 91610139 Cables:

  Power + Data Input Cable with 8-pin custom connector, 2 m (6.6 ft.), EU: P/N 91611754
  Power + Data Input Cable with 8-pin custom connector, 2 m (6.6 ft.), US: P/N 91611755
  Power + Data Input Cable with 8-pin custom connector, 10 m (32.8 ft.), EU: P/N 91611156
  Power + Data Input Cable with 8-pin custom connector, 10 m (32.8 ft.), US: P/N 91611157
  Power + Data Extension Cable with 8-pin custom connectors, 0.2 m (0.7 ft.), EU: P/N 91611758
  Power + Data Extension Cable with 8-pin custom connectors, 0.2 m (0.7 ft.), US: P/N 91611759
  Power + Data Extension Cable with 8-pin custom connectors, 1 m (3.3 ft.), EU: P/N 91611760
  Power + Data Extension Cable with 8-pin custom connectors, 1 m (3.3 ft.), US: P/N 91611761
  Power + Data Extension Cable with 8-pin custom connectors, 5 m (16.4 ft.), EU: P/N 91611762
  Power + Data Extension Cable with 8-pin custom connectors, 5 m (16.4 ft.), US: P/N 91611763
  Power + Data Extension Cable with 8-pin custom connectors, 10 m (32.8 ft.), EU: P/N 91611764
  Power + Data Extension Cable with 8-pin custom connectors, 10 m (32.8 ft.), US: P/N 91611765
  End Termination Cap for power + data link: P/N 91611766

  Optical:

  Exterior Linear 300 Series Glare Shield, set of 4: P/N 91611752
  Exterior Linear 1200 Series Glare Shield, set of 4: P/N 91611753
  Exterior Linear 310/1210 QUAD Graze Louvre, set of 4: P/N 91611850

  Ordering Information Exterior Linear 1210 Quad Graze:

  Exterior Linear 1210 QUAD Graze, Narrow: P/N MAR-90356993
  Exterior Linear 1210 QUAD Graze, Wide: P/N MAR-90356994
  Exterior Linear 1210 QUAD Graze, Asymmetric: P/N MAR-90356995

  Exterior Linear 310 Quad Graze:

  Exterior Linear 310 QUAD Graze, Narrow: P/N MAR-90356990
  Exterior Linear 310 QUAD Graze, Wide: P/N MAR-90356991
  Exterior Linear 310 QUAD Graze, Asymmetric: P/N MAR-90356992

•
